Multiple distributor

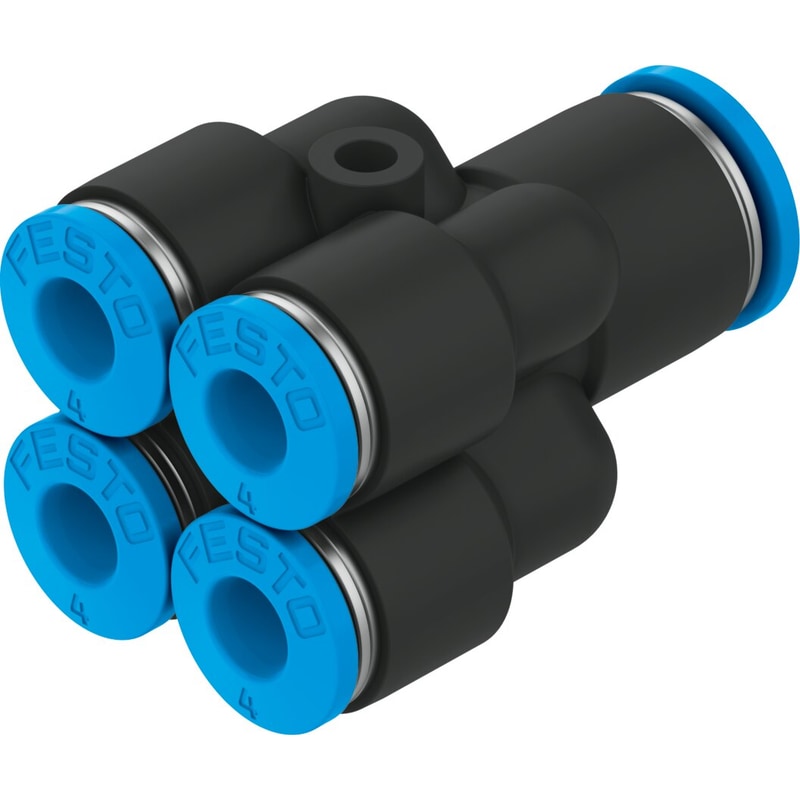

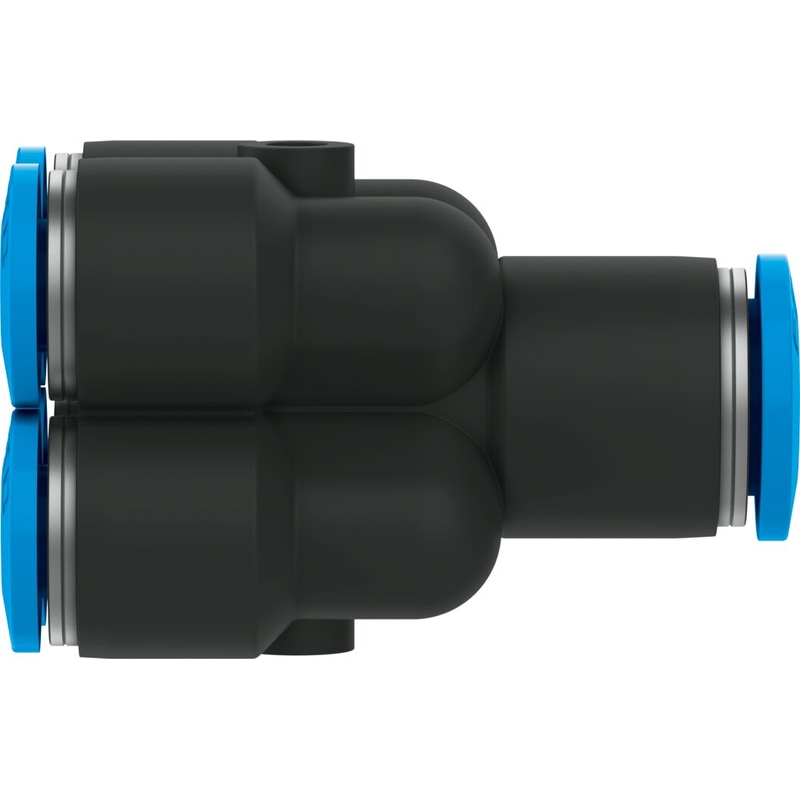

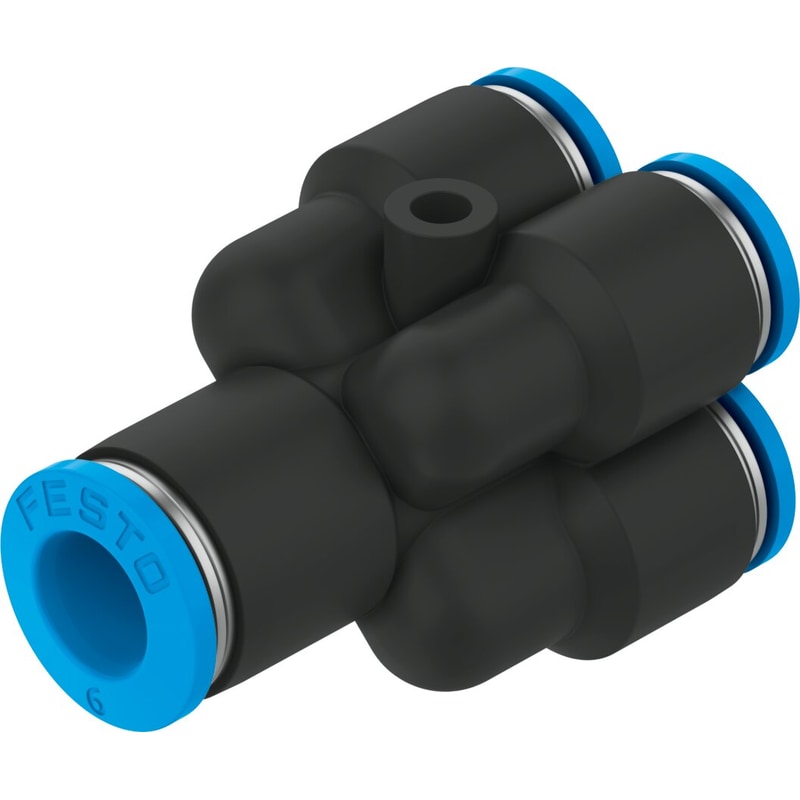

QSQ-6-4 multiple distributor
153209
GTIN 4052568032937
Vendor Festo
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- No. of supply lines
- 1
- No. of outlets
- 4
Regular price
$7.73
Unit price
QSQ-6-4 multiple distributor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSQ-6-4 multiple distributor
Regular price
$7.73
Unit price
QSQ-6-4 multiple distributor is backordered and will ship as soon as it is back in stock.
multiple distributor QSQ-6-4 360° orientable, 4 outlets. Size=Standard, Nominal size=1,4 mm, Assembly position=Any, Design structure=Push/pull principle, Container size=1
| Fitting Type | Multiple Distributor |
|---|---|
| Size | Standard |
| Nominal size | 1.4 mm |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 14 g |
| Number of outputs | 4 |
| Number of supply lines | 1 |
| connection 1 | 6mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 4 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
