Multiple distributor

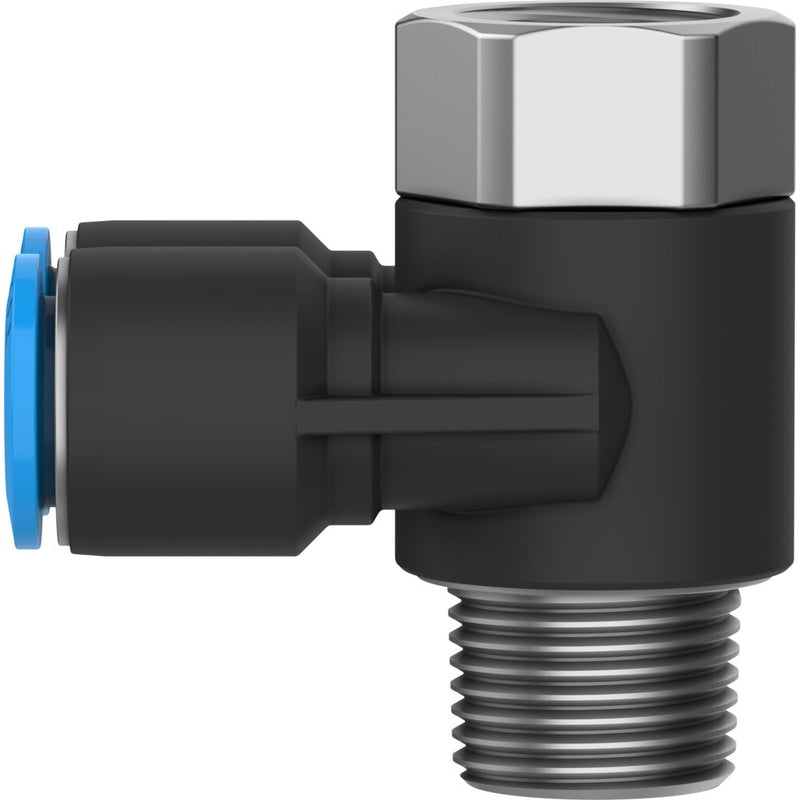

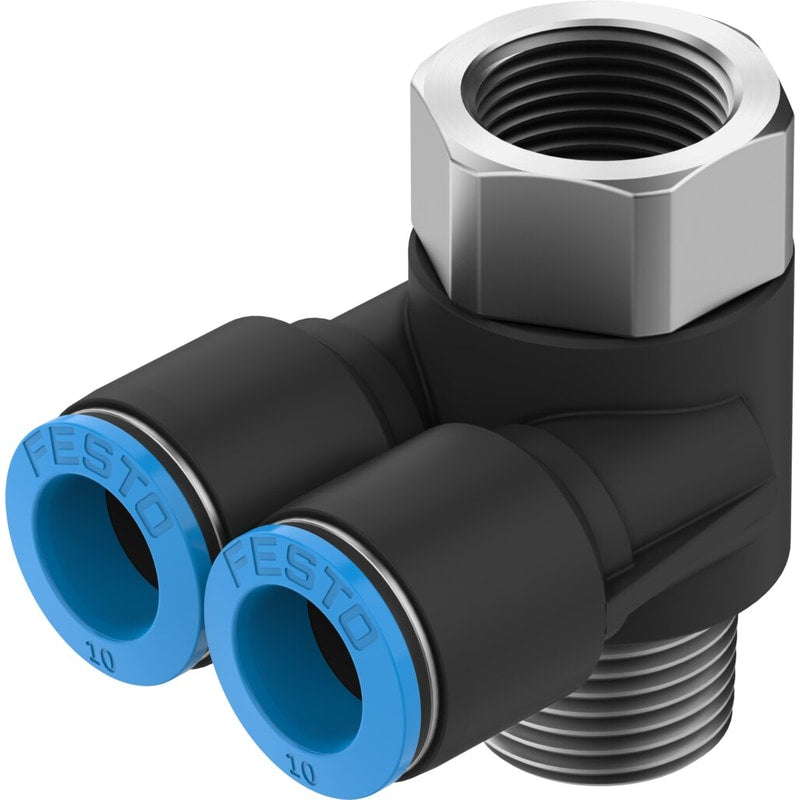

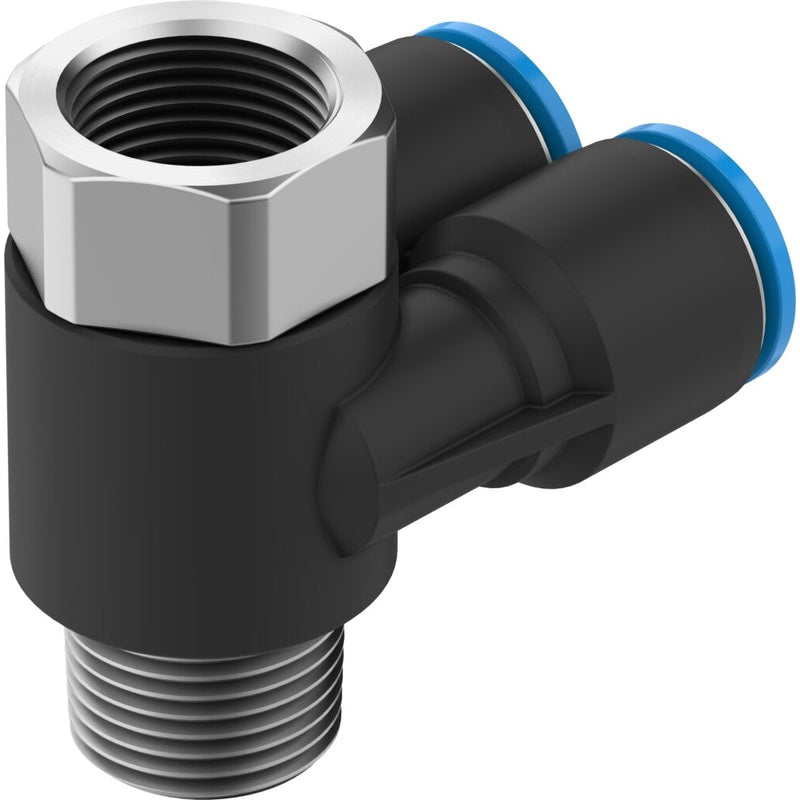

QSYTF-3/8-10-B multiple distributor
153198
GTIN 4052568032821
Vendor Festo
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- No. of supply lines
- 1
- No. of outlets
- 3
Regular price
$13.57
Unit price
QSYTF-3/8-10-B multiple distributor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSYTF-3/8-10-B multiple distributor
Regular price
$13.57
Unit price
QSYTF-3/8-10-B multiple distributor is backordered and will ship as soon as it is back in stock.
multiple distributor QSYTF-3/8-10-B 360° orientable, male and female thread with external hexagon. Size=Standard, Nominal size=5,5 mm, Type of seal on screw-in stud=coating, Assembly position=Any, Design structure=Push/pull principle
| Fitting Type | 2 Tier Female Banjo |
|---|---|
| Size | Standard |
| Nominal size | 5.5 mm |
| Type of seal on screw-in stud | coating |
| Assembly position | Any |
| Design structure | Push/pull principle |
| Container size | 1 |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 72 g |
| Number of outputs | 3 |
| Number of supply lines | 1 |
| connection 1 | Male thread R3/8 |
| connection 2 | Female thread G3/8For tubing outside diameter 10 mm |
| Colour of release ring | blue |
