Bulkhead push-in fitting

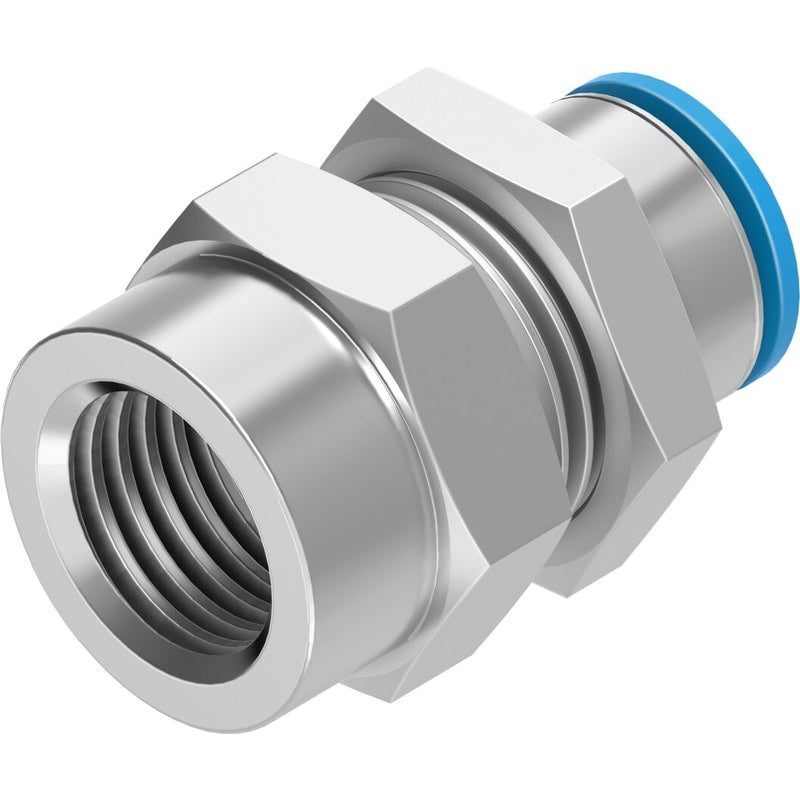

QSSF-1/2-12-B push-in bulkhead fitting
153171
GTIN 4052568032555
Vendor Festo
- Pneumatic connection 1
- Internal thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 11 mm
Regular price
$13.57
Unit price
QSSF-1/2-12-B push-in bulkhead fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QSSF-1/2-12-B push-in bulkhead fitting
Regular price
$13.57
Unit price
QSSF-1/2-12-B push-in bulkhead fitting is backordered and will ship as soon as it is back in stock.
push-in bulkhead fitting QSSF-1/2-12-B with female thread. Size=Standard, Nominal size=11 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Female Bulkhead |
|---|---|
| Size | Standard |
| Nominal size | 11 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 70 g |
| connection 1 | Female thread G1/2 |
| connection 2 | 12mm outside diameter, for tubing |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
| Material housing | BrassNickel plated |
| Material release ring | POM |
