Push-in T-connector

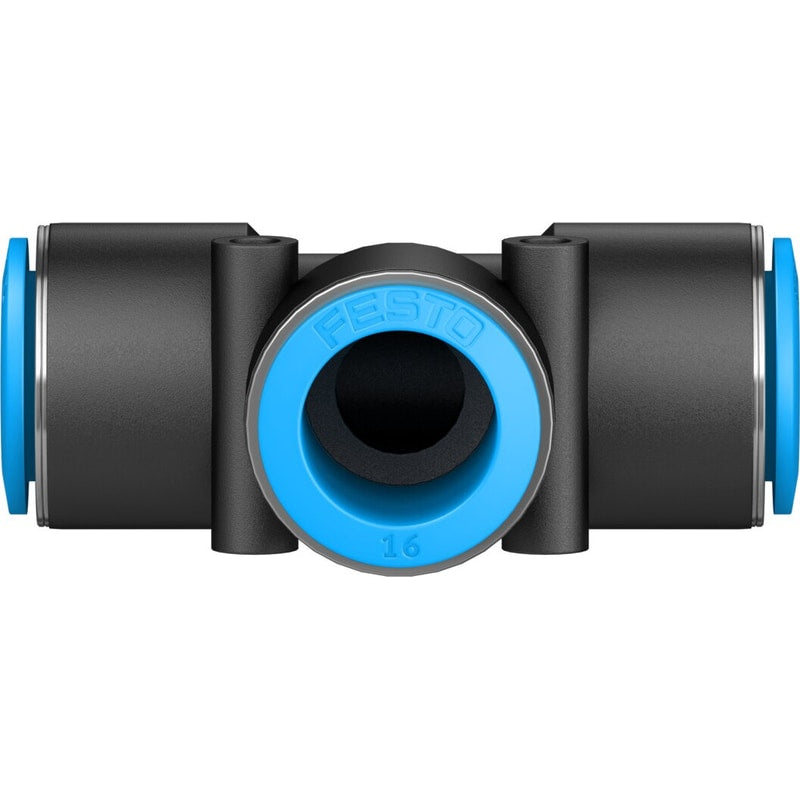

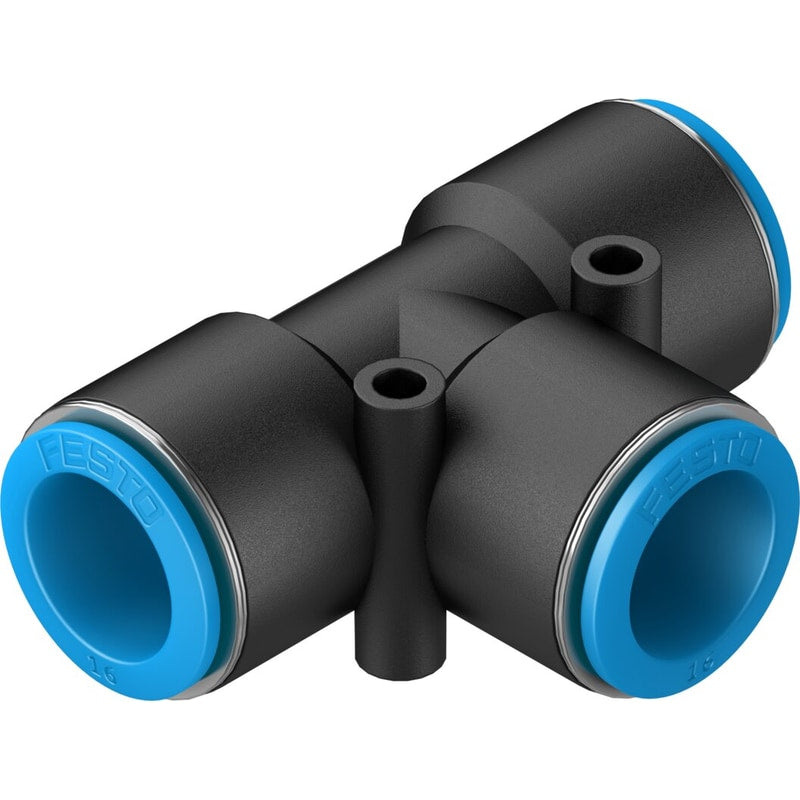

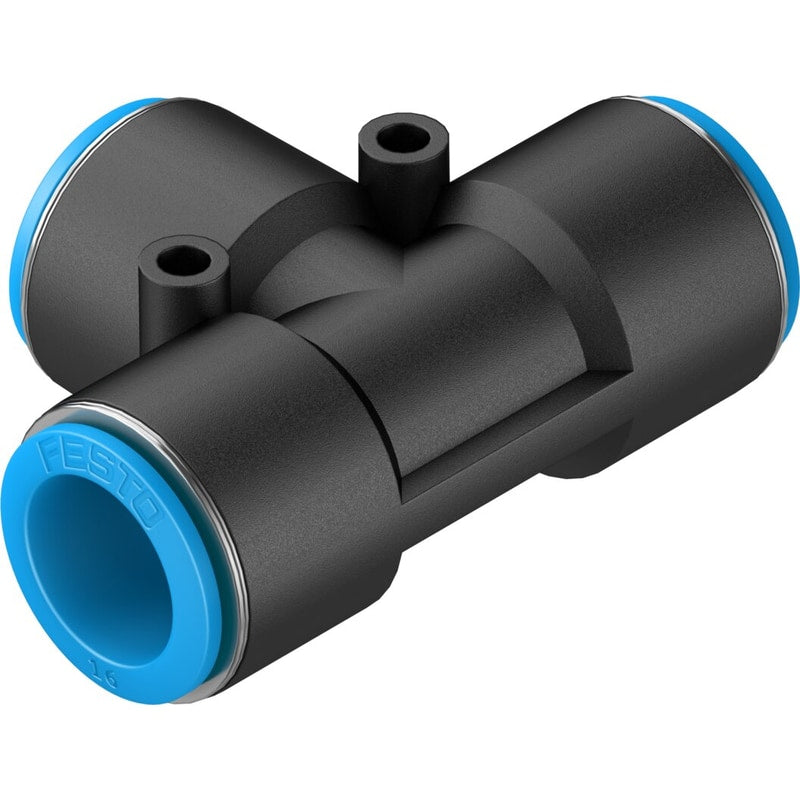

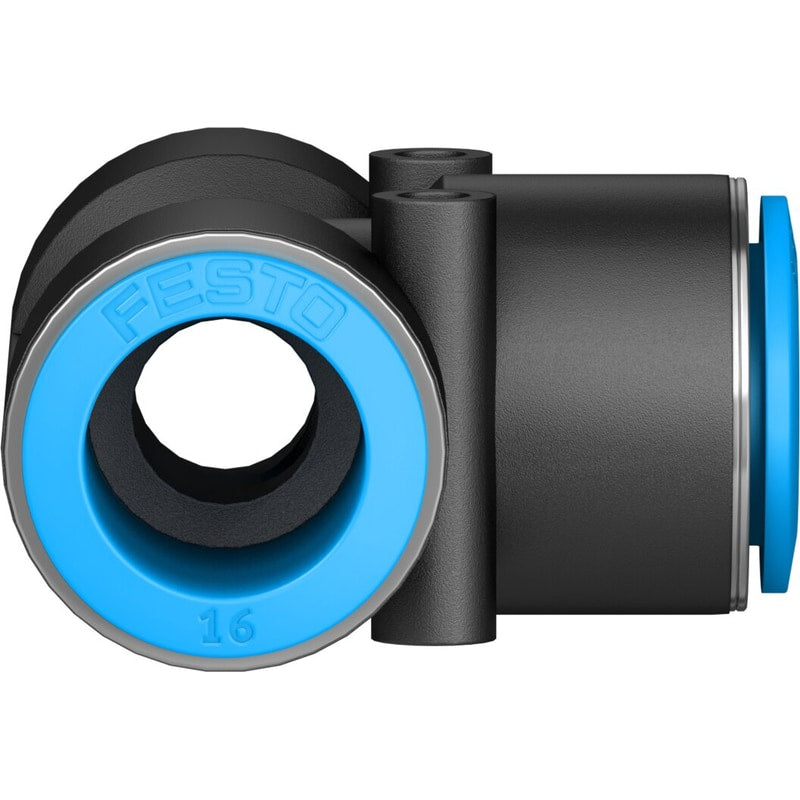

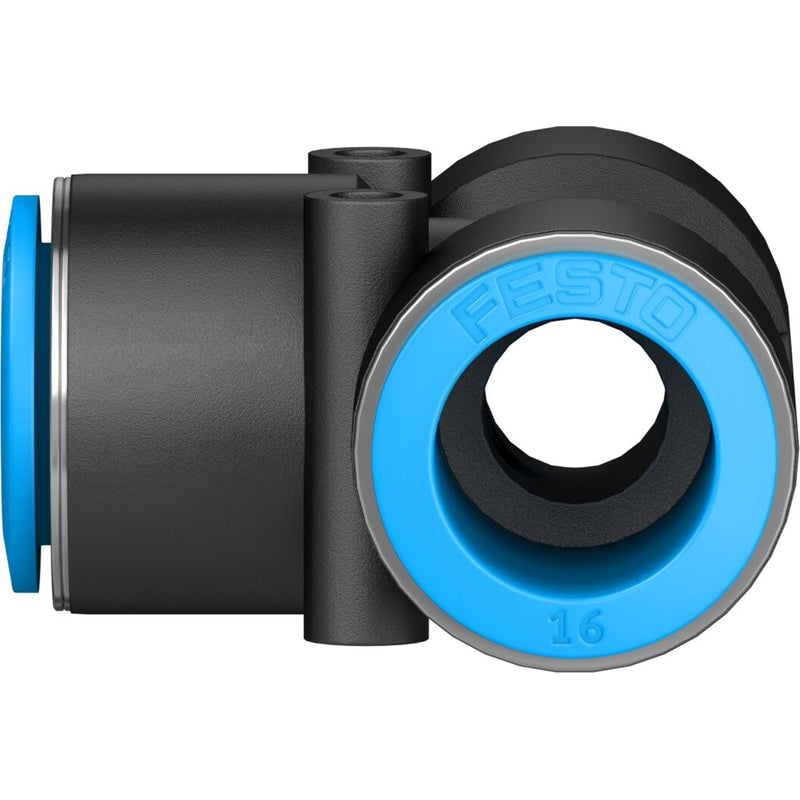

QST-16 push-in T-connector
153133
GTIN 4052568011116
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 16 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 16 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -10 °C - 80 °C
- Nominal width
- 13 mm
Regular price
$18.13
Unit price
QST-16 push-in T-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
QST-16 push-in T-connector
Regular price
$18.13
Unit price
QST-16 push-in T-connector is backordered and will ship as soon as it is back in stock.
push-in T-connector QST-16 Size=Standard, Nominal size=10,7 mm, Assembly position=Any, Container size=1, Design structure=Push/pull principle
| Fitting Type | Union Tee |
|---|---|
| Size | Standard |
| Nominal size | 10.7 mm |
| Assembly position | Any |
| Container size | 1 |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 6 bar |
| Temperature dependent operating pressure | '-0.95 ... 14 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 80 °C |
| Maritime classification | see certificate |
| Product weight | 44 g |
| Number of outputs | 2 |
| Number of supply lines | 1 |
| connection 1 | 16mm outside diameter, for tubing |
| connection 2 | For tubing outside diameter 16 mm |
| Colour of release ring | blue |
| Materials note | Conforms to RoHS |
