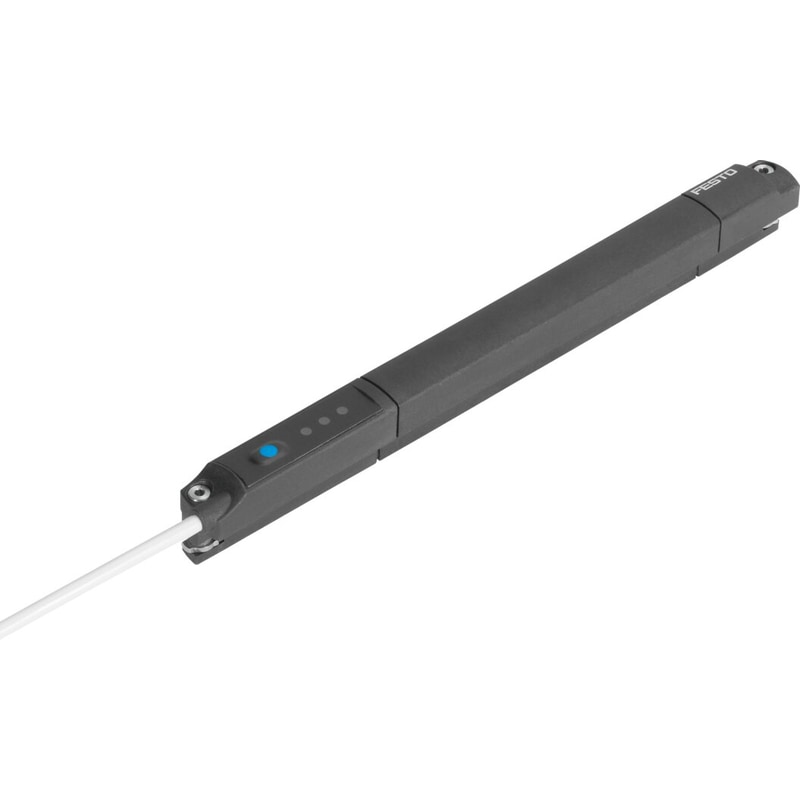

Position transmitter
SDAT-MHS-M125-1L-SA-E-0.3-M8
1531268
GTIN 4052568238100
Vendor Festo
- Design
- for T-slot
- Sensing range
- 0 µm - 125000 µm
- Analog output
- 4 - 20 mA
- Displacement resolution
- 0.05 mm
Regular price
$554.68
Unit price
SDAT-MHS-M125-1L-SA-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDAT-MHS-M125-1L-SA-E-0.3-M8
Regular price
$554.68
Unit price
SDAT-MHS-M125-1L-SA-E-0.3-M8 is backordered and will ship as soon as it is back in stock.
| Type code | SDAT |
|---|---|

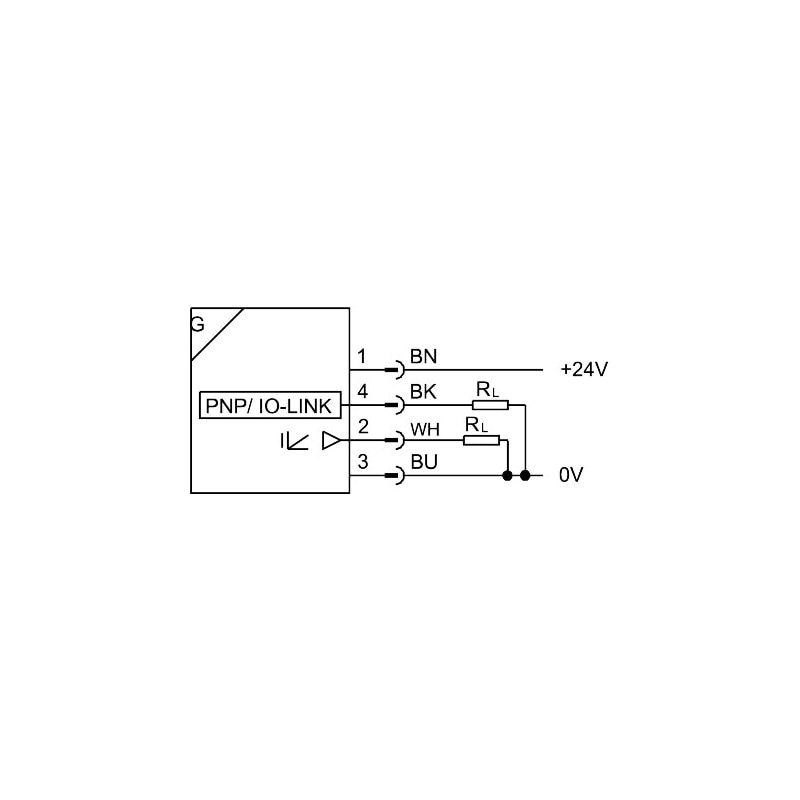

| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection type | Cable with plug |
| KC characters | KC EMC |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991171 |
| Electrical connection 1, number of pins/wires | 4 |
| Design | for T-slot |
| Symbol | 995389 |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Halogen-freeRoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic Hall |
| Sensing range | 0 µm ... 125000 µm |
| Ambient temperature | -25 °C ... 70 °C |
| Typical sampling interval | 1 ms |
| Max. travel speed | 3 m/s |
| Displacement resolution | 0.05 mm |
| Repetition accuracy | 0.1 mm |
| Switching output | PNP |
| Switching element function | N/C contact/N/O contact switchable |
| On time | < 2 ms |
| Max. switching frequency | 1000 Hz |
| Max. output current | 100 mA |
| Max. switching capacity DC | 2.7 W |
| Voltage drop | 2.5 V |
| Analog output | 4 - 20 mA |
| Sensitivity | 0.128 mA/mm |
| Typical linearity error in ± mm | ±0.25 mm |
| Max. load resistance of current output | 500 Ohm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | I-PortIO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Teach channelDiagnosticsBinary data channel (BDC)Process data variable (PDV)Identification |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, process data content IN | 12 bit PDV (position measurement)4 bit BDC (position monitoring) |
| IO-Link®, minimum cycle time | 1 ms |
| DC operating voltage range | 15 V ... 30 V |
| Residual ripple | 0.1 |
| Reverse polarity protection | for all electrical connections |
| Connection outlet orientation | Longitudinal |
| Material of pin contacts | Gold-platedCopper alloy |
| Connector cable test conditions | Torsional resistance: > 300 000 cycles, ±270°/0.1 mFlexural strength: as per Festo standardCable chain: 5 million cycles, bending radius 28 mm |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightlyCan be inserted in slot from above |
| Mounting position | Any |
| Product weight | 30 g |
| Housing material | PA-reinforcedBrass, nickel-platedHigh-alloy stainless steelPolyester |
| Material of union nut | Brass, nickel-plated |
| Film material | Polyester |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Status indicator | LED red |
| Setting options | PushbuttonIO-Link® |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP68IP65 |
