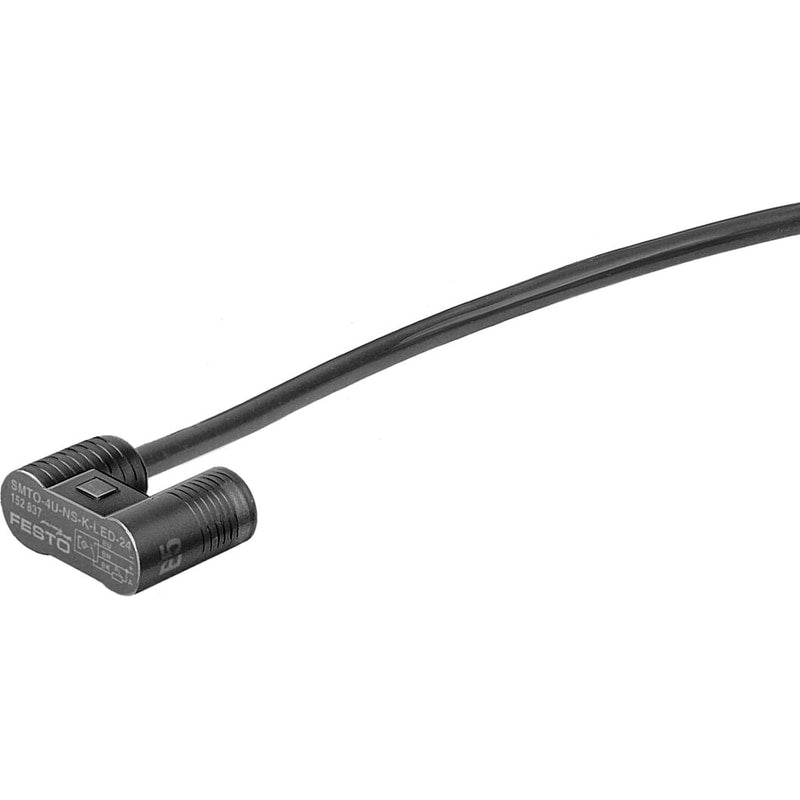

Proximity sensor
SMTO-4U-NS-K-LED-24
152837
GTIN 4052568117733
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Switching output
- NPN
Regular price
$351.18
Unit price
SMTO-4U-NS-K-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMTO-4U-NS-K-LED-24
Regular price
$351.18
Unit price
SMTO-4U-NS-K-LED-24 is backordered and will ship as soon as it is back in stock.
| Type code | SMTO |
|---|---|
| Design | Round |
| Symbol | 991149 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Measuring principle | Magneto-inductive |
| Ambient temperature | -25 °C ... 70 °C |
| Switching output | NPN |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | ≤ 5 ms |
| Switch-off time | ≤ 5 ms |
| Max. output current | 200 mA |
| Max. switching capacity DC | 6 W |
| Voltage drop | 2 V |
| Residual current | ≤ 0.01 mA |
| Short-circuit protection | Pulsed |
| Overload protection | Available |
| DC operating voltage range | 10 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | Cable3-wire |
| Connection outlet orientation | Longitudinal |
| Cable characteristic | Standard |
| Material of cable sheath | PVC |
| Type of mounting | With accessories |
| Max. tightening torque | 0.8 Nm |
| Product weight | 70 g |
| Housing material | PET |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67 |
