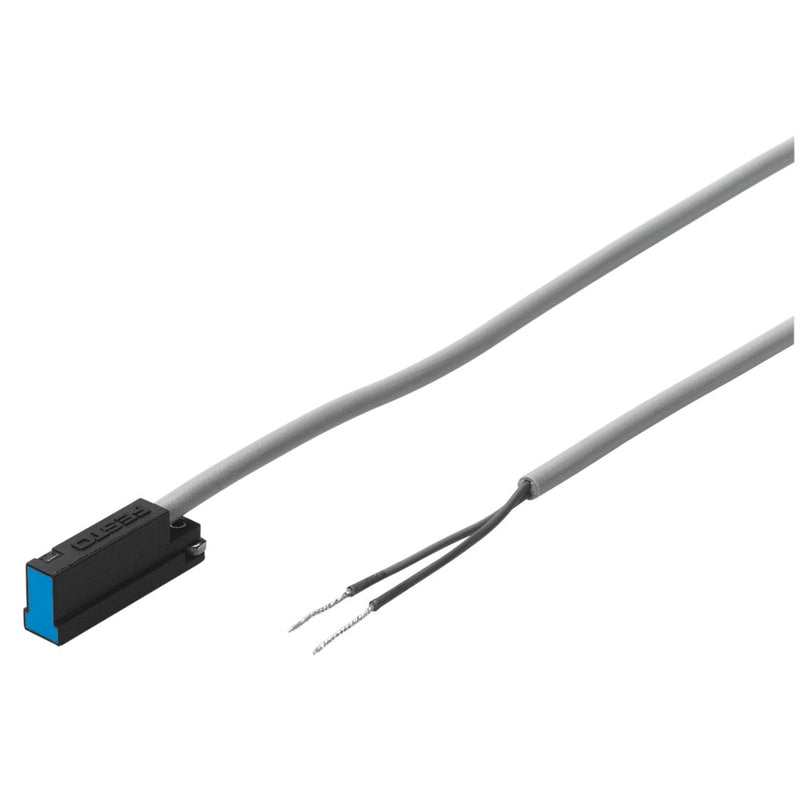

Proximity sensor
SME-8-K-LED-230
152820
GTIN 4052568070472
Vendor Festo
- DC operating voltage range
- 3 V - 230 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$73.90
Unit price
SME-8-K-LED-230 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SME-8-K-LED-230
Regular price
$73.90
Unit price
SME-8-K-LED-230 is backordered and will ship as soon as it is back in stock.
| Type code | SME |
|---|---|
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, number of pins/wires | 2 |
| Design | for T-slot |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991624 |
| Certification | RCM compliance markCCC |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU low voltage directive |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Measuring principle | Magnetic reed |
| Ambient temperature | -30 °C ... 60 °C |
| Switching output | Contact-based, bipolar |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | 2 ms |
| Switch-off time | 0.03 ms |
| Max. switching frequency | 500 Hz |
| Max. output current | 120 mA |
| Min. switching capacity AC | 10 VA |
| Max. switching capacity DC | 10 W |
| Voltage drop | ≤ 3.9 V |
| Residual current | 0 mA |
| Overload protection | Not available |
| Operating voltage range AC | 3 V ... 230 V |
| DC operating voltage range | 3 V ... 230 V |
| Reverse polarity protection | no |
| Connection outlet orientation | Longitudinal |
| Cable length | 2.5 m |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot lengthwiseClamped in T slot |
| Tightening torque | 0.2 Nm |
| Product weight | 39 g |
| Housing material | Epoxy resinHigh-alloy stainless steelPET |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 60 °C |
| Degree of protection | IP68 |
| Surge resistance | 4 kV |
| Contamination level | 3 |
