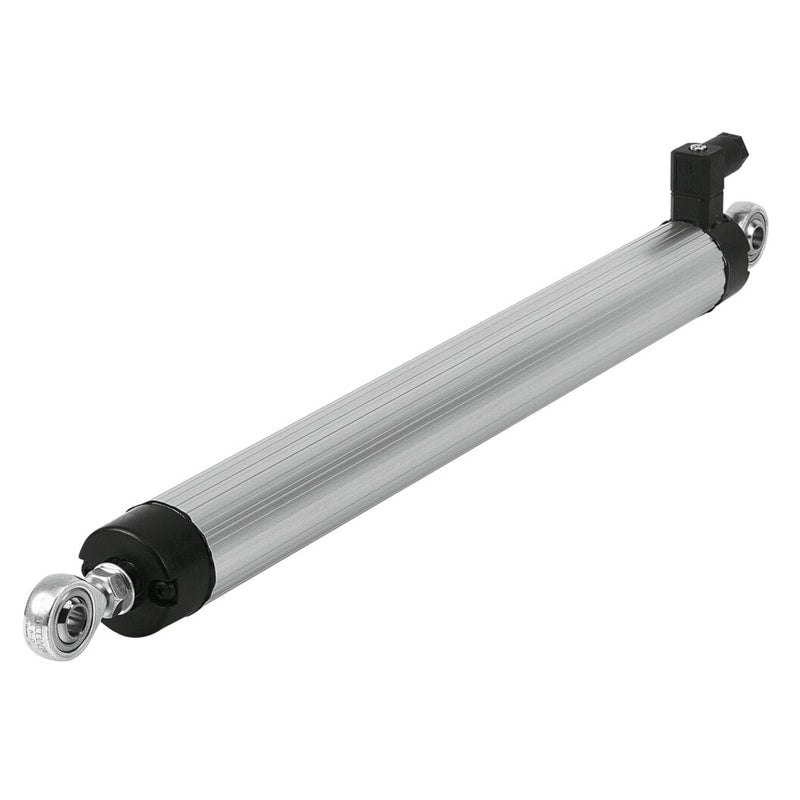

Displacement encoder
MLO-POT-225-LWG
152645
GTIN 4052568117610
Vendor Festo
- Stroke
- 225 mm
- Measuring principle of linear potentiometer
- Analog
- Output signal
- Analog
- Displacement resolution
- 0.01 mm
- Electrical connection
- Plug - Rectangular design
Regular price
$1,253.28
Unit price
MLO-POT-225-LWG is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MLO-POT-225-LWG
Regular price
$1,253.28
Unit price
MLO-POT-225-LWG is backordered and will ship as soon as it is back in stock.
| Type code | MLO |
|---|---|
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Measuring principle of linear potentiometer | Analog |
| Ambient temperature | -30 °C ... 100 °C |
| Recommended contact current | < 1 µA |
| Max. short-time slider current | 10000 µA |
| Max. travel speed | 5 m/s |
| Max. travel acceleration | 200 m/s² |
| Displacement resolution | 0.01 mm |
| Independent linearity | 0.0007 |
| Temperature coefficient | 5 ppm/K |
| Stroke | 225 mm |
| Output signal | Analog |
| Connection resistance | 5 kOhm |
| Connection resistance tolerance | 0.2 |
| Nominal operating voltage DC | 10 V |
| Max. operating voltage DC | 42 V |
| Permissible voltage fluctuations | < 1 % |
| Max. current consumption | 4 mA |
| Electrical connection | 16 mmPlugRectangular design4-pin |
| Design | Round profilewith connecting rod |
| Moment compensator angular offset | ± 12.5 ° |
| Mounting position | Any |
| Housing material | AnodizedWrought aluminum alloy |
| Cover material | PBT-reinforced |
| Material of connecting rod | High-alloy stainless steel |
| Material of bearing seal | NBR |
| Material of rod seal | PTFE |
| Degree of protection | IP65as per IEC 60529 |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
