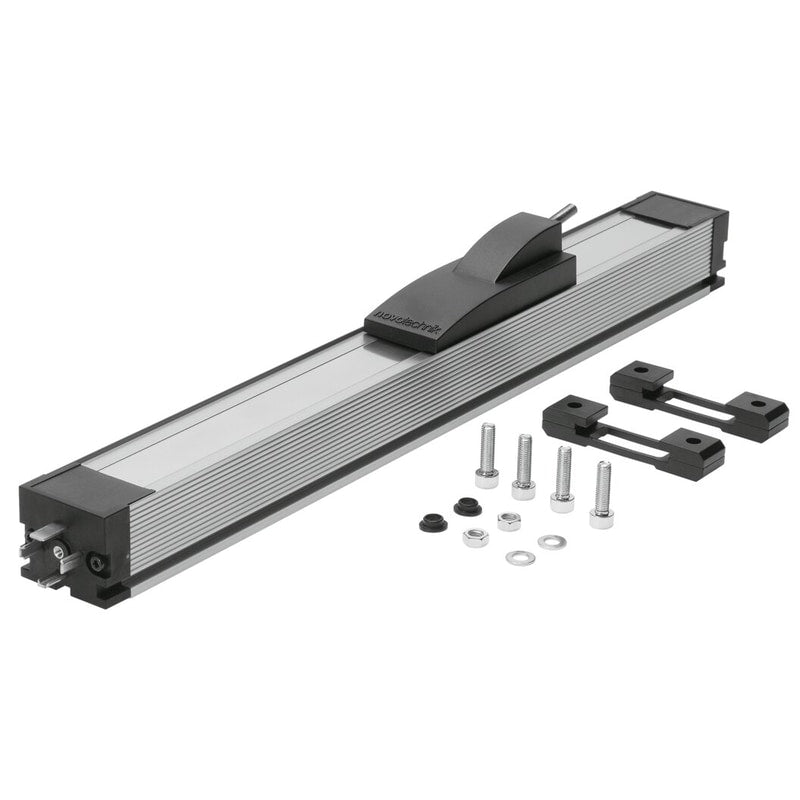

Displacement encoder
MLO-POT-360-TLF
152627
GTIN 4052568117511
Vendor Festo
- Stroke
- 360 mm
- Measuring principle of linear potentiometer
- Analog
- Output signal
- Analog
- Displacement resolution
- 0.01 mm
- Electrical connection
- Plug - as per DIN 43650 - Rectangular design
Regular price
$784.22
Unit price
MLO-POT-360-TLF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MLO-POT-360-TLF
Regular price
$784.22
Unit price
MLO-POT-360-TLF is backordered and will ship as soon as it is back in stock.
| Type code | MLO |
|---|---|
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Measuring principle of linear potentiometer | Analog |
| Ambient temperature | -30 °C ... 100 °C |
| Recommended contact current | < 1 µA |
| Max. short-time slider current | 10000 µA |
| Max. travel speed | 10 m/s |
| Max. travel acceleration | 200 m/s² |
| Displacement resolution | 0.01 mm |
| Independent linearity | 0.0005 |
| Temperature coefficient | 5 ppm/K |
| Stroke | 360 mm |
| Output signal | Analog |
| Connection resistance | 5 kOhm |
| Connection resistance tolerance | 0.2 |
| Nominal operating voltage DC | 10 V |
| Max. operating voltage DC | 42 V |
| Permissible voltage fluctuations | < 1 % |
| Max. current consumption | 4 mA |
| Electrical connection | Form APlugRectangular designas per DIN 436504-pin |
| Design | with cover stripOpen profilewith sliding carriage |
| Coupling parallel quick coupling | ± 1.5 mm |
| Moment compensator angular offset | ± 1 ° |
| Product weight | 1100 g |
| Housing material | Wrought aluminum alloyAnodized |
| Covering material | Steel |
| Slide carriage housing material | Die-cast aluminumPolymer |
| Slide carriage coupling material | Steel |
| Cover material | Polymer |
| Material of assembly brackets | PEI |
| Degree of protection at top | as per IEC 60529 |
| Bottom degree of protection | as per IEC 60529 |
| Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
