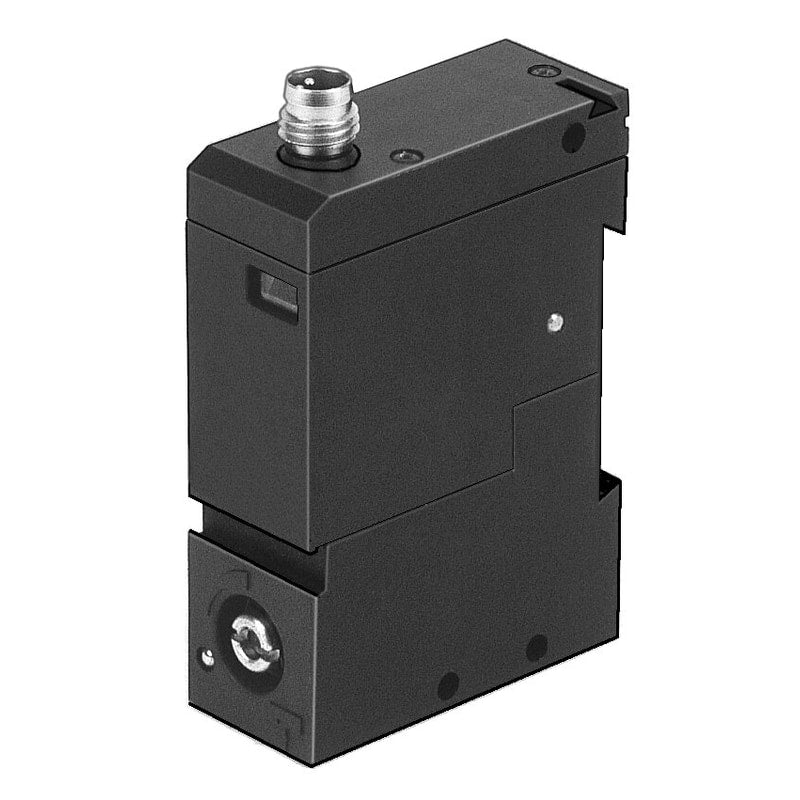

Vacuum switch
VPEV-W-S-LED-GH
152617
GTIN 4052568070243
Vendor Festo
Regular price
$136.97
Unit price
VPEV-W-S-LED-GH is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPEV-W-S-LED-GH
Regular price
$136.97
Unit price
VPEV-W-S-LED-GH is backordered and will ship as soon as it is back in stock.
| Type code | VPEV |
|---|---|
| Hysteresis | 0.08 bar ... 0.2 bar |
| Symbol | 991472 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer |
| Pressure measuring range | -0.8 bar ... -0.2 bar |
| Operating pressure | -1 bar ... 0 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | 0 °C ... 60 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Switching element function | Changeover switch |
| Max. output current | 2500 mA |
| DC operating voltage range | 10 V ... 30 V |
| Electrical connection | PlugM8x14-pin |
| Type of mounting | With H-railWith through-holeOptionally: |
| Mounting position | Any |
| Pneumatic connection | M5 |
| Product weight | 56 g |
| Housing material | POMPAPET |
| Threshold value setting range | -0.8 bar ... -0.2 bar |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
