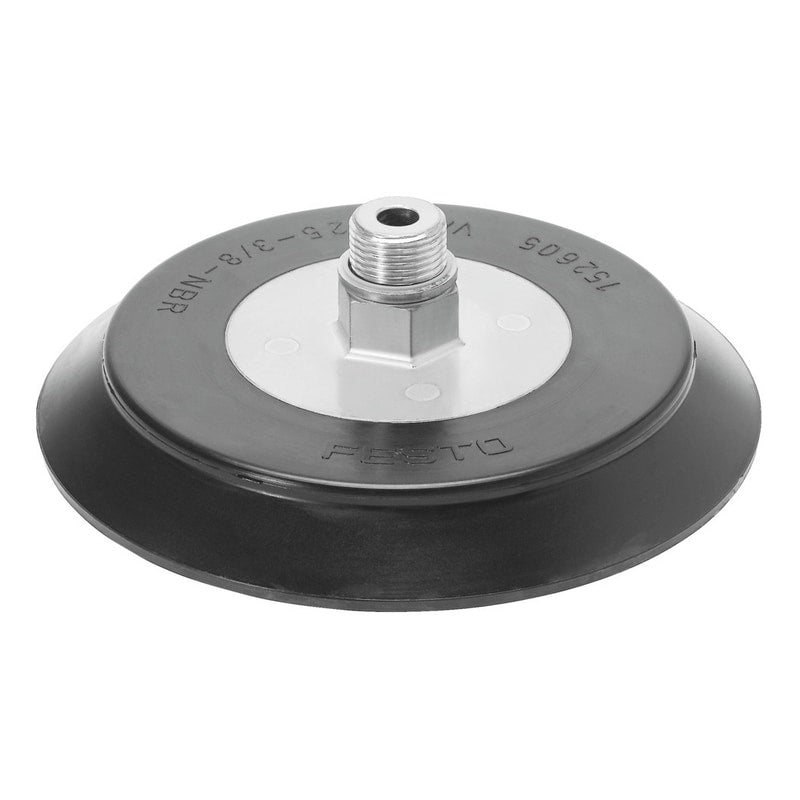

Vacuum suction cup
VAS-125-3/8-NBR
152605
GTIN 4052568070205
Vendor Festo
- Suction cup diameter
- 125 mm
- Effective suction cup diameter
- 105 mm
- Suction cup shape
- Round, flat
- Suction cup material
- NBR
Regular price
$101.96
Unit price
VAS-125-3/8-NBR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAS-125-3/8-NBR
Regular price
$101.96
Unit price
VAS-125-3/8-NBR is backordered and will ship as soon as it is back in stock.
| Nominal width | 7 mm |
|---|---|
| Suction cup diameter | 125 mm |
| Effective suction cup diameter | 105 mm |
| Type code | VAS |
| Connection position | Top |
| Symbol | 991485 |
| Suction cup shape | Round, flat |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -20 °C ... 80 °C |
| Breakaway force at 70% vacuum | 606 N |
| Holding force at nominal operating pressure | 606 N |
| Mounting thread | G3/8 |
| Suction cup mounting | G3/8 |
| Vacuum connection | G3/8 |
| Color | Black |
| Shore hardness | 70 +/- 5 |
| Material of screwed trunnion | Die-cast zinc |
| Note on materials | RoHS-compliant |
| Suction cup material | NBR |
