Multi-plug

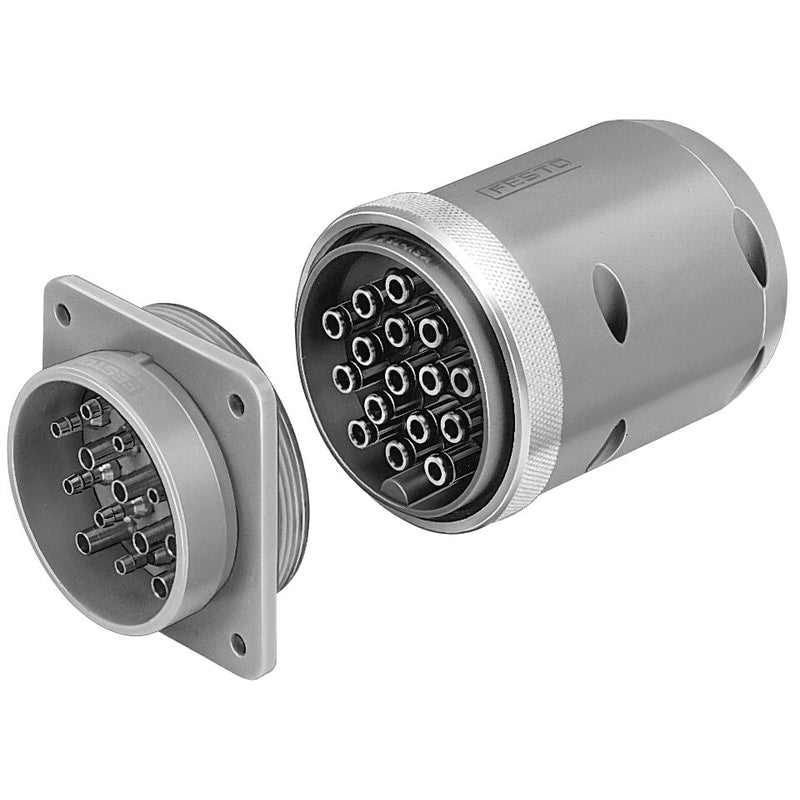

KSV6-22 multi-plug
152508
GTIN 4052568070144
Vendor Festo
Regular price
$134.33
Unit price
KSV6-22 multi-plug is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KSV6-22 multi-plug
Regular price
$134.33
Unit price
KSV6-22 multi-plug is backordered and will ship as soon as it is back in stock.
multi-plug KSV6-22 Nominal size=6 mm, Operating pressure=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 - Moderate corrosion stress
| Fitting Type | n/a |
|---|---|
| Nominal size | 6 mm |
| Operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Max. number of connections | 22 |
| Pneumatic connection | PK-6 |
| Colour | Grey |
| Materials note | Conforms to RoHS |
