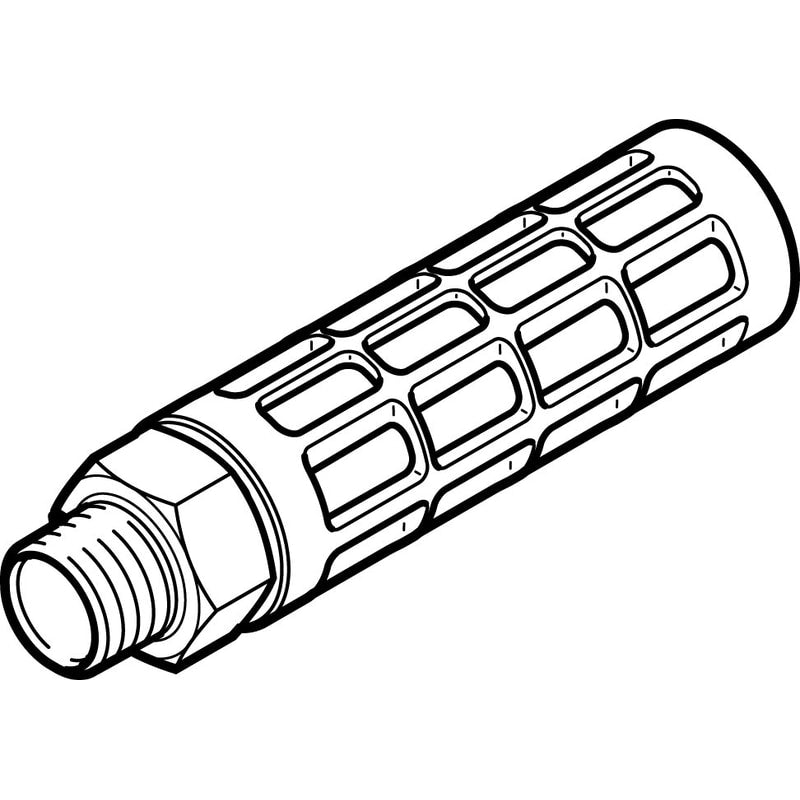

Pneumatic muffler
U-1-B
151990
GTIN 4052568010836
Vendor Festo
- Cushioning insert material
- PE
- Pneumatic connection
- G1
- Noise level
- 85 dB(A)
Regular price
$52.10
Unit price
U-1-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
U-1-B
Regular price
$52.10
Unit price
U-1-B is backordered and will ship as soon as it is back in stock.
| Type code | U |
|---|---|
| Mounting position | Any |
| Symbol | 991473 |
| Operating pressure for entire temperature range | 0 bar ... 10 bar |
| Flow rate with respect to atmosphere | 17500 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Noise level | 85 dB(A) |
| Ambient temperature | -10 °C ... 70 °C |
| Product weight | 233 g |
| Pneumatic connection | G1 |
| Cushioning insert material | PE |
| Material of screwed trunnion | Aluminum |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Housing material | Aluminum |
