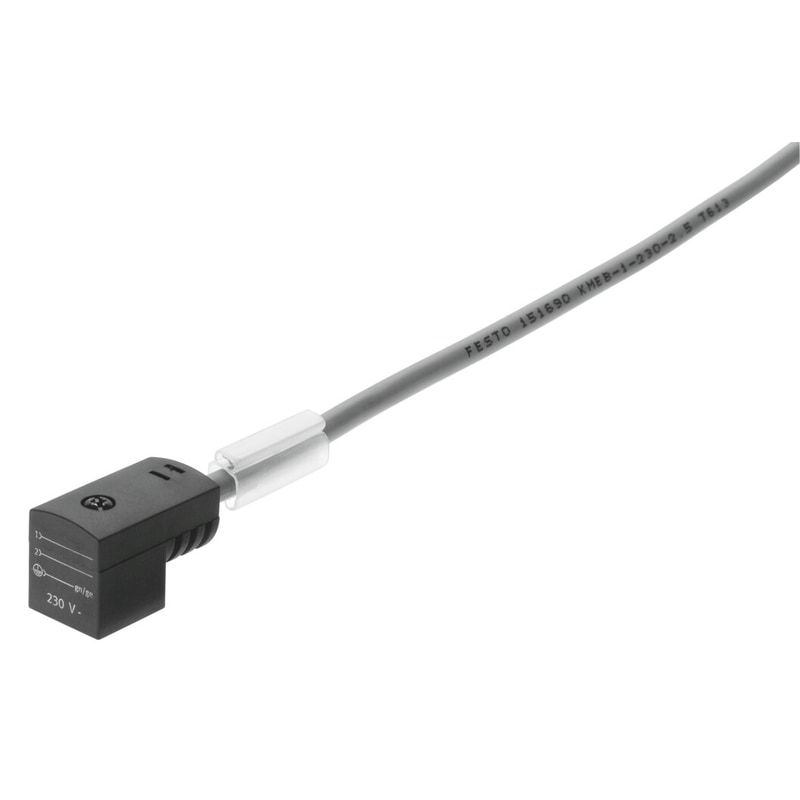

Plug socket with cable
KMEB-1-230AC-5
151691
GTIN 4052568030766
Vendor Festo
- Cable length
- 5 m
Regular price
$33.06
Unit price
KMEB-1-230AC-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMEB-1-230AC-5
Regular price
$33.06
Unit price
KMEB-1-230AC-5 is backordered and will ship as soon as it is back in stock.
| Type code | KMEB |
|---|---|
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 230 g |
| Electrical connection | Form Cas per DIN EN 175301-8033-pinSocket, angled |
| Nominal operating voltage AC | 230 V |
| Protective earth connection | Available |
| Cable length | 5 m |
| Cable diameter | 5.2 mm |
| Cable design | 3 x 0.5 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PA66-GF30 |
| Material of pin contacts | Bronze |
| Mounting position | Any |
