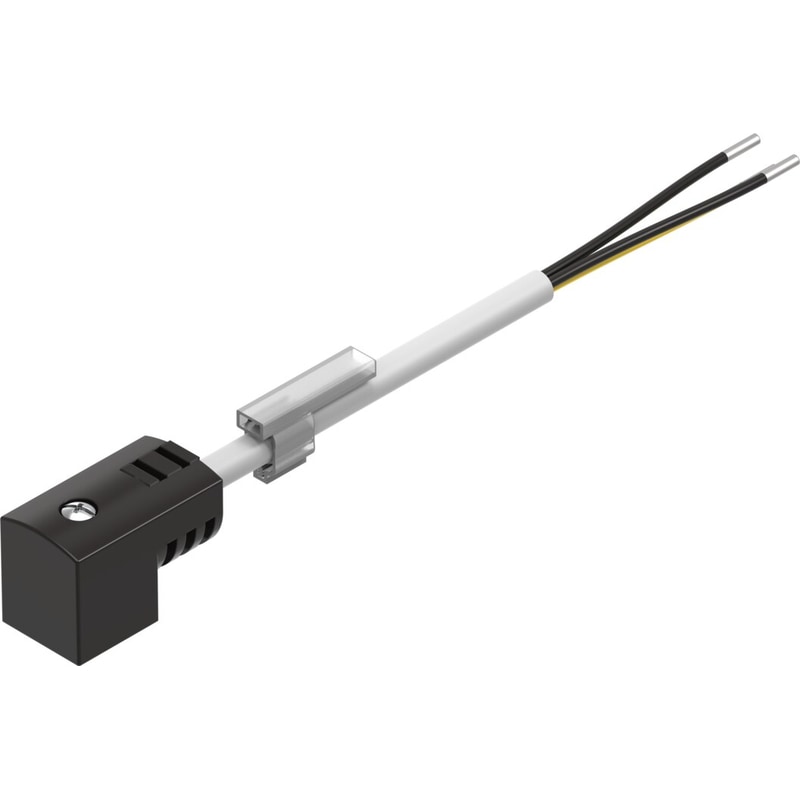

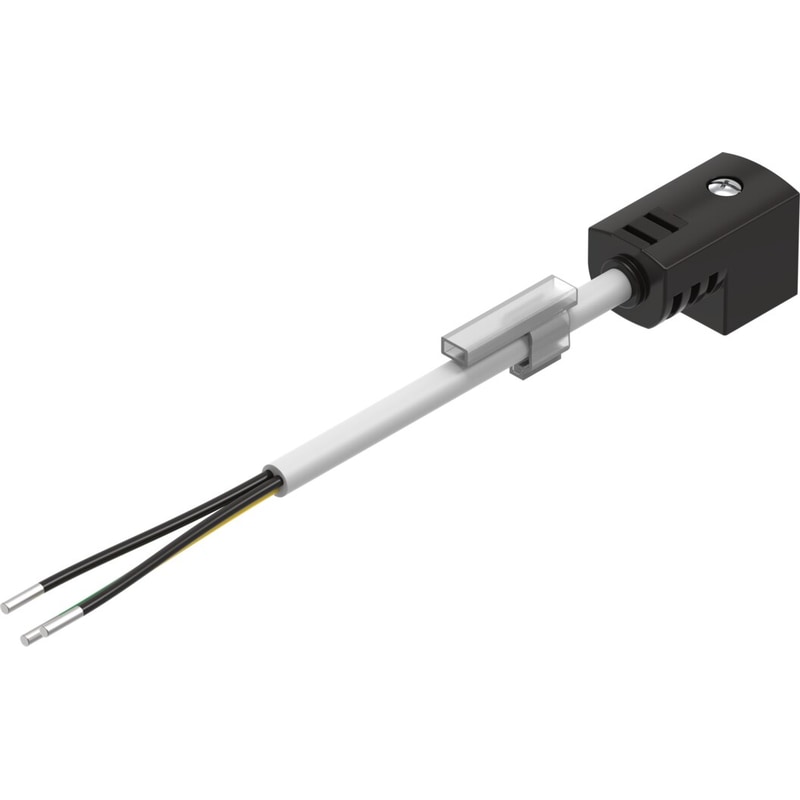

Plug socket with cable
KMEB-1-24-2,5-LED
151688
GTIN 4052568030742
Vendor Festo
- Cable length
- 2.5 m
Regular price
$35.25
Unit price
KMEB-1-24-2,5-LED is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
KMEB-1-24-2,5-LED
Regular price
$35.25
Unit price
KMEB-1-24-2,5-LED is backordered and will ship as soon as it is back in stock.
| Type code | KMEB |
|---|---|
| Switching position indication | LED |
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 125 g |
| Electrical connection | as per DIN EN 175301-803Form C3-pinSocket, angled |
| Nominal operating voltage DC | 24 V |
| Protective earth connection | Available |
| Cable length | 2.5 m |
| Cable diameter | 5.2 mm |
| Cable design | 3 x 0.5 mm² |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -20 °C ... 80 °C |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PVC |
| Housing material | PA66-GF30 |
| Material of pin contacts | Bronze |
| Mounting position | Any |
