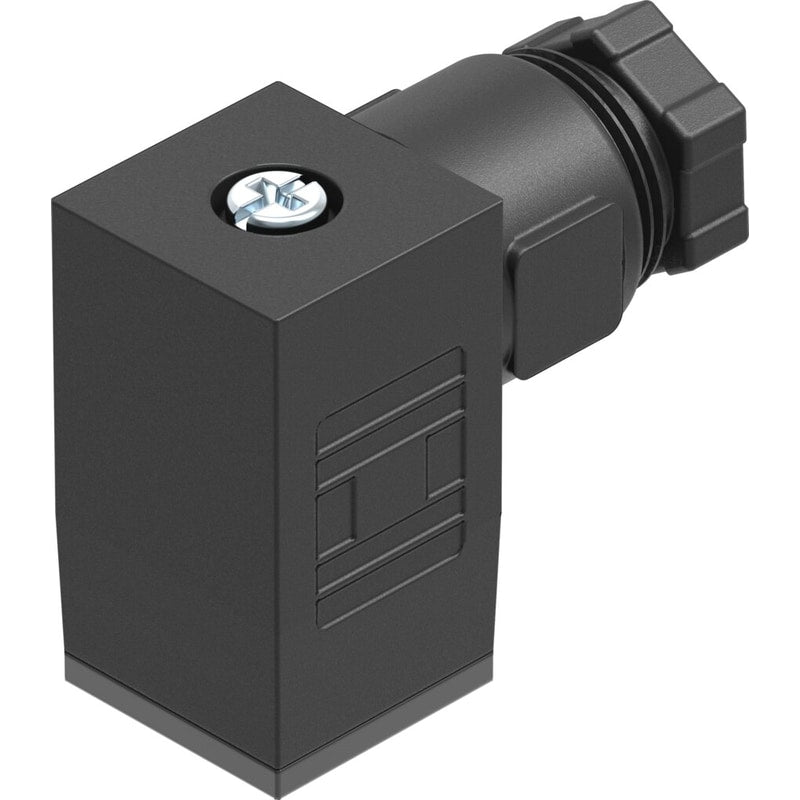

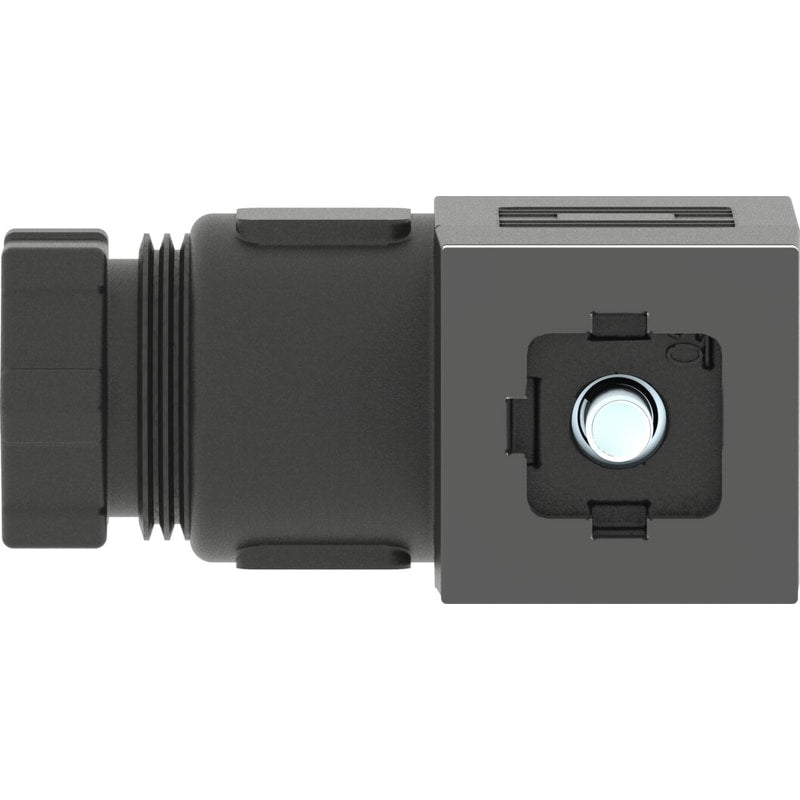

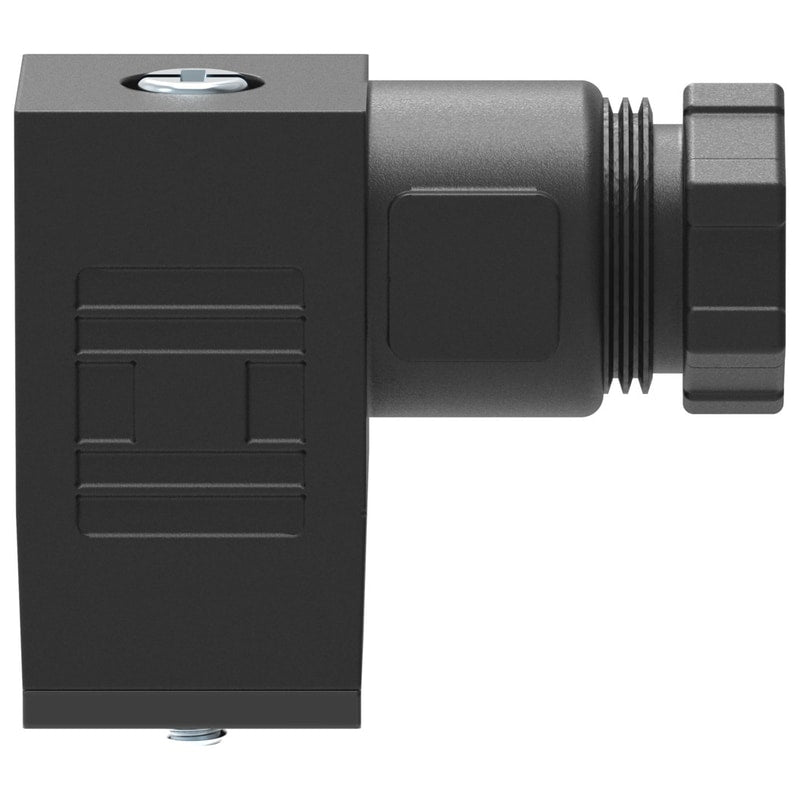

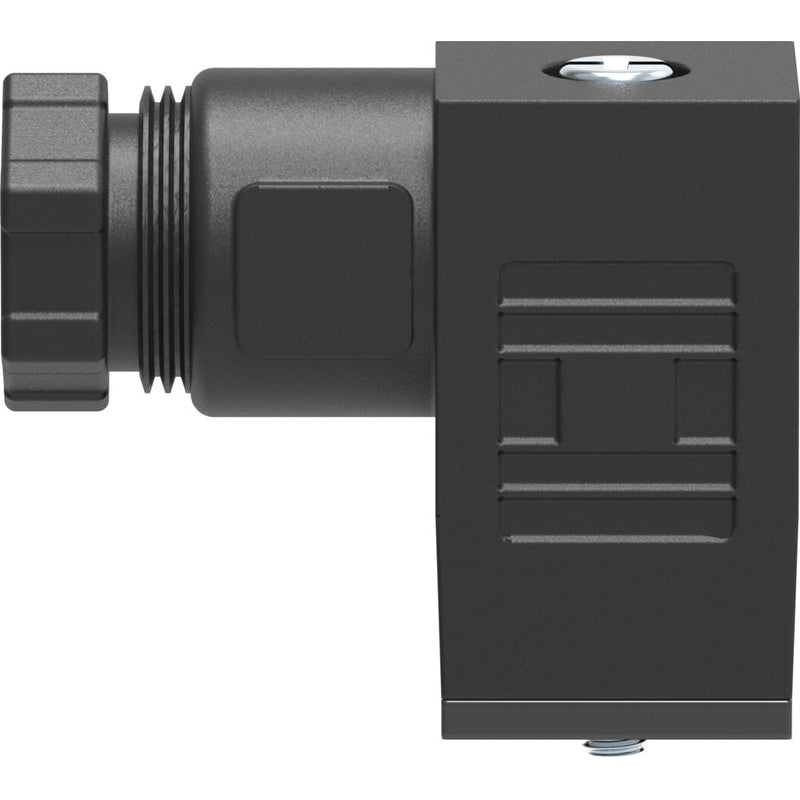

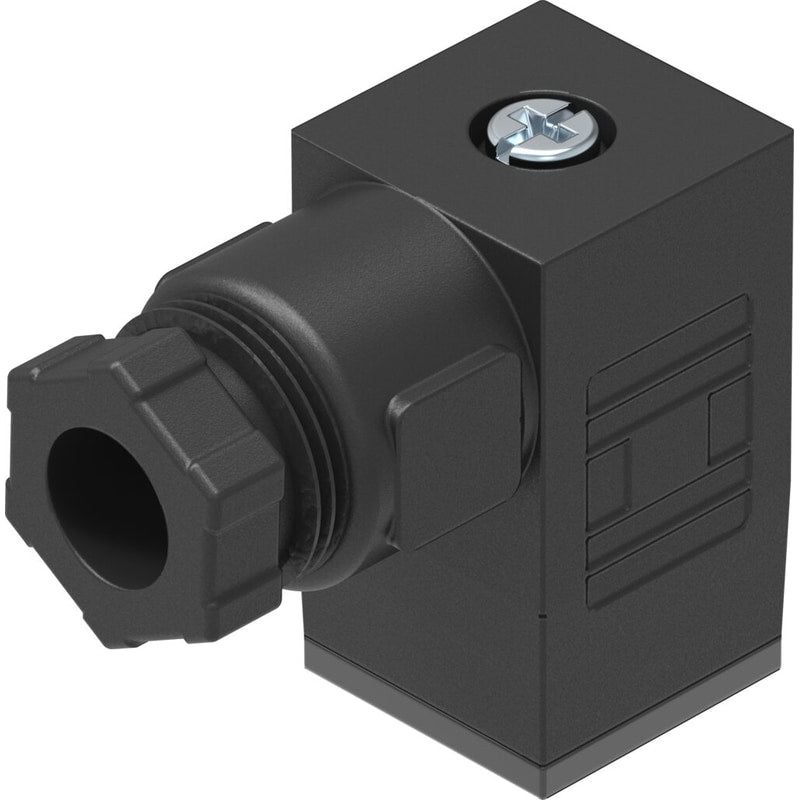

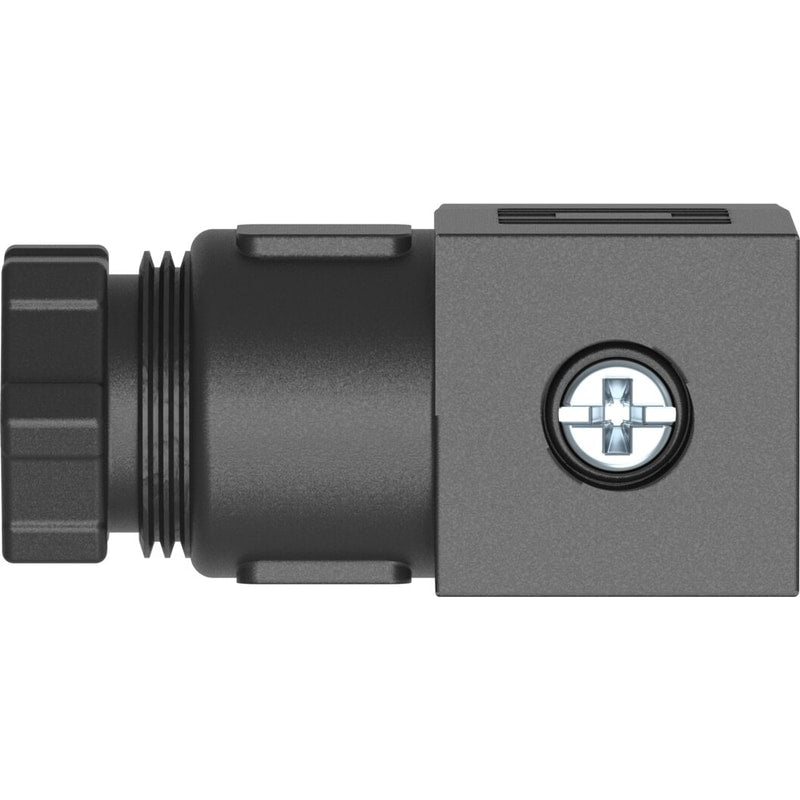

Plug socket
MSSD-EB
151687
GTIN 4052568010720
Vendor Festo
- Electrical connection
- Form C - as per DIN EN 175301-803 - as per DIN EN 61984 - Rectangular design MSEB - Rectangular design MSN2
- Connection cross section
- 0.75 mm²
- Degree of protection
- IP65 - as per IEC 60529
Regular price
$3.76
Unit price
MSSD-EB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSSD-EB
Regular price
$3.76
Unit price
MSSD-EB is backordered and will ship as soon as it is back in stock.
| Type code | MSSD |
|---|---|
| Type of mounting | On air solenoid valve with M2.5 central screw |
| Product weight | 11 g |
| Electrical connection | Form C3-pinSocket, angledas per DIN EN 175301-803Rectangular design MSEBRectangular design MSN2Socketas per DIN EN 61984 |
| Nominal operating voltage DC | 300 V |
| Nominal operating voltage AC | 250 V |
| Current rating | 0.25 |
| Surge resistance | 4 kV |
| Cable diameter | 6 mm ... 8 mm |
| Approved cable diameter | 7.5 mm |
| Nominal conductor cross section | ≤ 0.75 mm² |
| Connection cross section | 0.75 mm² |
| Degree of protection | as per IEC 60529IP65 |
| Ambient temperature | -45 °C ... 90 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Contamination level | 3 |
| Housing material | Polymer |
| Housing colour | Black |
| Seals material | NBR |
| Mounting position | Any |
| Cable fitting | Pg7 |
