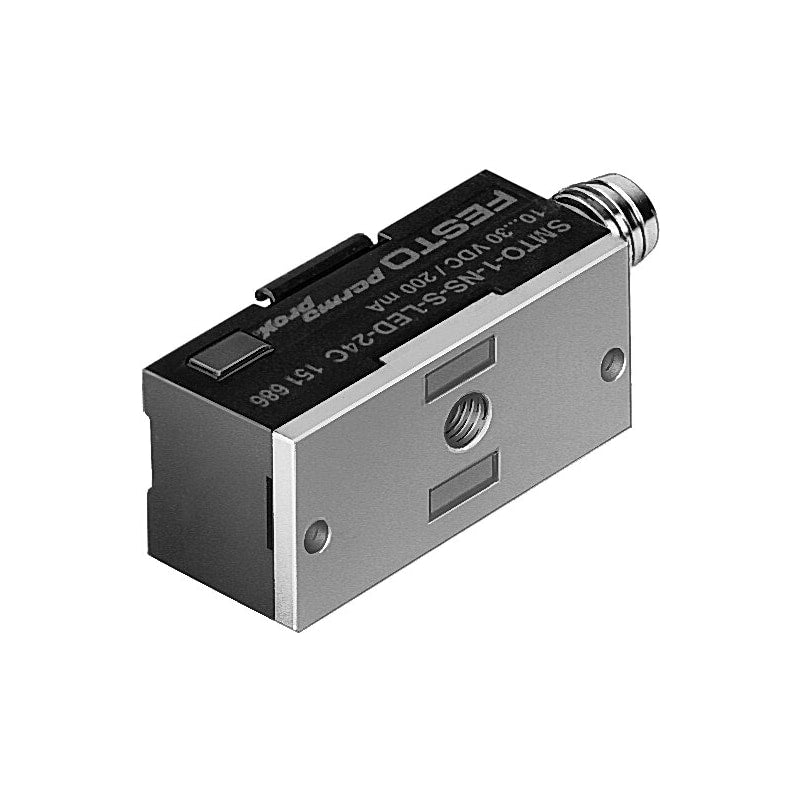

Proximity sensor
SMTO-1-NS-S-LED-24-C
151686
GTIN 4052568117061
Vendor Festo
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Switching output
- NPN
Regular price
$218.45
Unit price
SMTO-1-NS-S-LED-24-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMTO-1-NS-S-LED-24-C
Regular price
$218.45
Unit price
SMTO-1-NS-S-LED-24-C is backordered and will ship as soon as it is back in stock.
| Type code | SMTO |
|---|---|
| Design | Block design |
| Symbol | 991150 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Measuring principle | Magneto-inductive |
| Ambient temperature | -25 °C ... 70 °C |
| Switching output | NPN |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | ≤ 1 ms |
| Switch-off time | ≤ 1 ms |
| Max. output current | 200 mA |
| Max. switching capacity DC | 6 W |
| Voltage drop | ≤ 3 V |
| Residual current | ≤ 0.01 mA |
| Short-circuit protection | Pulsed |
| Overload protection | Available |
| DC operating voltage range | 10 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | PlugM8x13-pin |
| Connection outlet orientation | Longitudinal |
| Max. tightening torque | 0.3 Nm |
| Product weight | 20 g |
| Housing material | POMPETPURSteelDie-cast zincPC |
| Switching status indication | LED yellow |
| Degree of protection | IP67 |
