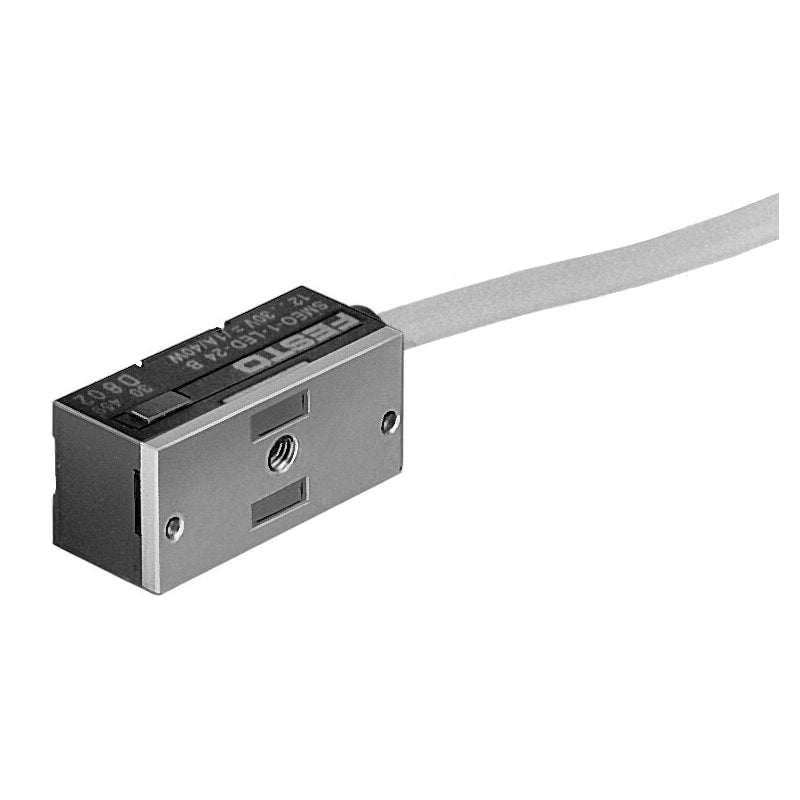

Proximity sensor
SMEO-1-LED-24-K5-B
151672
GTIN 4052568069995
Vendor Festo
- DC operating voltage range
- 12 V - 27 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$166.11
Unit price
SMEO-1-LED-24-K5-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMEO-1-LED-24-K5-B
Regular price
$166.11
Unit price
SMEO-1-LED-24-K5-B is backordered and will ship as soon as it is back in stock.
| Type code | SMEO |
|---|---|
| Design | Block design |
| Symbol | 991145 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Measuring principle | Magnetic reed |
| Ambient temperature | -20 °C ... 70 °C |
| Switching output | Contact-based, bipolar |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | ≤ 0.5 ms |
| Max. output current | 1000 mA |
| Min. switching capacity AC | 27 VA |
| Max. switching capacity DC | 27 W |
| Short-circuit protection | no |
| Overload protection | Not available |
| Operating voltage range AC | 12 V ... 27 V |
| DC operating voltage range | 12 V ... 27 V |
| Reverse polarity protection | no |
| Electrical connection | Cable3-wire |
| Connection outlet orientation | Longitudinal |
| Cable length | 5 m |
| Type of mounting | With accessories |
| Mounting position | Any |
| Product weight | 130 g |
| Housing material | Die-cast zinc |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67 |
