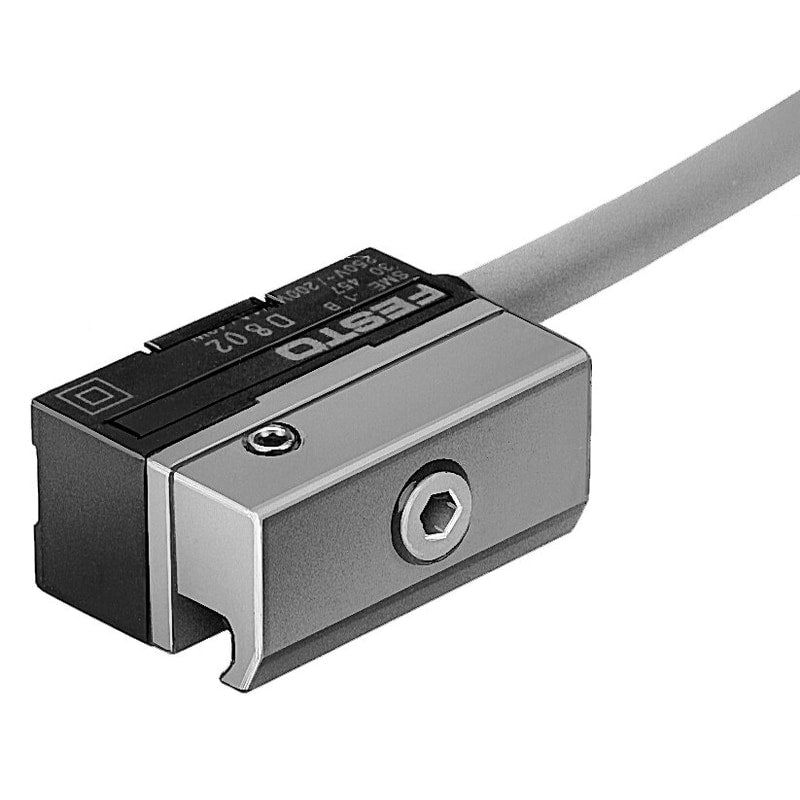

Proximity sensor
SME-1-B
151668
GTIN 4052568116996
Vendor Festo
- DC operating voltage range
- 0 V - 200 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$181.55
Unit price
SME-1-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SME-1-B
Regular price
$181.55
Unit price
SME-1-B is backordered and will ship as soon as it is back in stock.
| Type code | SME |
|---|---|
| Design | Block design |
| Conforms to standard | DIN EN 60947-5-2 |
| Symbol | 991624 |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | Free of copper and PTFE |
| Measuring principle | Magnetic reed |
| Ambient temperature | -20 °C ... 70 °C |
| Switching output | Contact-based, bipolar |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | 0.5 ms |
| Switch-off time | 0.03 ms |
| Max. switching frequency | 500 Hz |
| Max. output current | 1000 mA |
| Max. output current AC | 1000 mA |
| Max. output current DC | 1000 mA |
| Min. switching capacity AC | 40 VA |
| Max. switching capacity DC | 40 W |
| Voltage drop | ≤ 0 V |
| Residual current | 0 mA |
| Short-circuit protection | no |
| Overload protection | Not available |
| DC operating voltage range | 0 V ... 200 V |
| Reverse polarity protection | no |
| Electrical connection | 2-wireCable |
| Connection outlet orientation | Longitudinal |
| Cable length | 2.5 m |
| Material of cable sheath | PVC |
| Type of mounting | With accessories |
| Tightening torque | 2.9 Nm |
| Product weight | 130 g |
| Housing material | PCDie-cast zincPETTPE-OEpoxy resinSteel |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67 |
| Surge resistance | 4 kV |
| Contamination level | 3 |
