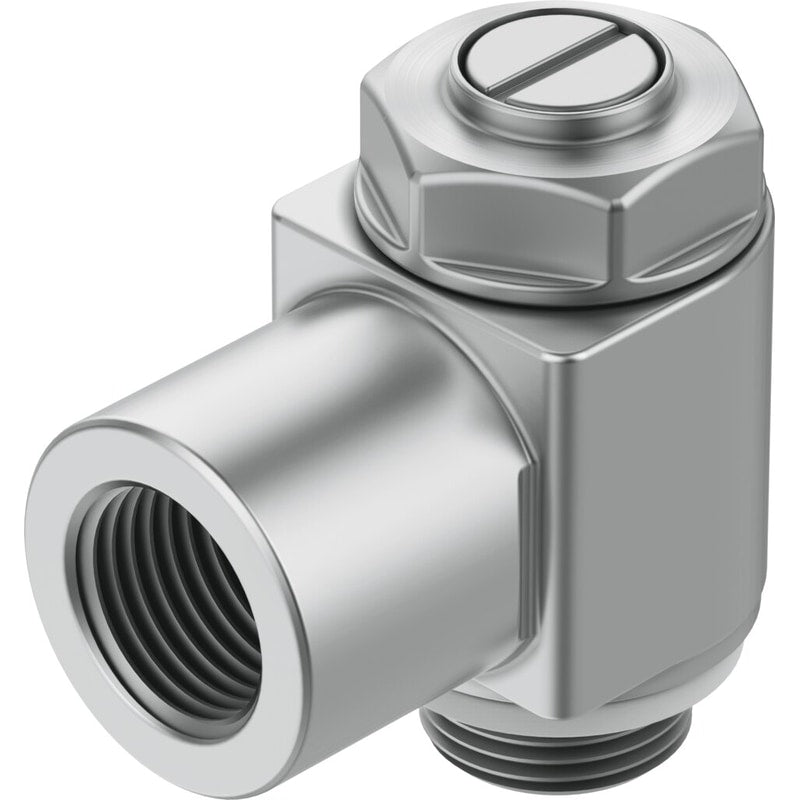

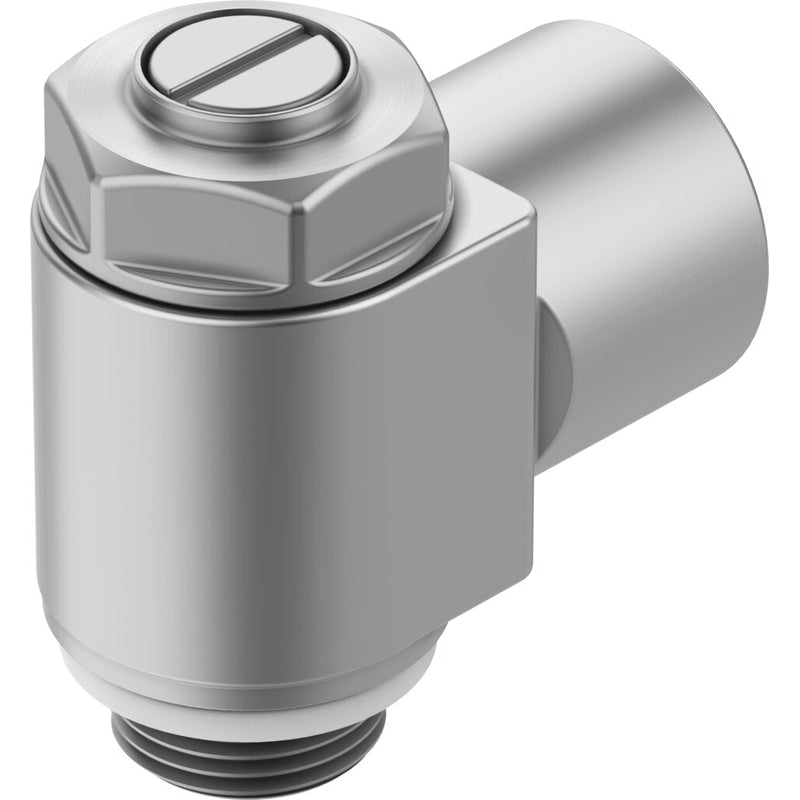

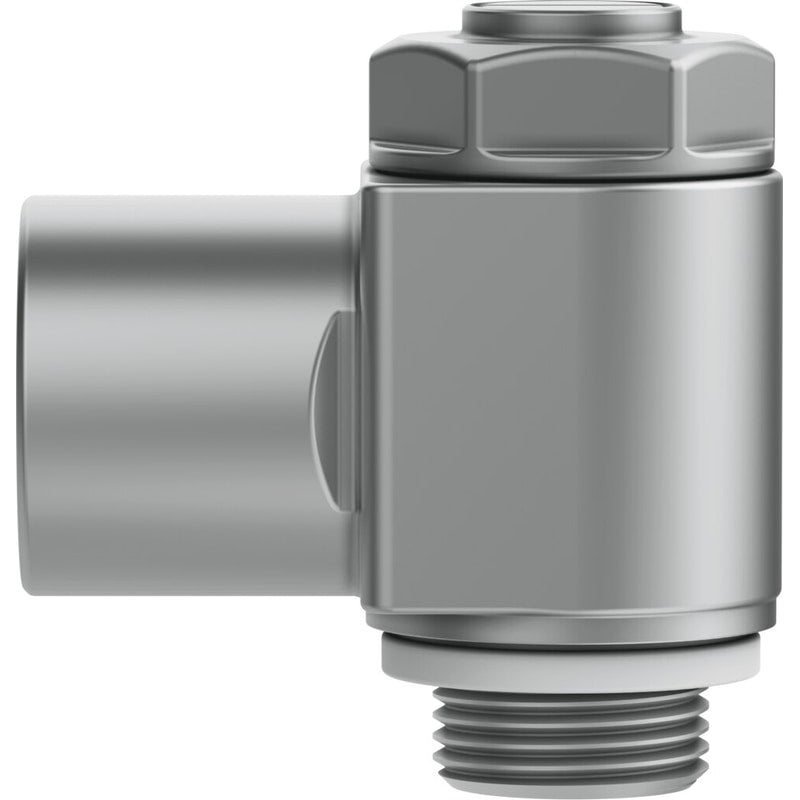

One-way flow control valve
GRLA-10-UNF-B
151572
GTIN 4052568310134
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Pneumatic connection 1
- 10-32 UNF-2B
- Adjusting element
- Slotted screw
Regular price
$36.85
Unit price
GRLA-10-UNF-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-10-UNF-B
Regular price
$36.85
Unit price
GRLA-10-UNF-B is backordered and will ship as soon as it is back in stock.
| Type code | GRLA |
|---|---|
| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | UNF10-32 |
| Pneumatic connection 2 | UNF10-32 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Operating pressure | 0.2 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Symbol | 991452 |
| Explosion prevention and protection | Zone 1 (ATEX)Observe the information on the certificateZone 22 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Nominal width | 2 mm |
| Note on materials | RoHS-compliant |
