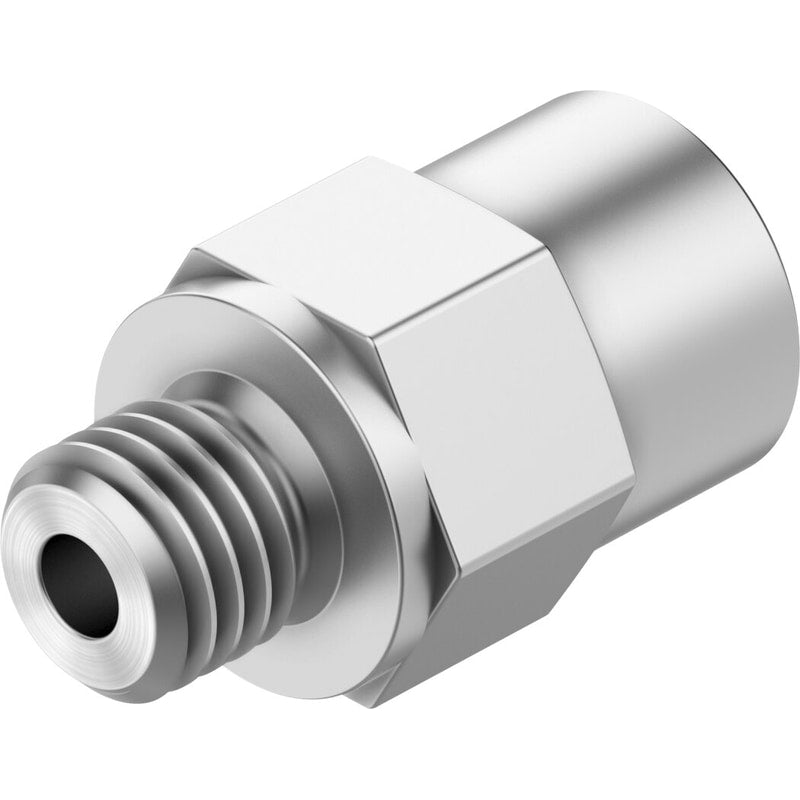

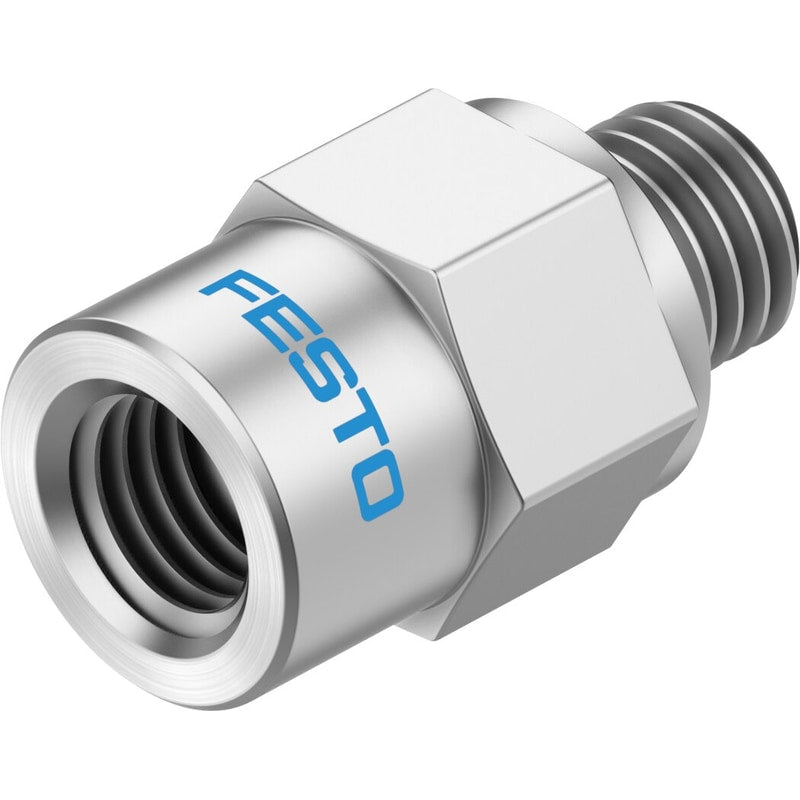

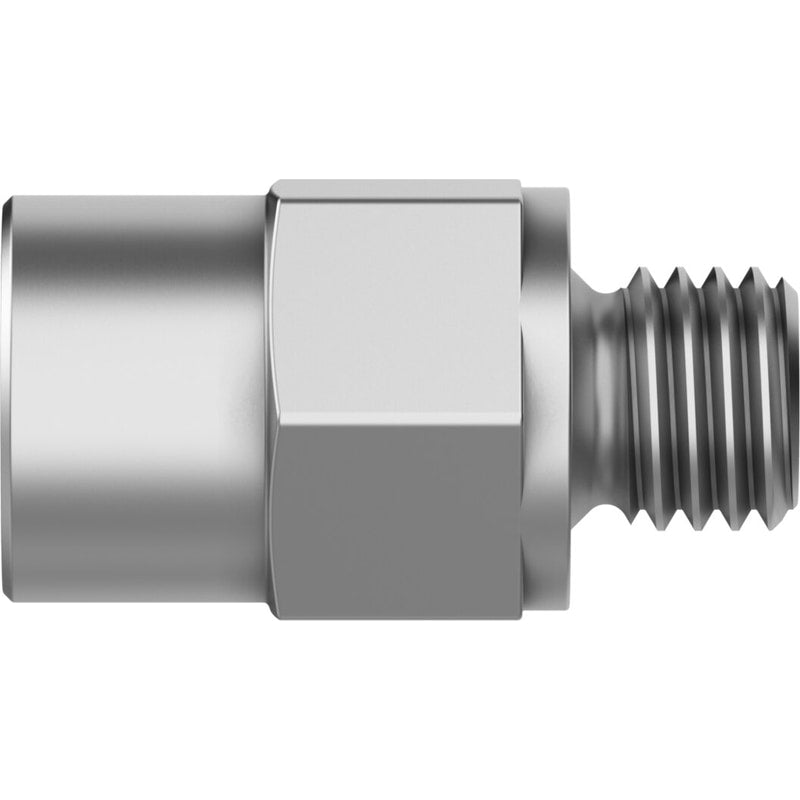

Vacuum security valve
ISV-M5
151217
GTIN 4052568030674
Vendor Festo
Regular price
$30.77
Unit price
ISV-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ISV-M5
Regular price
$30.77
Unit price
ISV-M5 is backordered and will ship as soon as it is back in stock.
| Size | M5 |
|---|---|
| Type code | ISV |
| Ejector pulse suitability | 8 bar |
| Mounting position | Any |
| Symbol | 991481 |
| Operating pressure | 0 bar ... 0.95 bar |
| Required suction rate at -0.5 bar | 1 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 4 g |
| Type of mounting | Screw-in |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Compressed air filter material | Sintered bronze |
