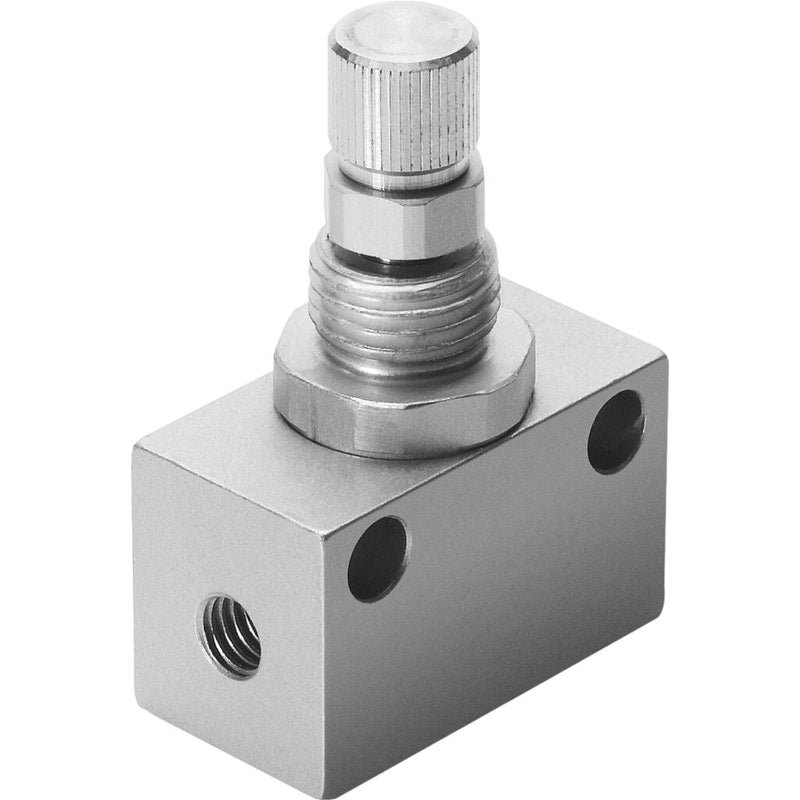

Throttle valve
GRO-1/8-B
151216
GTIN 4052568069957
Vendor Festo
- Valve function
- Flow control function
- Standard nominal flow rate in flow control direction
- 210 l/min
- Pneumatic connection 1
- G1/8
- Operating pressure
- 0 bar - 10 bar
- Adjusting element
- Knurled screw
Regular price
$88.54
Unit price
GRO-1/8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRO-1/8-B
Regular price
$88.54
Unit price
GRO-1/8-B is backordered and will ship as soon as it is back in stock.
| Type code | GRO |
|---|---|
| Valve function | Flow control function |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Adjusting element | Knurled screw |
| Type of mounting | Front panel mountingOptionally:With through-hole |
| Standard nominal flow rate in flow control direction | 210 l/min |
| Operating pressure | 0 bar ... 10 bar |
| Ambient temperature | -20 °C ... 60 °C |
| Housing material | Wrought aluminum alloy |
| Nominal width | 3 mm |
| Mounting position | Any |
| Symbol | 991454 |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Observe the information on the certificateZone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 60 °C |
| Product weight | 31 g |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Material of adjusting screw | High-alloy steel |
| Nut material | Wrought aluminum alloy |
| Sleeve material | POM |
