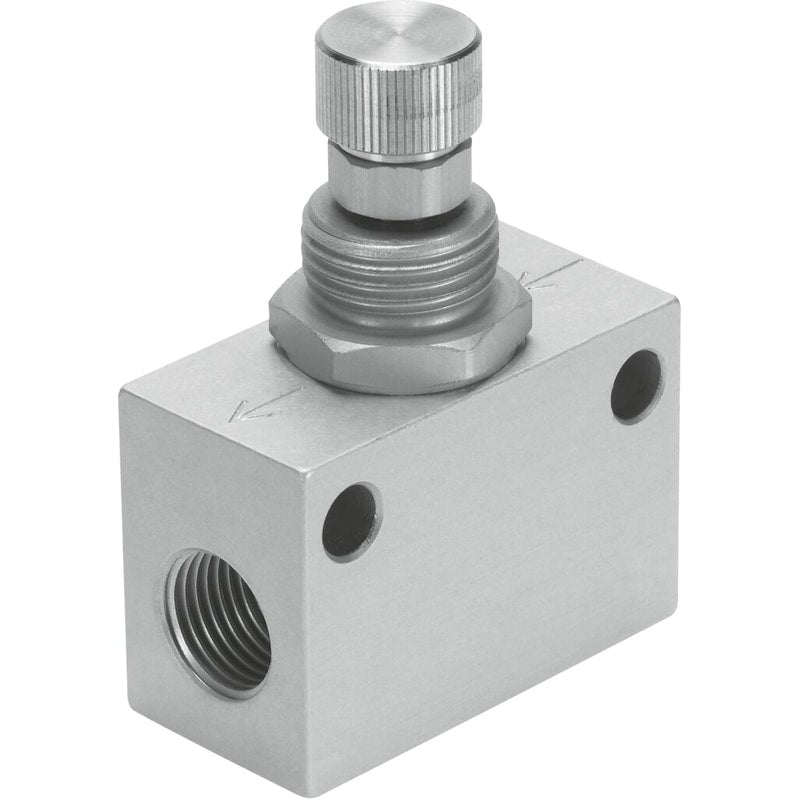

One-way flow control valve
GR-1/8-B
151215
GTIN 4052568010690
Vendor Festo
- Valve function
- Flow control non-return function
- Standard nominal flow rate in flow control direction
- 210 l/min
- Pneumatic connection 1
- G1/8
- Adjusting element
- Knurled screw
Regular price
$87.16
Unit price
GR-1/8-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GR-1/8-B
Regular price
$87.16
Unit price
GR-1/8-B is backordered and will ship as soon as it is back in stock.
| Type code | GR |
|---|---|
| Valve function | Flow control non-return function |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Adjusting element | Knurled screw |
| Type of mounting | Front panel mountingOptionally:With through-hole |
| Standard nominal flow rate in flow control direction | 210 l/min |
| Standard nominal flow rate in non-return direction | 180 l/min ... 275 l/min |
| Operating pressure | 0.5 bar ... 10 bar |
| Ambient temperature | -20 °C ... 60 °C |
| Housing material | Wrought aluminum alloy |
| Mounting position | Any |
| Symbol | 991453 |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Observe the information on the certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 60 °C |
| Nominal width | 3 mm |
| Product weight | 31 g |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Sleeve material | POM |
| Material of adjusting screw | High-alloy steel |
