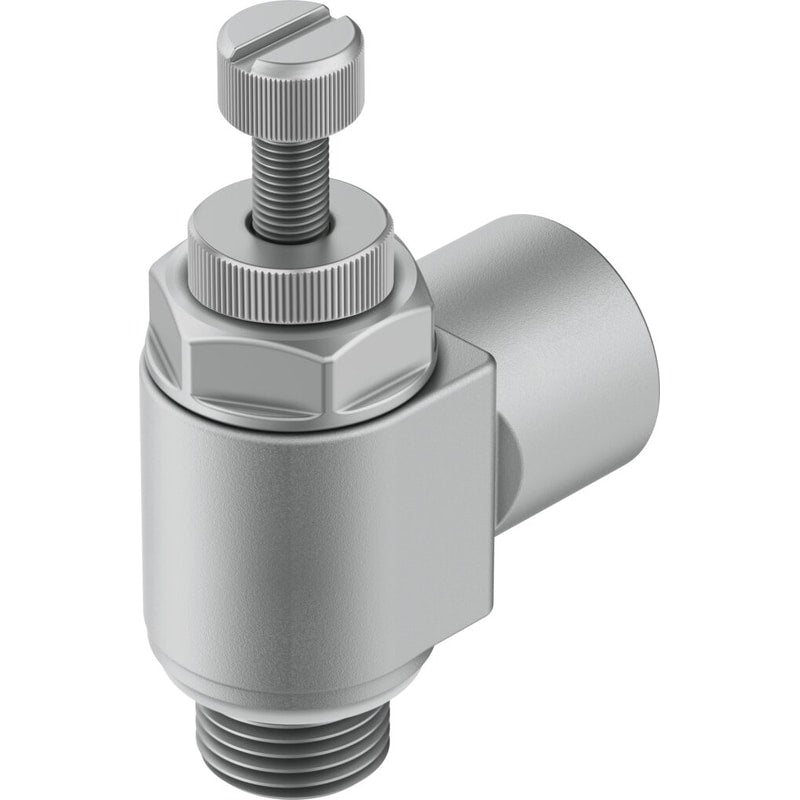

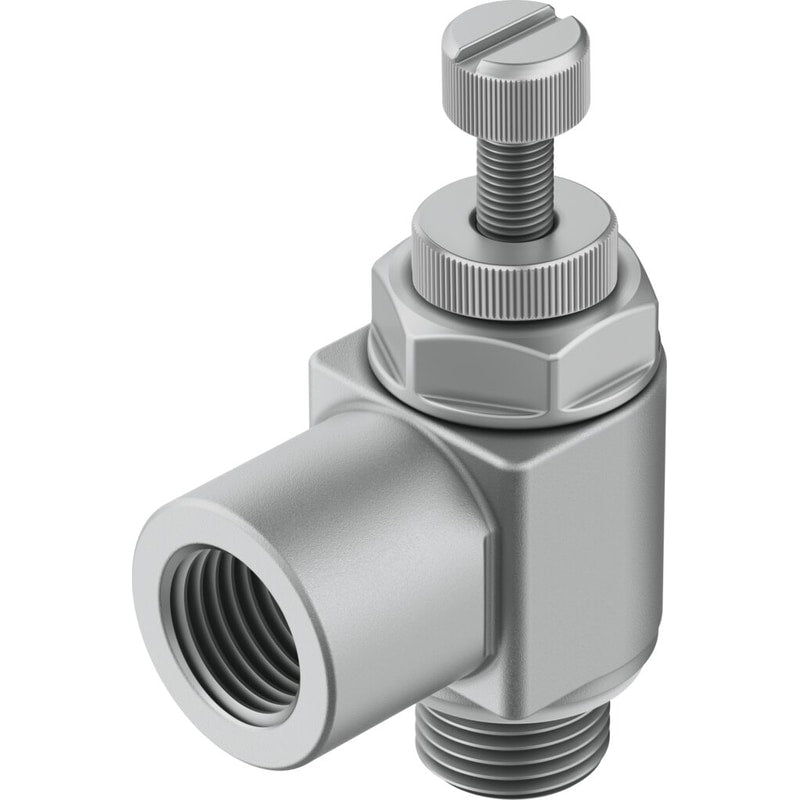

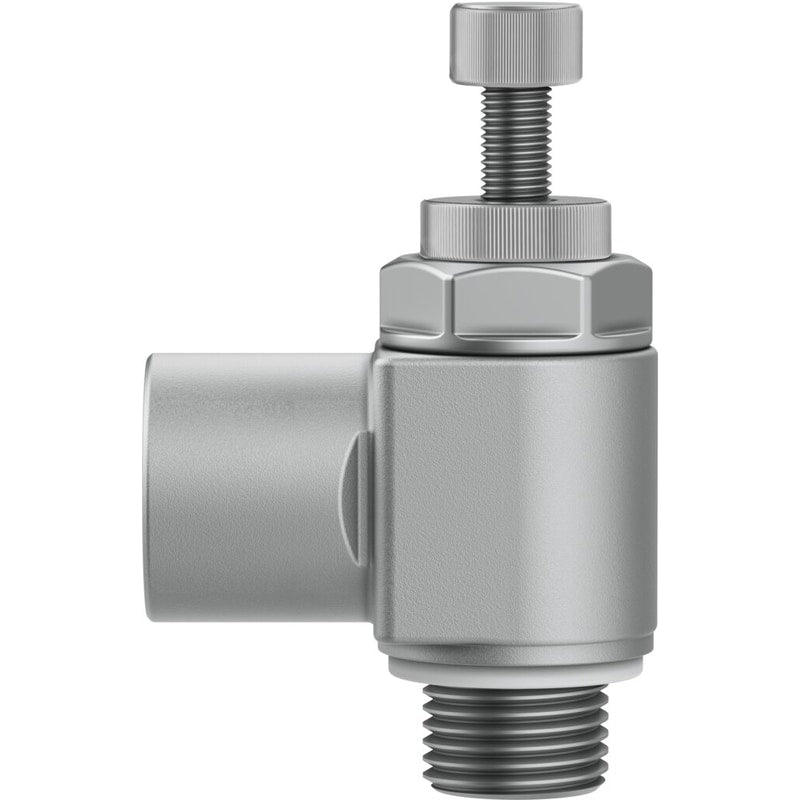

One-way flow control valve
GRLZ-1/8-RS-B
151192
GTIN 4052568069919
Vendor Festo
- Valve function
- Supply air flow control non-return function
- Standard nominal flow rate in flow control direction
- 340 l/min
- Pneumatic connection 1
- G1/8
- Adjusting element
- Knurled screw
Regular price
$51.38
Unit price
GRLZ-1/8-RS-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLZ-1/8-RS-B
Regular price
$51.38
Unit price
GRLZ-1/8-RS-B is backordered and will ship as soon as it is back in stock.
| Type code | GRLZ |
|---|---|
| Valve function | Supply air flow control non-return function |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Adjusting element | Knurled screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 340 l/min |
| Standard nominal flow rate in non-return direction | 260 l/min ... 420 l/min |
| Ambient temperature | -10 °C ... 60 °C |
| Mounting position | Any |
| Symbol | 991453 |
| Operating pressure for entire temperature range | 0.3 bar ... 10 bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 615 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 470 l/min ... 760 l/min |
| Explosion prevention and protection | Zone 1 (ATEX)Observe the information on the certificateZone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Max. tightening torque | 6 Nm |
| Product weight | 30 g |
| Material of screwed trunnion | Wrought aluminum alloy |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Swivel joint material | Die-cast zinc |
