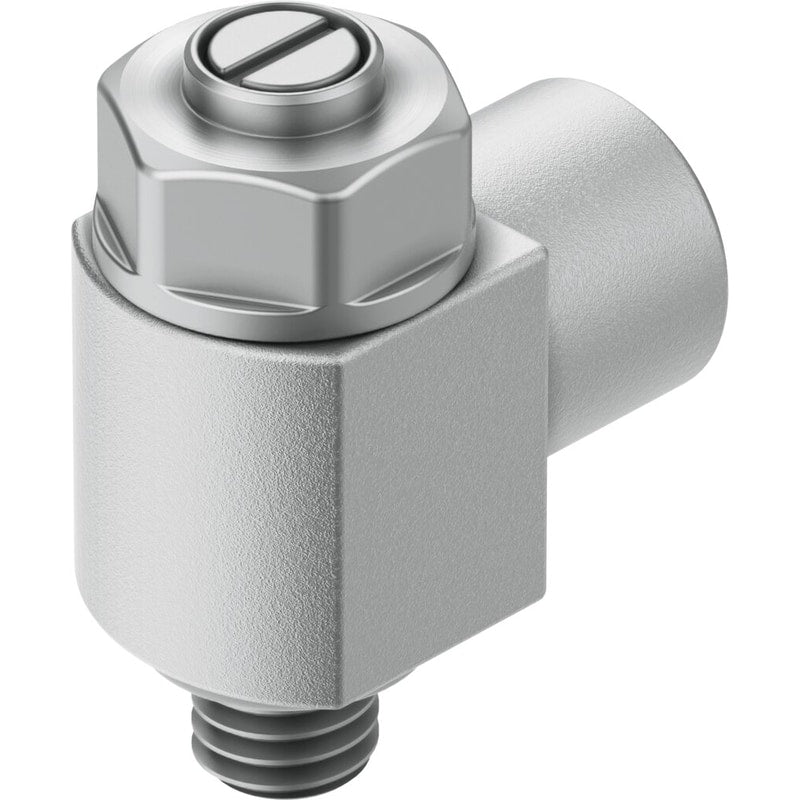

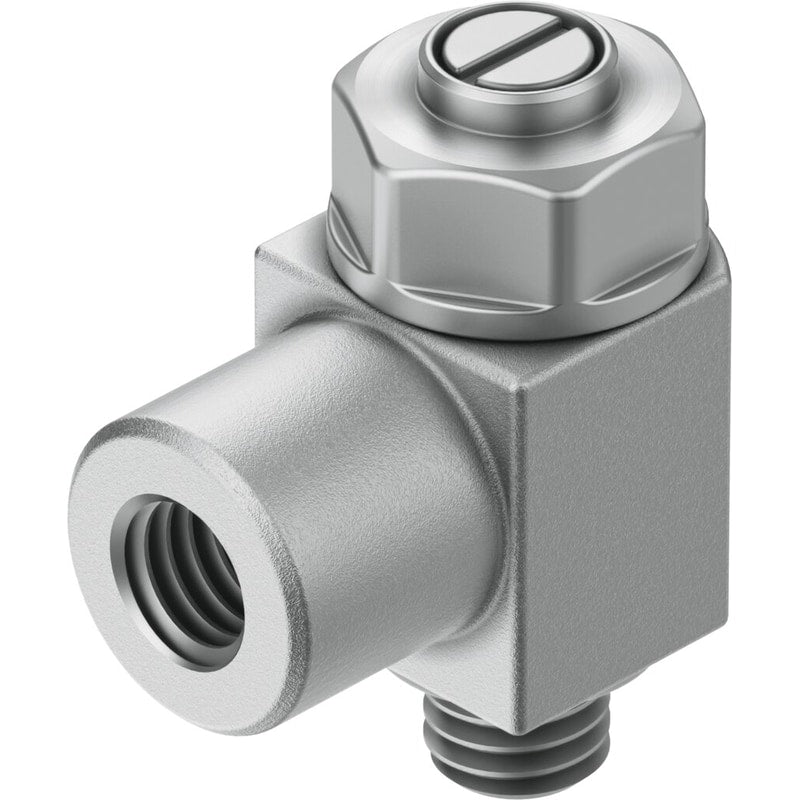

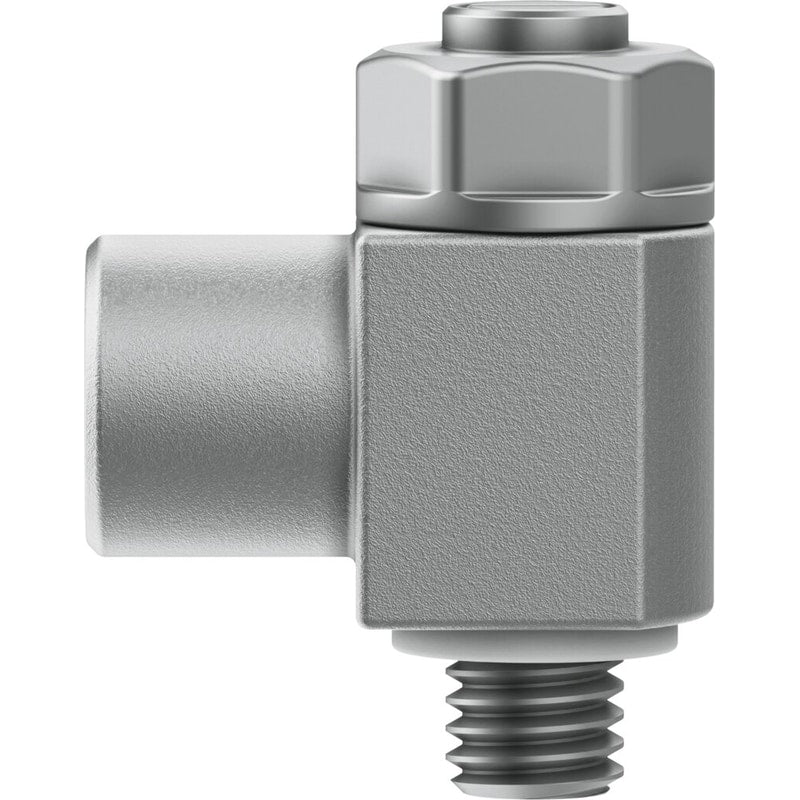

One-way flow control valve
GRLZ-M5-B
151183
GTIN 4052568010621
Vendor Festo
- Valve function
- Supply air flow control non-return function
- Standard nominal flow rate in flow control direction
- 95 l/min
- Pneumatic connection 1
- M5
- Adjusting element
- Slotted screw
Regular price
$40.49
Unit price
GRLZ-M5-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLZ-M5-B
Regular price
$40.49
Unit price
GRLZ-M5-B is backordered and will ship as soon as it is back in stock.
| Type code | GRLZ |
|---|---|
| Valve function | Supply air flow control non-return function |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 95 l/min |
| Standard nominal flow rate in non-return direction | 76 l/min ... 95 l/min |
| Operating pressure | 0.2 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Mounting position | Any |
| Symbol | 991453 |
| Standard flow rate in flow control direction 6 -> 0 bar | 169 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 135 l/min ... 170 l/min |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 2 (ATEX)Observe the information on the certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Nominal width | 2 mm |
| Max. tightening torque | 1.5 Nm |
| Product weight | 11 g |
| Material of screwed trunnion | BrassNickel-plated |
| Note on materials | RoHS-compliant |
| Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc |
