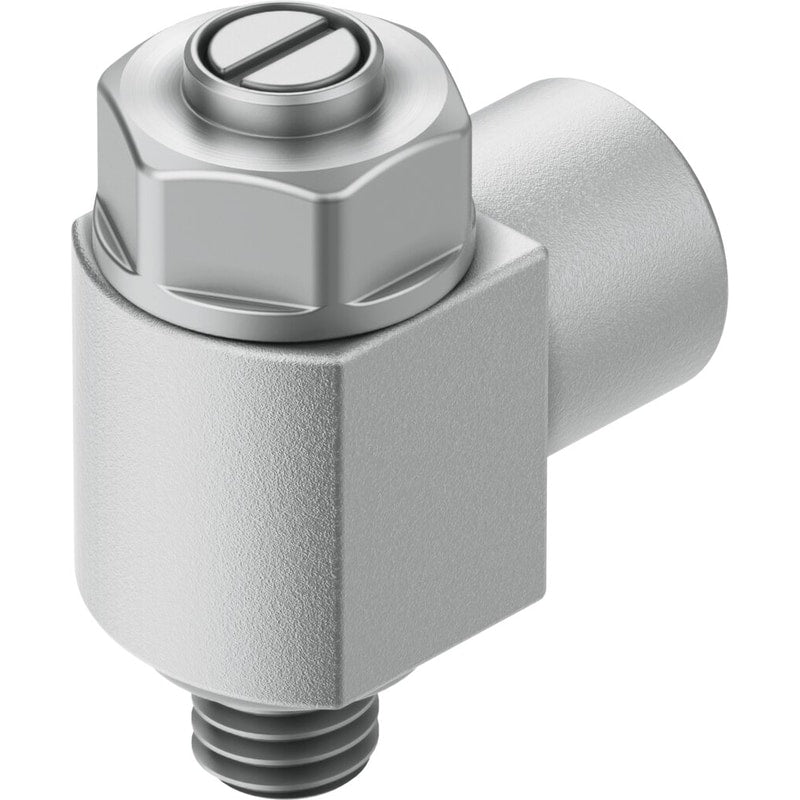

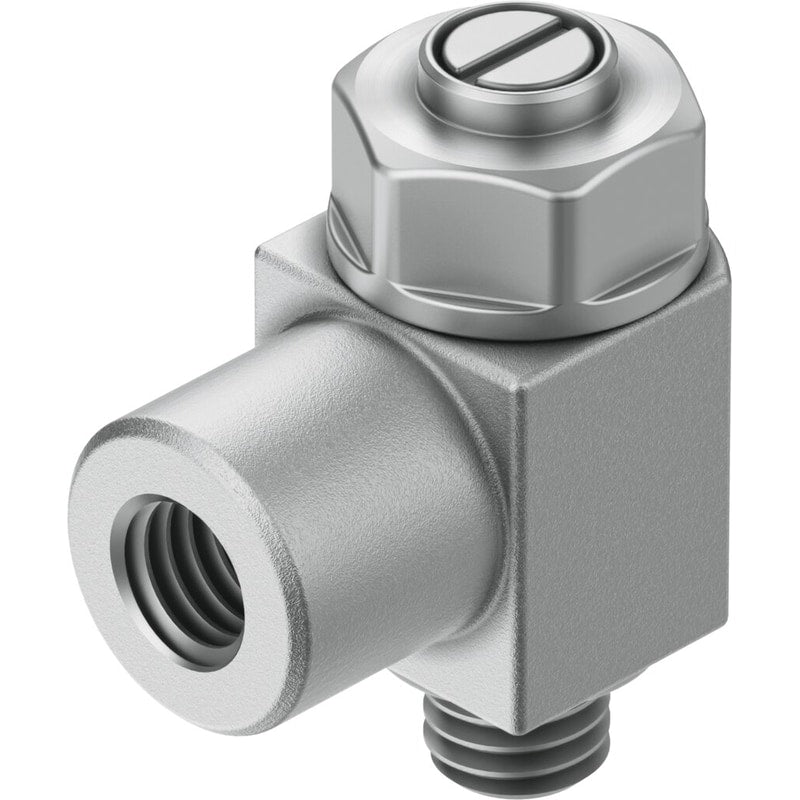

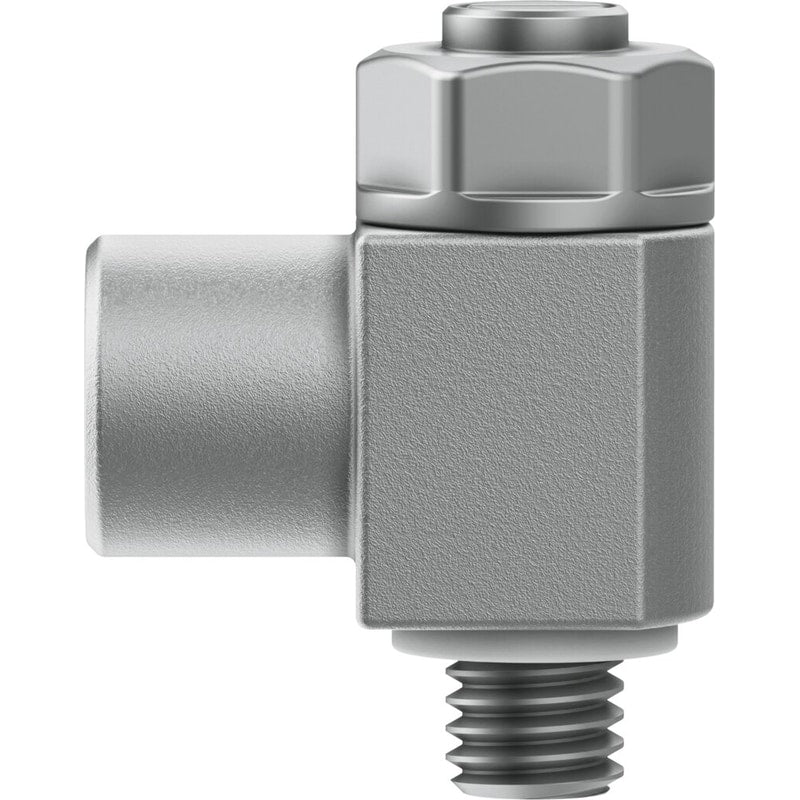

Throttle valve
GRLO-M5-B
151181
GTIN 4052568010614
Vendor Festo
- Valve function
- Flow control function
- Standard nominal flow rate in flow control direction
- 95 l/min
- Pneumatic connection 1
- M5
- Operating pressure
- 0 bar - 10 bar
- Adjusting element
- Slotted screw
Regular price
$41.35
Unit price
GRLO-M5-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLO-M5-B
Regular price
$41.35
Unit price
GRLO-M5-B is backordered and will ship as soon as it is back in stock.
| Type code | GRLO |
|---|---|
| Valve function | Flow control function |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 95 l/min |
| Operating pressure | 0 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Nominal width | 2 mm |
| Mounting position | Any |
| Symbol | 991454 |
| Standard flow rate in flow control direction 6 -> 0 bar | 169 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Max. tightening torque | 1.5 Nm |
| Product weight | 11 g |
| Material of screwed trunnion | BrassNickel-plated |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc |
