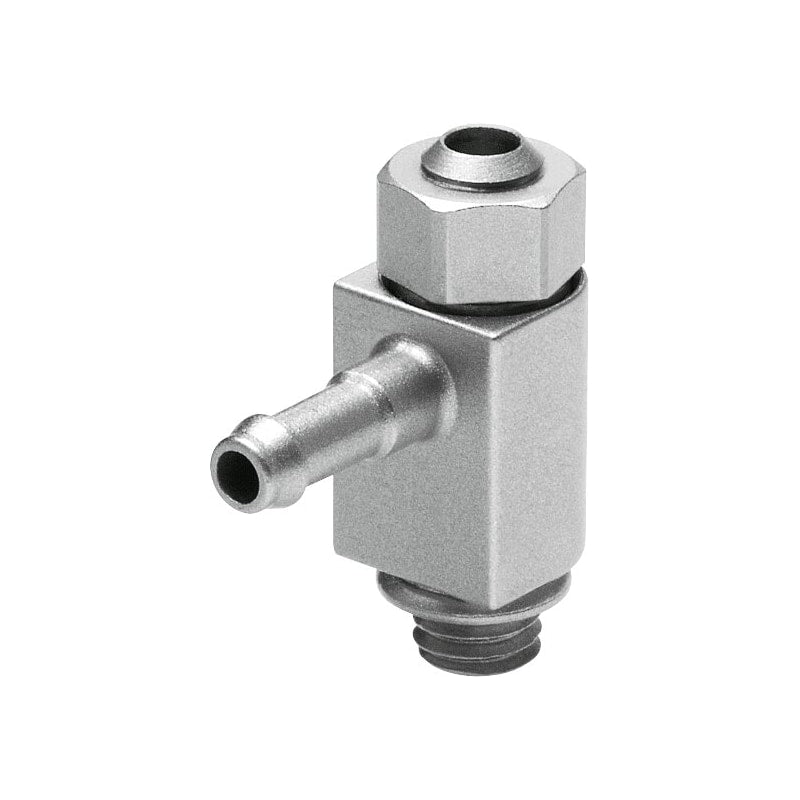

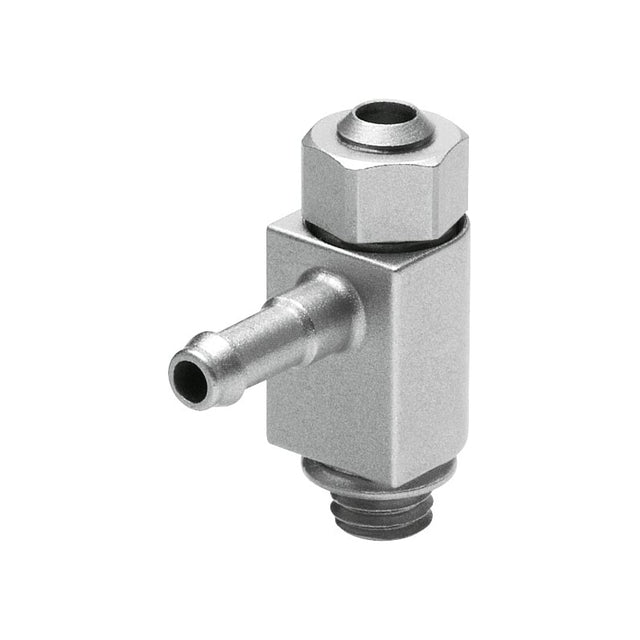

One-way flow control valve
GRLA-M5-PK-4-B
151162
GTIN 4052568030544
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 83 l/min
- Pneumatic connection 1
- PK-4
- Adjusting element
- Slotted screw
Regular price
$36.95
Unit price
GRLA-M5-PK-4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRLA-M5-PK-4-B
Regular price
$36.95
Unit price
GRLA-M5-PK-4-B is backordered and will ship as soon as it is back in stock.
| Type code | GRLA |
|---|---|
| Maritime classification | See certificate |
| Valve function | Exhaust air flow control non-return function |
| Pneumatic connection 1 | PK-4 |
| Pneumatic connection 2 | M5 |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 83 l/min |
| Standard nominal flow rate in non-return direction | 76 l/min ... 88 l/min |
| Operating pressure | 0.2 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Mounting position | Any |
| Symbol | 991452 |
| Standard flow rate in flow control direction 6 -> 0 bar | 140 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 128 l/min ... 148 l/min |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX)Zone 1 (ATEX)Zone 21 (ATEX)Observe the information on the certificate |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -10 °C ... 60 °C |
| Nominal width | 2 mm |
| Max. tightening torque | 1.5 Nm |
| Product weight | 10 g |
| Material of screwed trunnion | Nickel-plated |
| Seals material | NBR |
| Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc |
