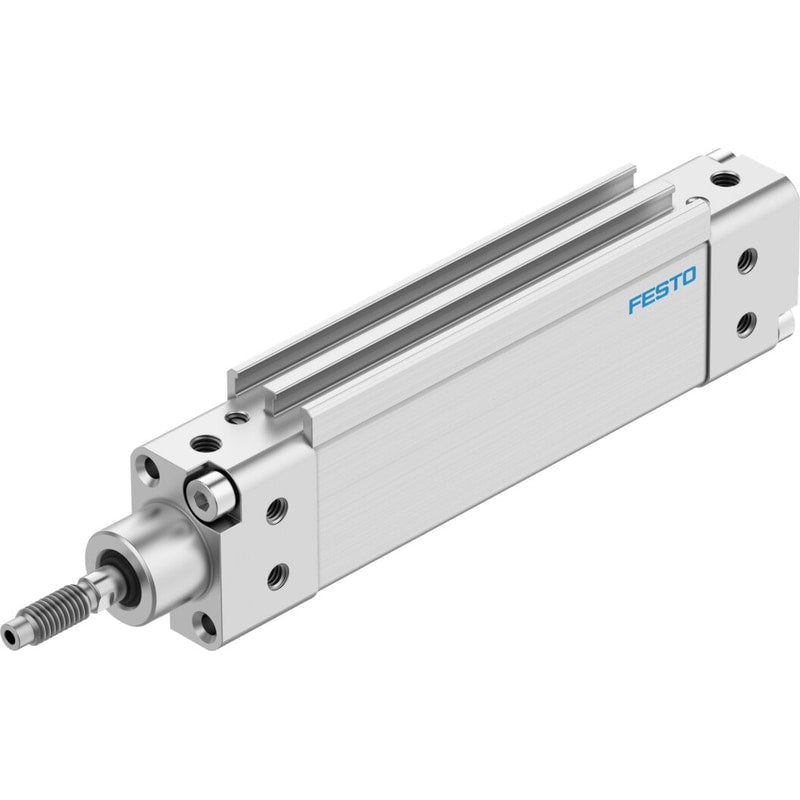

Flat cylinder
DZH-16-50-PPV-A
151147
GTIN 4052568116910
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 16 mm - Equivalent diameter
- Theoretical force at 6 bar, advancing
- 121 N
- Stroke
- 50 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$351.31
Unit price
DZH-16-50-PPV-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DZH-16-50-PPV-A
Regular price
$351.31
Unit price
DZH-16-50-PPV-A is backordered and will ship as soon as it is back in stock.
| Stroke | 50 mm |
|---|---|
| Piston diameter | 16 mmEquivalent diameter |
| Max. angle of rotation of the piston rod +/- | 3.1 deg |
| Type code | DZH |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Design | Piston rodPiston |
| Position sensing | For proximity sensor |
| Symbol | 991235 |
| Protection against torsion/guide | Oval piston |
| Operating pressure | 1 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Cushioning length | 14 mm |
| Max. torque for protection against rotation | 0.5 Nm |
| Theoretical force at 6 bar, retracting | 104 N |
| Theoretical force at 6 bar, advancing | 121 N |
| Additional weight per 10Â mm stroke | 11 g |
| Basic weight with 0Â mm stroke | 140 g |
| Type of mounting | Optionally:With internal threadWith accessories |
| Note on materials | RoHS-compliant |
| Cover material | Aluminum |
| Seals material | TPE-U(PU) |
| Housing material | Aluminum |
| Piston rod material | High-alloy steel |
