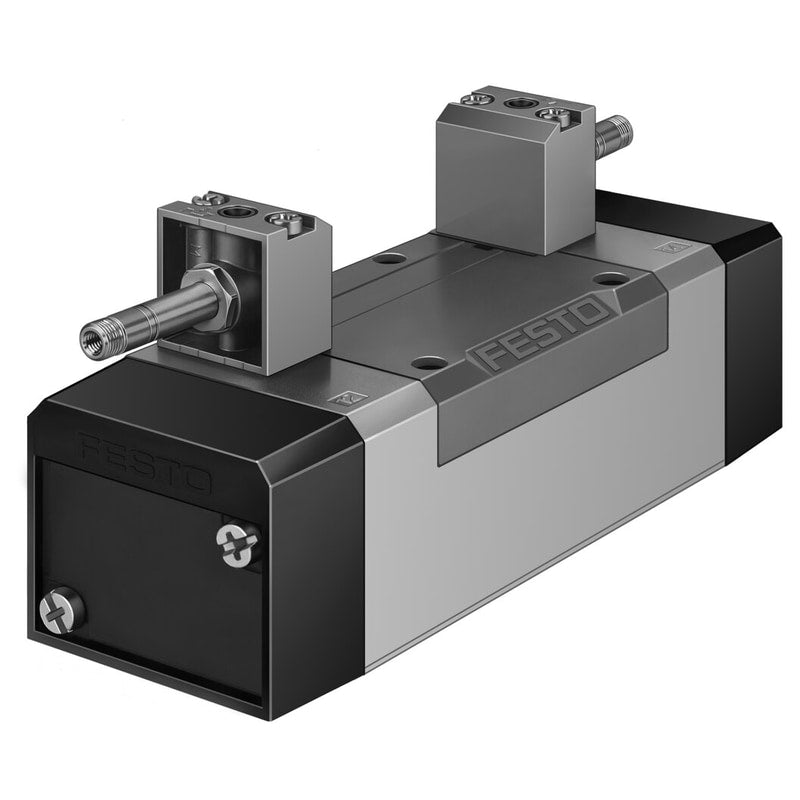

Air solenoid valve
MFH-5/3G-D-3-S-C
151034
GTIN 4052568116668
Vendor Festo
- Valve function
- 5/3, closed
- Normal nominal flow rate (normalized to DIN 1343)
- 4100 l/min
- Pneumatic connection 1
- Sub-base, size 3 as per ISO 5599-1
- Actuation type
- Electrical
Regular price
$590.20
Unit price
MFH-5/3G-D-3-S-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MFH-5/3G-D-3-S-C
Regular price
$590.20
Unit price
MFH-5/3G-D-3-S-C is backordered and will ship as soon as it is back in stock.
| Valve function | 5/3, closed |
|---|---|
| Maritime classification | See certificate |
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 65 mm |
| Standard nominal flow rate | 4100 l/min |
| Pneumatic working port | G1/2Sub-base, size 3 as per ISO 5599-1 |
| Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | -0.9 bar ... 16 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Nominal width | 14.5 mm |
| Width dimension | 71 mm |
| Type code | MFH |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | Non-detentingDetenting via accessory |
| ISO code | 369 |
| Type of control | Pilot-controlled |
| Pilot air supply port | External |

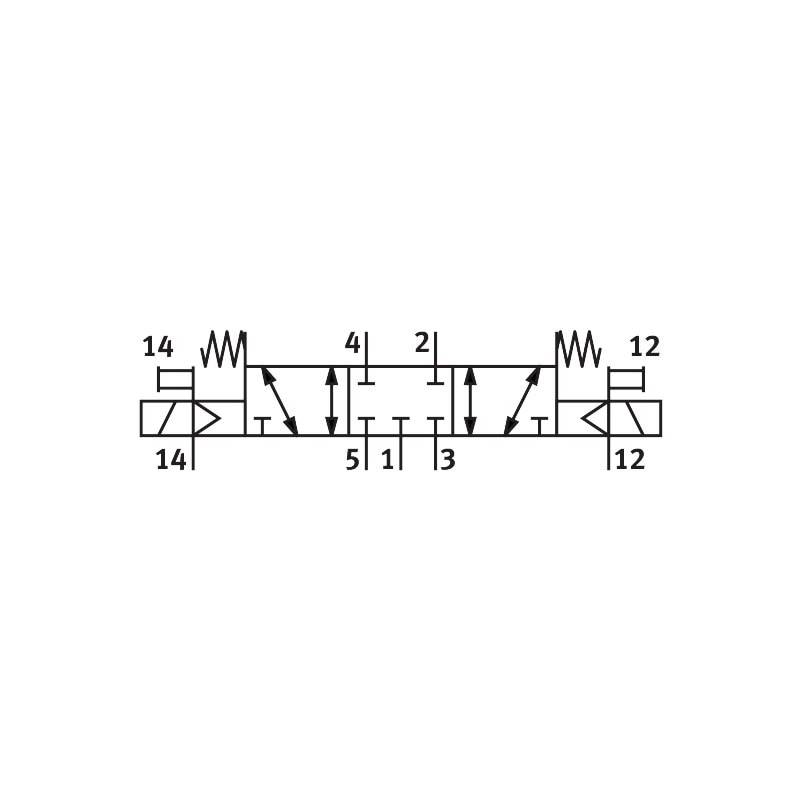

| Symbol | 991076 |
| Pilot pressure | 3 bar ... 10 bar |
| Switching time off | 77 ms |
| On switching time | 36 ms |
| Max. positive test pulse with 0 signal | 2200 µs |
| Max. negative test pulse on 1 signal | 3700 µs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Temperature of medium | -10 °C ... 60 °C |
| Noise level | 85 dB(A) |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C ... 40 °C |
| Product weight | 1040 g |
| Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | With through-hole and screwOn sub-base |
| Pilot exhaust air port 82 | M5 |
| Pilot exhaust air port 84 | M5 |
| Pilot air port 12 | Sub-base, size 3 as per ISO 5599-1 |
| Pilot air port 14 | Sub-base, size 3 as per ISO 5599-1 |
| Pneumatic connection 1 | Sub-base, size 3 as per ISO 5599-1 |
| Pneumatic connection 2 | Sub-base, size 3 as per ISO 5599-1 |
| Pneumatic connection 3 | Sub-base, size 3 as per ISO 5599-1 |
| Pneumatic connection 4 | Sub-base, size 3 as per ISO 5599-1 |
| Pneumatic connection 5 | Sub-base, size 3 as per ISO 5599-1 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Die-cast aluminum |
