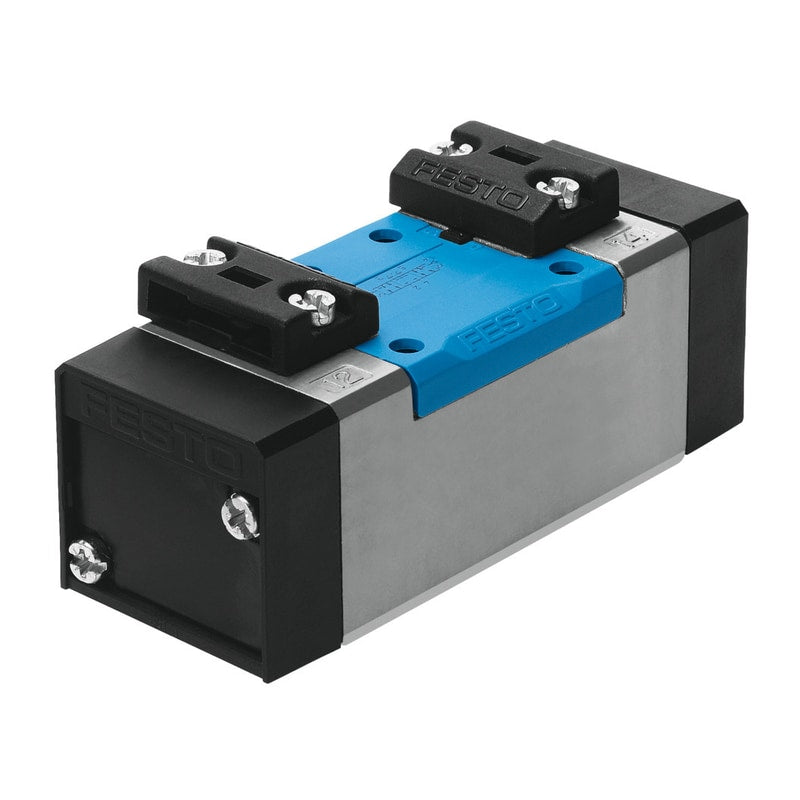

Pneumatic valve
VL-5/3G-D-1-C
151010
GTIN 4052568116569
Vendor Festo
- Valve function
- 5/3, closed
- Normal nominal flow rate (normalized to DIN 1343)
- 1200 l/min
- Pneumatic connection 1
- Sub-base, size 1 as per ISO 5599-1
- Actuation type
- Pneumatic
Regular price
$197.03
Unit price
VL-5/3G-D-1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VL-5/3G-D-1-C
Regular price
$197.03
Unit price
VL-5/3G-D-1-C is backordered and will ship as soon as it is back in stock.
| Type code | VL |
|---|---|
| Maritime classification | See certificate |
| Lap | Overlap |
| Valve function | 5/3, closed |
| Actuation type | Pneumatic |
| Width | 42 mm |
| Standard nominal flow rate | 1200 l/min |
| Pneumatic working port | G1/4Sub-base, size 1 as per ISO 5599-1 |
| Operating pressure | -0.9 bar ... 16 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Certification | UL - Recognized (OL) |
| Nominal width | 8 mm |
| Width dimension | 43 mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 5599-1 |
| Manual override | None |
| ISO code | 106 |
| Type of control | Direct |
| Flow direction | Reversible |

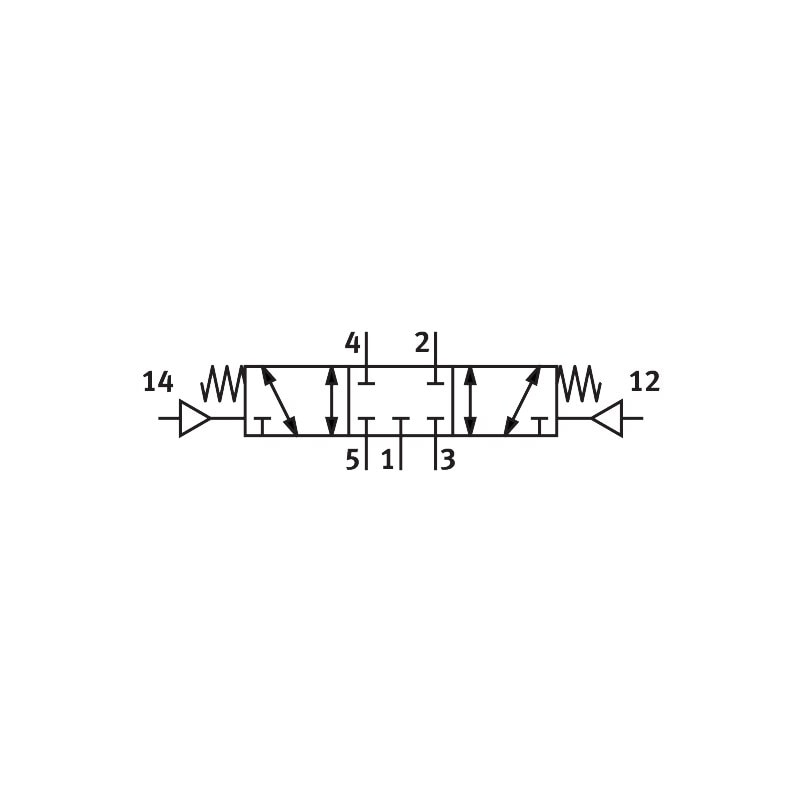

| Symbol | 991018 |
| Switching time off | 44 ms |
| On switching time | 7 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Temperature of medium | -10 °C ... 60 °C |
| Noise level | 85 dB(A) |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 320 g |
| Type of mounting | With through-holeOn sub-base |
| Pilot air port 12 | Sub-base, size 1 as per ISO 5599-1 |
| Pilot air port 14 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Die-cast aluminum |
