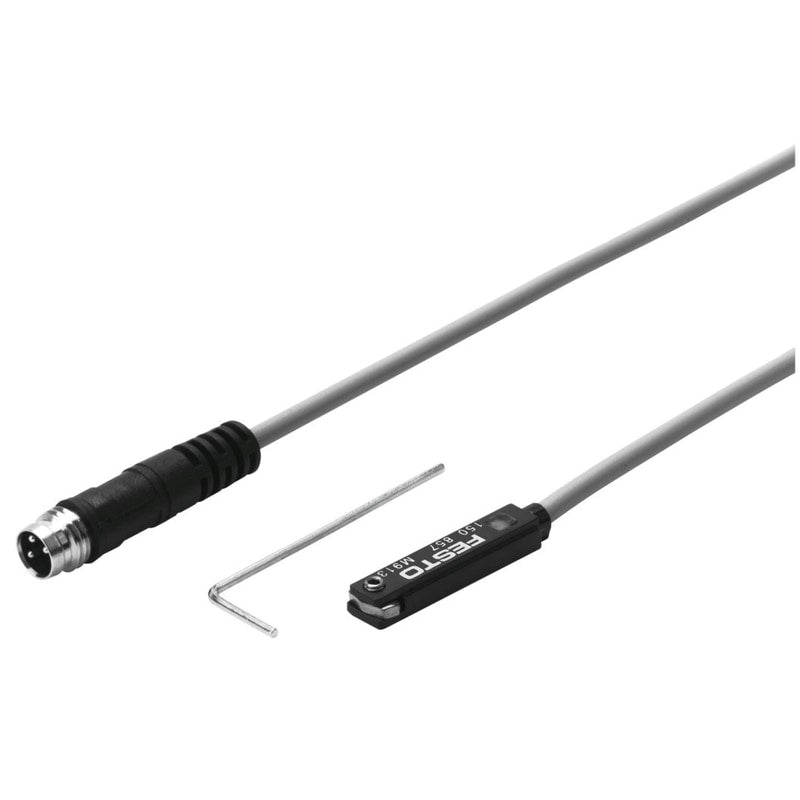

Proximity sensor
SME-8-S-LED-24
150857
GTIN 4052568010416
Vendor Festo
- DC operating voltage range
- 12 V - 30 V
- Switching element function
- N/O contact
- Switching output
- Contact-based, bipolar
Regular price
$73.90
Unit price
SME-8-S-LED-24 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SME-8-S-LED-24
Regular price
$73.90
Unit price
SME-8-S-LED-24 is backordered and will ship as soon as it is back in stock.
| Type code | SME |
|---|---|
| Design | for T-slot |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991148 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Measuring principle | Magnetic reed |
| Ambient temperature | -40 °C ... 70 °C |
| Switching output | Contact-based, bipolar |
| Switching element function | N/O contact |
| Reproducibility of switching value | +/- 0.1 mm |
| On time | 0.5 ms |
| Switch-off time | 0.03 ms |
| Max. output current | 500 mA |
| Min. switching capacity AC | 10 VA |
| Max. switching capacity DC | 10 W |
| Short-circuit protection | no |
| Overload protection | Not available |
| Operating voltage range AC | 12 V ... 30 V |
| DC operating voltage range | 12 V ... 30 V |
| Reverse polarity protection | no |
| Electrical connection | M8x1Cable with plug3-pin |
| Material of pin contacts | Nickel-platedBrass |
| Cable length | 0.3 m |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Can be inserted in slot lengthwiseClamped in T slot |
| Tightening torque | 0.2 Nm |
| Product weight | 8 g |
| Housing material | PCHigh-alloy stainless steelPETEpoxy resin |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67 |
| Insulation voltage | 50 V |
| Surge resistance | 0.8 kV |
| Contamination level | 3 |
