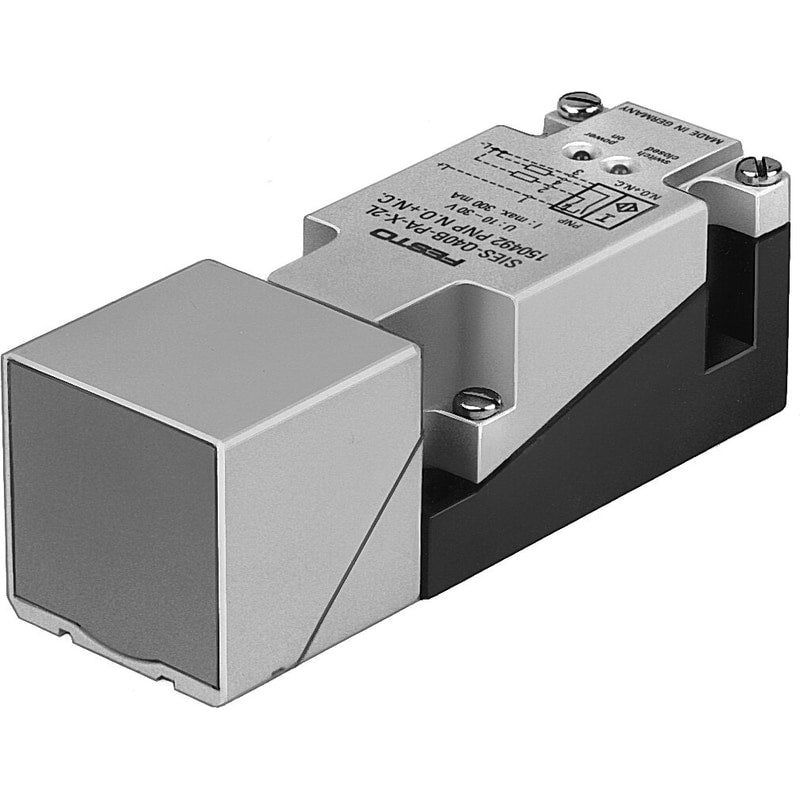

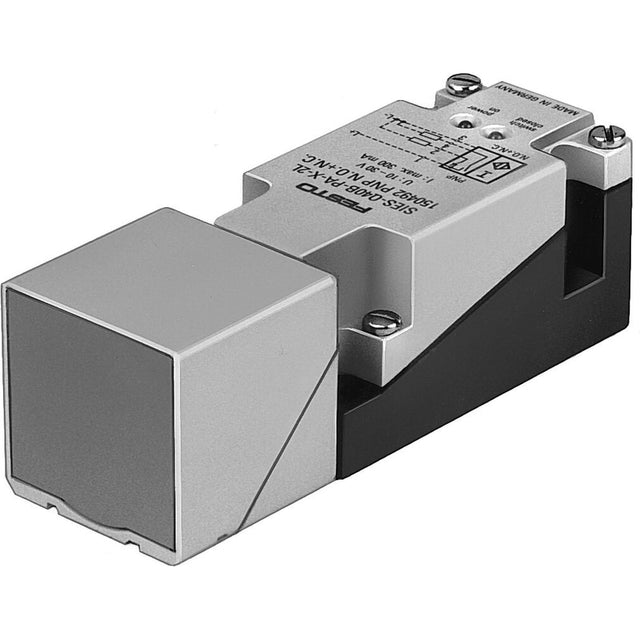

Proximity sensor
SIES-Q40B-PA-X-2L
150492
GTIN 4052568116507
Vendor Festo
- Size
- 40x40x120 mm
- Switching output
- PNP
- Switching element function
- Antivalent
- Electrical connection
- Screw terminal
- DC operating voltage range
- 10 V - 30 V
Regular price
$153.75
Unit price
SIES-Q40B-PA-X-2L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIES-Q40B-PA-X-2L
Regular price
$153.75
Unit price
SIES-Q40B-PA-X-2L is backordered and will ship as soon as it is back in stock.
| Type code | SIES |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991612 |
| Certification | RCM compliance markc UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 15 mm |
| Assured operating distance | 12.2 mm |
| Reduction factors | Steel St 37 = 1.0Stainless steel St 18/8 = 0.7Copper = 0.25Brass = 0.3Aluminum = 0.3 |
| Ambient temperature | -25 °C ... 85 °C |
| Repetition accuracy | 0.75 mm |
| Switching output | PNP |
| Switching element function | Antivalent |
| Max. switching frequency | 100 Hz |
| Max. switching frequency DC | 100 Hz |
| Max. output current as a function of temperature | 200 mA at <= 50 °C150 mA at <= 85 °C |
| Voltage drop | 3.5 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Idle current | ≤ 40 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | Screw terminal |
| Cable fitting | M20x1.5 |
| Approved cable diameter | 7.5 mm ... 12.5 mm |
| Size | 40x40x120 mm |
| Type of mounting | With through-hole |
| Mounting type | Flush |
| Product weight | 230 g |
| Housing material | PET |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Degree of protection | IP65 |
| Selection of additional sensor information | Special design |
| Electrical output | PNP |
| Selection of sensor version | Standard |
