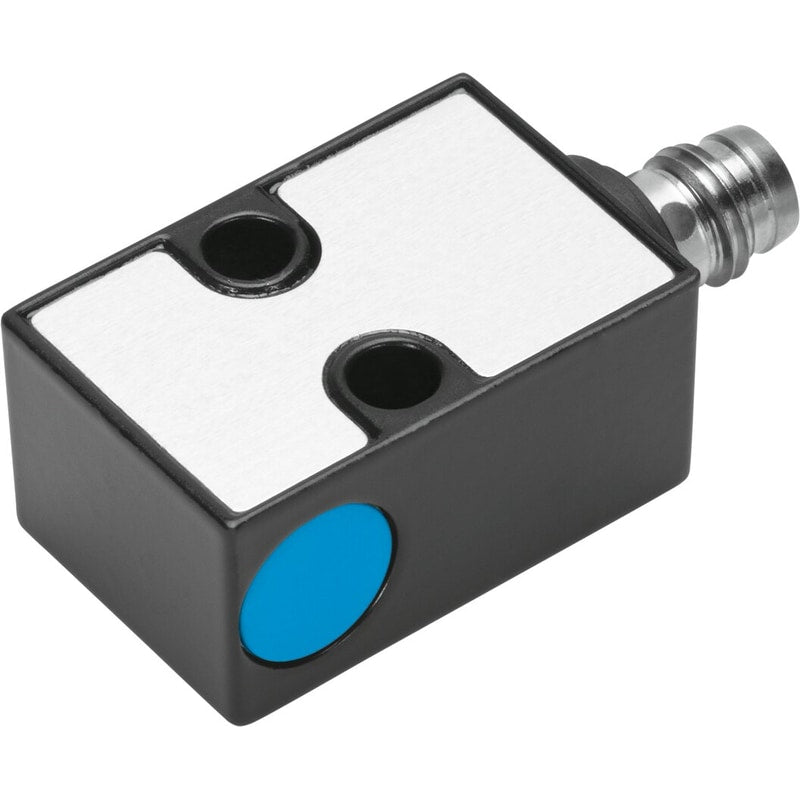

Proximity sensor
SIES-V3B-PS-S-L
150491
GTIN 4052568069773
Vendor Festo
- Size
- 15x20x30 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$115.47
Unit price
SIES-V3B-PS-S-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIES-V3B-PS-S-L
Regular price
$115.47
Unit price
SIES-V3B-PS-S-L is backordered and will ship as soon as it is back in stock.
| Type code | SIES |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991701 |
| Certification | RCM compliance markc UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 2 mm |
| Assured operating distance | 1.6 mm |
| Reduction factors | Stainless steel St 18/8 = 0.7Steel St 37 = 1.0Copper = 0.3Aluminum = 0.45Brass = 0.5 |
| Ambient temperature | -25 °C ... 85 °C |
| Repetition accuracy | 0.1 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 1200 Hz |
| Max. switching frequency DC | 1200 Hz |
| Max. output current as a function of temperature | 150 mA at <= 85 °C200 mA at <= 50 °C |
| Voltage drop | 3.2 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Idle current | ≤ 30 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | Plug3-pinM8x1 |
| Type of mounting | With through-hole |
| Mounting type | Flush |
| Product weight | 120 g |
| Housing material | Die-cast zinc |
| Switching status indication | LED yellow |
| Degree of protection | IP67 |
| Selection of additional sensor information | Special design |
| Electrical output | PNP |
| Selection of sensor version | Standard |
