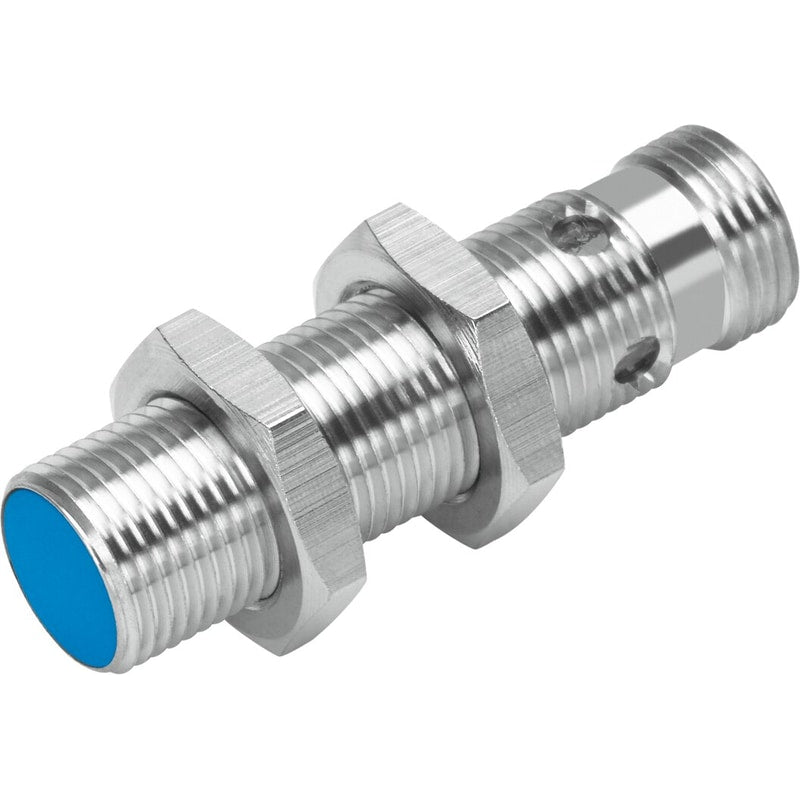

Proximity sensor
SIEH-M12B-PS-S-L
150451
GTIN 4052568069612
Vendor Festo
- Size
- M12
- Switching output
- PNP
- Switching element function
- N/O contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$104.57
Unit price
SIEH-M12B-PS-S-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEH-M12B-PS-S-L
Regular price
$104.57
Unit price
SIEH-M12B-PS-S-L is backordered and will ship as soon as it is back in stock.
| Type code | SIEH |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991701 |
| Certification | C-Tickc UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 4 mm |
| Assured operating distance | 3.24 mm |
| Reduction factors | Copper = 0.4Stainless steel St 18/8 = 0.8Steel St 37 = 1.0Aluminum = 0.4Brass = 0.5 |
| Ambient temperature | -25 °C ... 70 °C |
| Repetition accuracy under constant conditions | 0.2 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Hysteresis | ≤ 0.36 mm |
| Max. switching frequency | 2500 Hz |
| Max. output current | 200 mA |
| Voltage drop | ≤ 2 V |
| Inductive protective circuit | Installed |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | ± 10% |
| Idle current | ≤ 10 mA |
| Reverse polarity protection | for all electrical connections |
| Size | M12 |
| Type of mounting | With lock nut |
| Mounting type | Flush |
| Product weight | 30 g |
| Housing material | BrassPBTPNickel-plated |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Selection of additional sensor information | With increased switching distance |
| Electrical output | PNP |
| Selection of sensor version | Standard |
