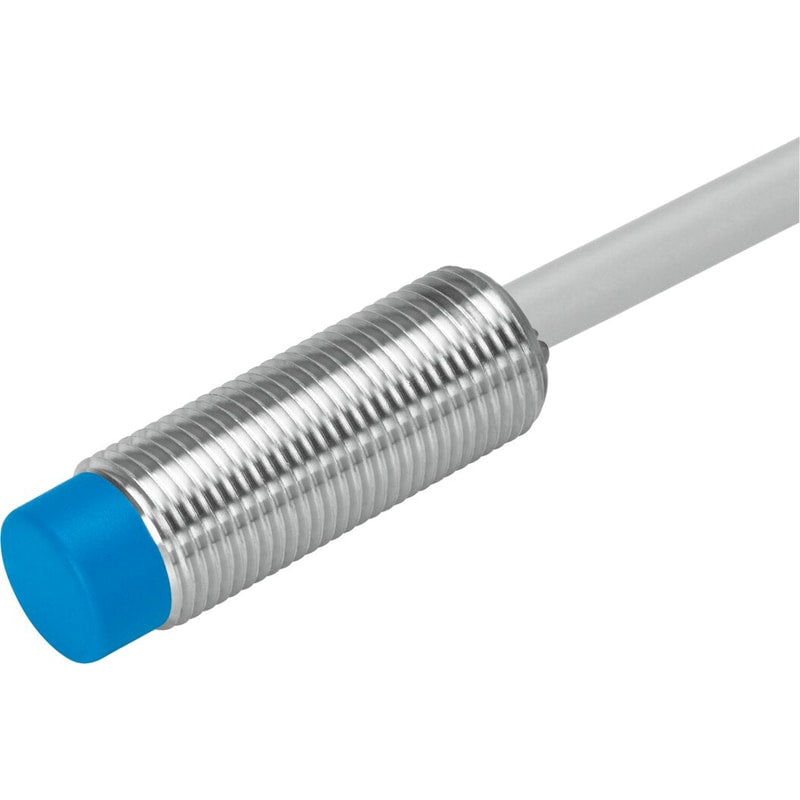

Proximity sensor
SIEN-M12NB-PO-K-L
150414
GTIN 4052568069247
Vendor Festo
- Size
- M12x1
- Switching output
- PNP
- Switching element function
- N/C contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$92.52
Unit price
SIEN-M12NB-PO-K-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEN-M12NB-PO-K-L
Regular price
$92.52
Unit price
SIEN-M12NB-PO-K-L is backordered and will ship as soon as it is back in stock.
| Type code | SIEN |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991613 |
| Certification | RCM compliance markc UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFE |
| Rated operating distance | 4 mm |
| Assured operating distance | 3.24 mm |
| Reduction factors | Steel St 37 = 1.0Aluminum = 0.5Copper = 0.5Stainless steel St 18/8 = 0.9Brass = 0.6 |
| Ambient temperature | -25 °C ... 70 °C |
| Repetition accuracy under constant conditions | 0.2 mm |
| Switching output | PNP |
| Switching element function | N/C contact |
| Hysteresis | ≤ 0.36 mm |
| Max. switching frequency | 2000 Hz |
| Max. output current | 200 mA |
| Voltage drop | ≤ 2 V |
| Inductive protective circuit | Installed |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | ± 10% |
| Idle current | ≤ 10 mA |
| Reverse polarity protection | for all electrical connections |
| Cable length | 2.5 m |
| Material of cable sheath | TPE-U(PUR) |
| Size | M12x1 |
| Type of mounting | With lock nut |
| Mounting type | Not flush |
| Product weight | 90 g |
| Housing material | BrassPBTPNickel-plated |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Selection of additional sensor information | With standard switching distance |
| Electrical output | PNP |
| Selection of sensor version | Standard |
