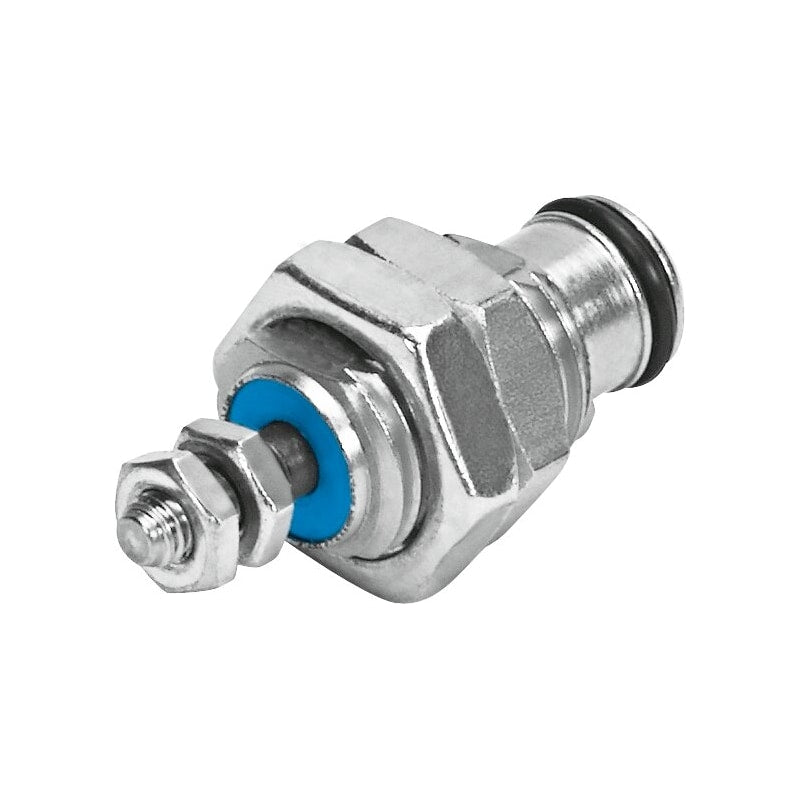

Cartridge cylinder
EGZ-10-15
15038
GTIN 4052568066635
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 10 mm
- Theoretical force at 6 bar, advancing
- 42 N
- Stroke
- 15 mm
- Cushioning
- No cushioning
Regular price
$83.02
Unit price
EGZ-10-15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGZ-10-15
Regular price
$83.02
Unit price
EGZ-10-15 is backordered and will ship as soon as it is back in stock.
cartridge cylinder EGZ-10-15 With double-ended male thread on cylinder housing . Stroke=15 mm, Piston diameter=10 mm, Cushioning=No cushioning, Assembly position=Any, Mode of operation=(* single-acting, * pushing action)
| Stroke | 15 mm |
|---|---|
| Piston diameter | 10 mm |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-actingpushing action |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | No |
| Variants | Single-ended piston rod |
| Operating pressure | 1.5 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Theoretical force at 6 bar | 42 N |
