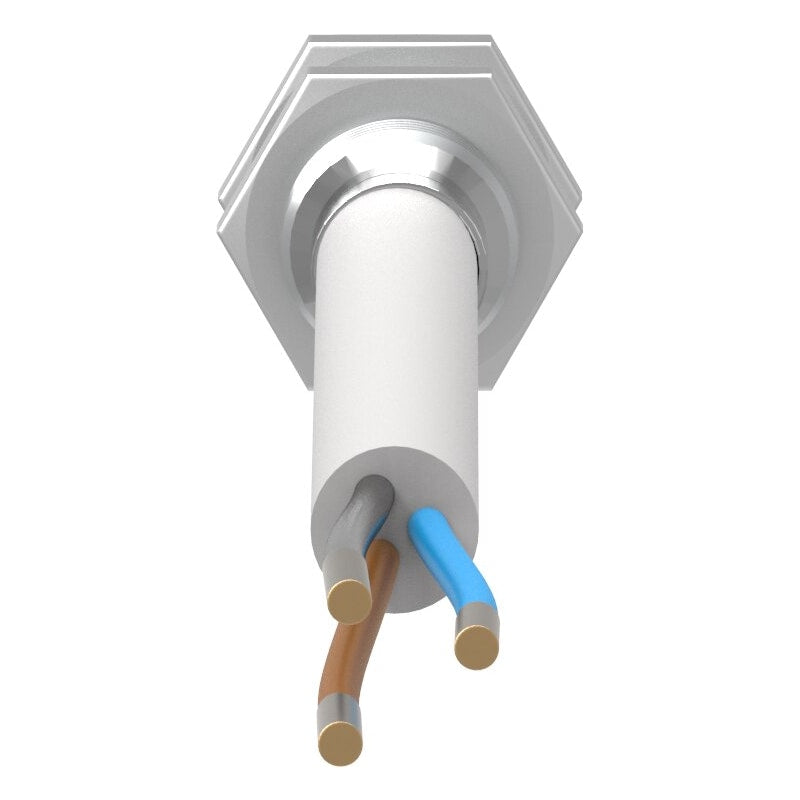

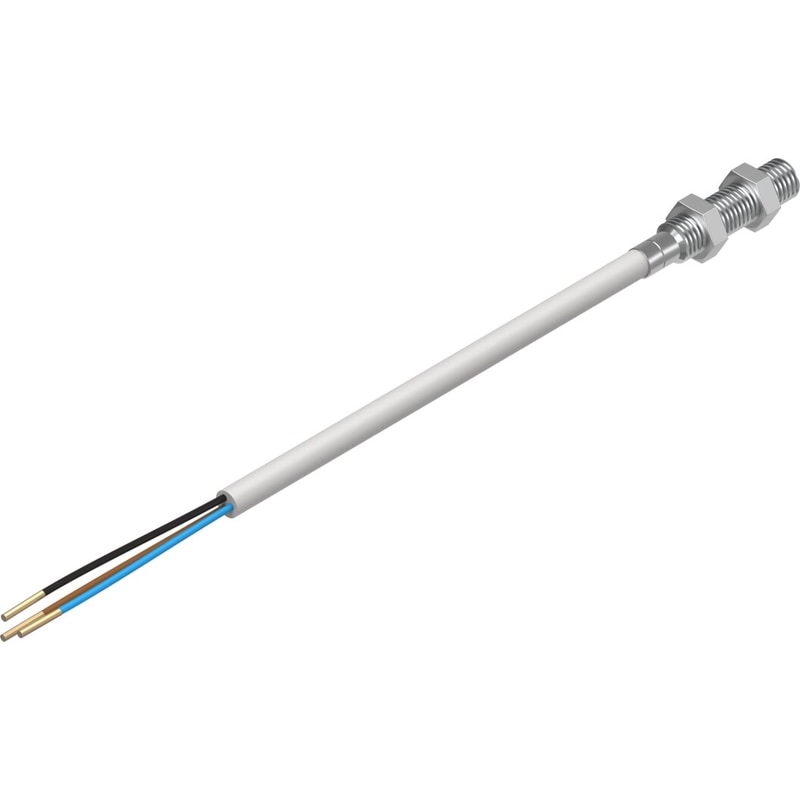

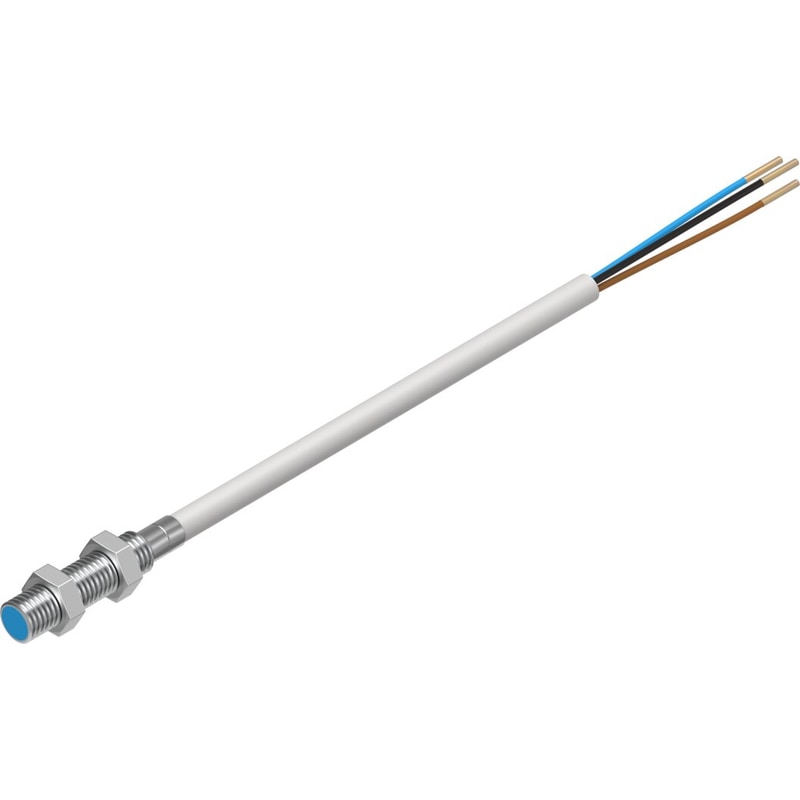

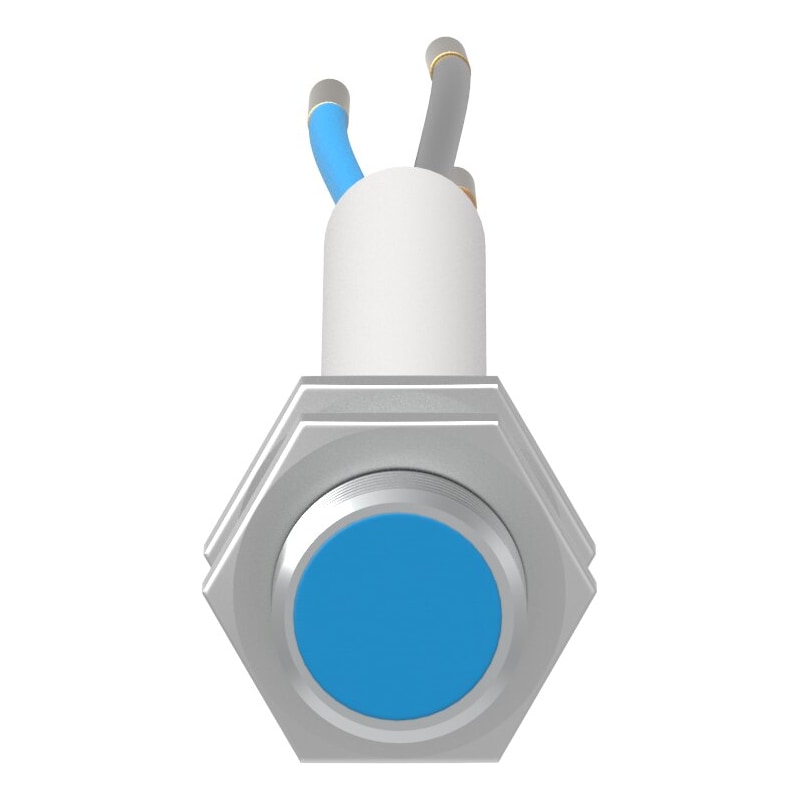

Proximity sensor
SIEN-M5B-PS-K-L
150370
GTIN 4052568068806
Vendor Festo
- Size
- M5x0.5
- Switching output
- PNP
- Switching element function
- N/O contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$121.65
Unit price
SIEN-M5B-PS-K-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEN-M5B-PS-K-L
Regular price
$121.65
Unit price
SIEN-M5B-PS-K-L is backordered and will ship as soon as it is back in stock.
| Type code | SIEN |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 991702 |
| Certification | RCM compliance markc UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Rated operating distance | 0.8 mm |
| Ambient temperature | -25 °C ... 70 °C |
| Repetition accuracy under constant conditions | 0.01 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 5000 Hz |
| Max. output current | 200 mA |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | Cable3-wire |
| Cable length | 2.5 m |
| Material of cable sheath | TPE-U(PUR) |
| Size | M5x0.5 |
| Mounting type | Flush |
| Product weight | 33.6 g |
| Housing material | High-alloy stainless steelPA |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Degree of protection | IP67 |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| Contamination level | 3 |
| Selection of additional sensor information | With standard switching distance |
| Electrical output | PNP |
| Selection of sensor version | Standard |
