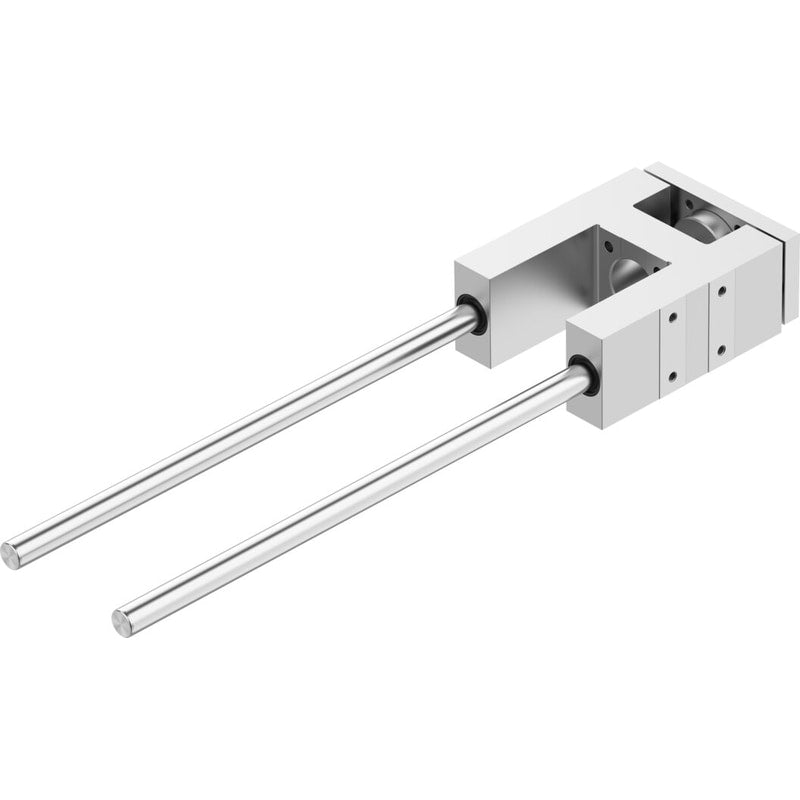

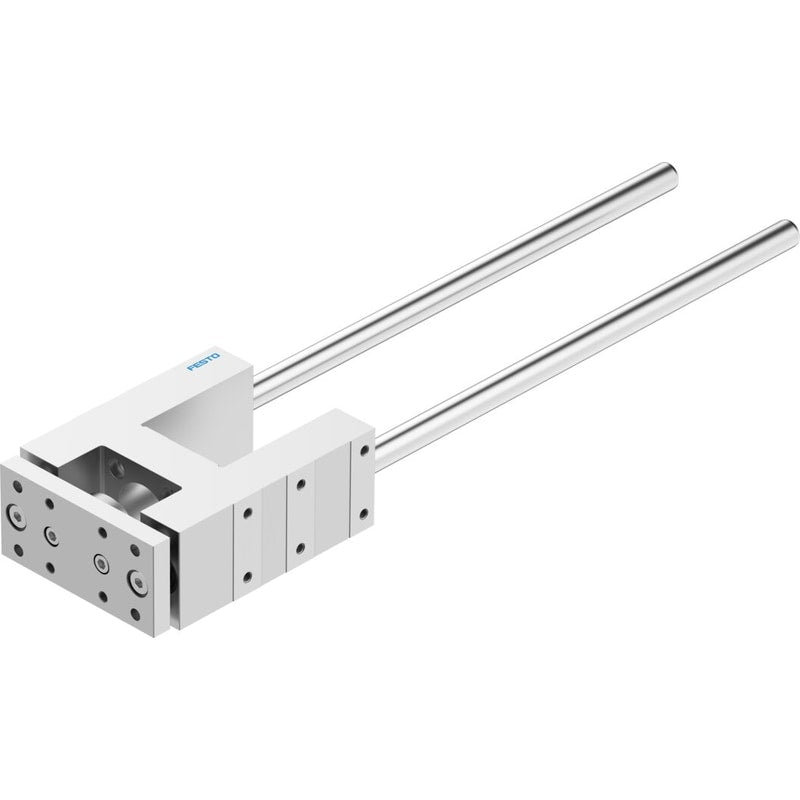

Guide unit
FENG-40-400-KF
150291
GTIN 4052568116484
Vendor Festo
Regular price
$1,347.65
Unit price
FENG-40-400-KF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FENG-40-400-KF
Regular price
$1,347.65
Unit price
FENG-40-400-KF is backordered and will ship as soon as it is back in stock.
| Size | 40 |
|---|---|
| Stroke | 400 mm |
| Type code | FENG |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Guide |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 22 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX) |
| Ambient temperature | -20 °C ... 80 °C |
| Max. force Fy | 1000 N |
| Max. force Fy static | 1260 N |
| Max. force Fz | 1000 N |
| Max. force Fz static | 1260 N |
| Max. torque Mx | 44 Nm |
| Max. static moment Mx | 55 Nm |
| Max. torque My | 52 Nm |
| Max. static moment My | 65 Nm |
| Max. torque Mz | 52 Nm |
| Max. static moment Mz | 65 Nm |
| Displacement force | 15 N |
| Product weight | 3650 g |
| Type of mounting | With internal thread |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of guide component | Tempered steel |
| Material of yoke plate | Wrought aluminum alloy, anodized |
