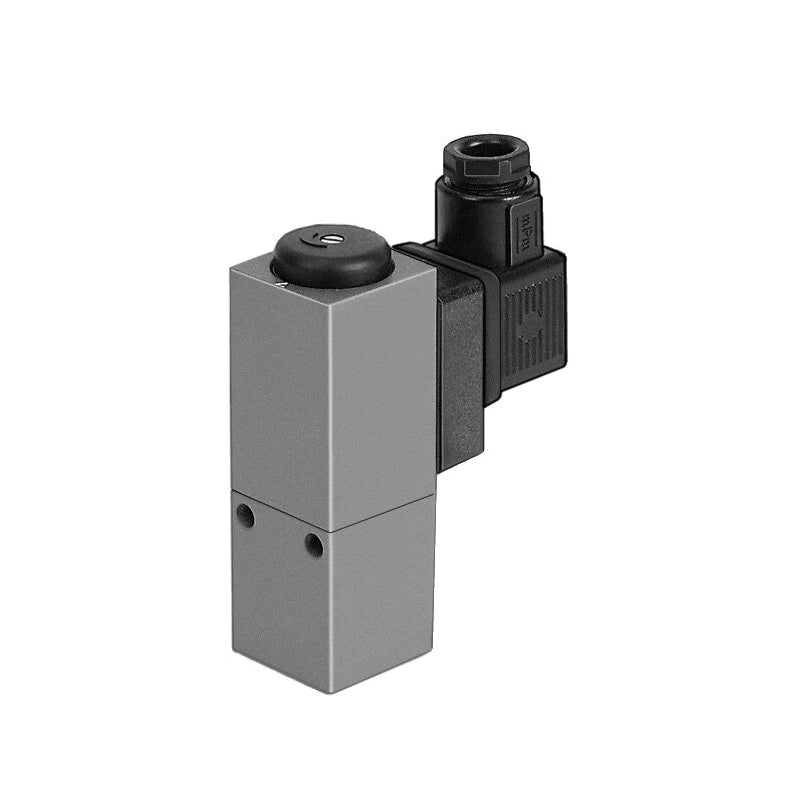

Vacuum switch
VPEV-1/8
150261
GTIN 4052568116460
Vendor Festo
Regular price
$243.22
Unit price
VPEV-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPEV-1/8
Regular price
$243.22
Unit price
VPEV-1/8 is backordered and will ship as soon as it is back in stock.
| Type code | VPEV |
|---|---|
| Conforms to standard | EN 60947-5-1 |
| Symbol | 991471 |
| Certification | CCC |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 22 (ATEX)Zone 21 (ATEX)Zone 2 (ATEX) |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer |
| Pressure measuring range | -1 bar ... 1.6 bar |
| Operating pressure | -1 bar ... 1.6 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 80 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Switching element function | Changeover switch |
| Max. switching frequency | 3 Hz |
| Max. switching output voltage AC | 250 V |
| Max. switching output voltage DC | 125 V |
| Max. output current | 5000 mA |
| Minimum load current | 10 mA at 10 V100 mA at 5V1 mA at 24 V |
| Utilization category for inductive load | AC-14DC-13 |
| Utilization category for ohmic load | DC-12AC-12 |
| Type of mounting | With through-hole |
| Mounting position | Any |
| Pneumatic connection | G1/8 |
| Product weight | 240 g |
| Housing material | Wrought aluminum alloy |
| Switching contact material | Silver |
| Switching status indication | LED yellow |
| Threshold value setting range | -0.95 bar ... -0.2 bar |
| Threshold value setting values after modification | 0.16 bar ... 1.6 bar |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
