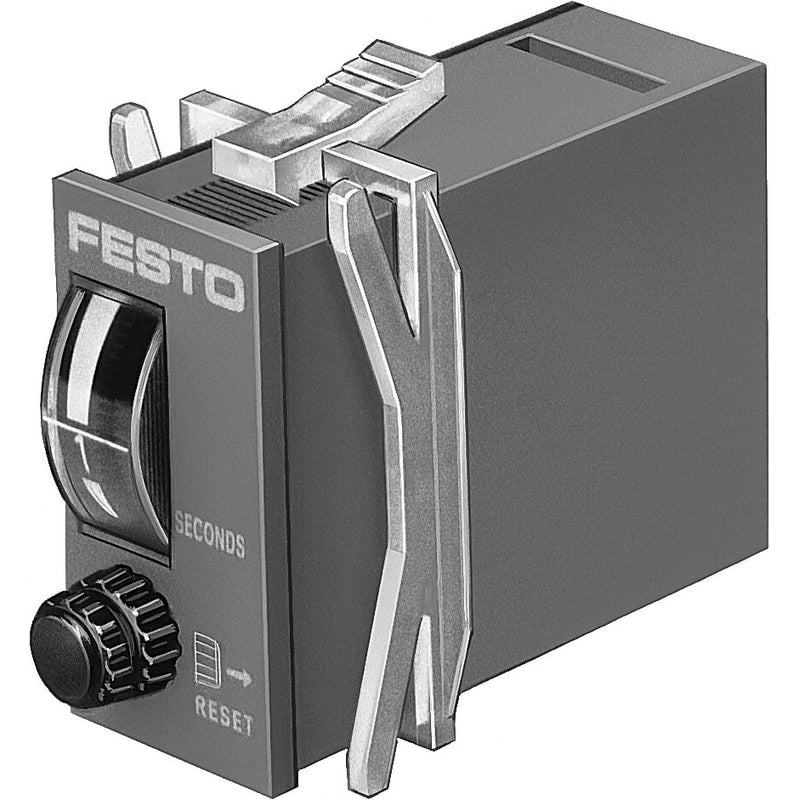

Timer
PZVT-300-SEC
150239
GTIN 4052568116453
Vendor Festo
Regular price
$579.11
Unit price
PZVT-300-SEC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PZVT-300-SEC
Regular price
$579.11
Unit price
PZVT-300-SEC is backordered and will ship as soon as it is back in stock.
| Type code | PZVT |
|---|---|
| Design | Mechanical sequence counter with pneumatic actuator |
| Switch-off pressure | ≤ 0.1 bar |
| Operating pressure | 2 bar ... 6 bar |
| Switch-on pressure | ≥ 1.6 bar |
| Standard nominal flow rate | 50 l/min |
| Adjustable delay time | 20 s ... 300 s |
| Setting accuracy | ± 6 s |
| Pause period for reset | ≥ 200 ms |
| Repetition accuracy of time setting | ± 3 s |
| Explosion prevention and protection | Zone 22 (ATEX)Zone 21 (ATEX)Zone 1 (ATEX)Zone 2 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Degree of protection | IP54as per IEC 60529With protective cap and panel frame |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 45 g |
| Type of mounting | Front panel mounting |
| Pneumatic connection | Internal thread M5 |
| Note on materials | RoHS-compliant |
| Housing material | ABS |
