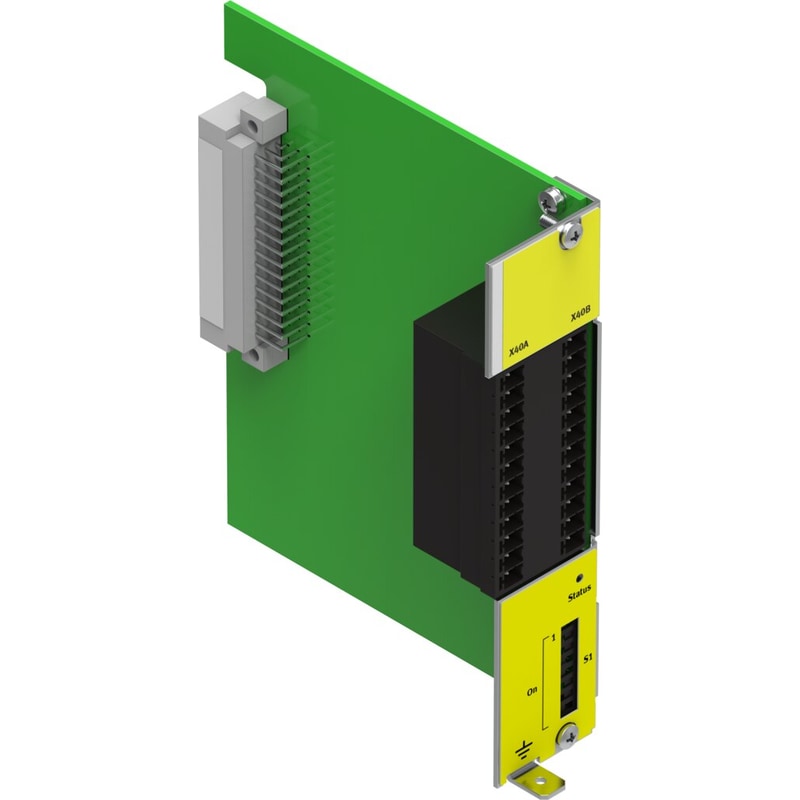

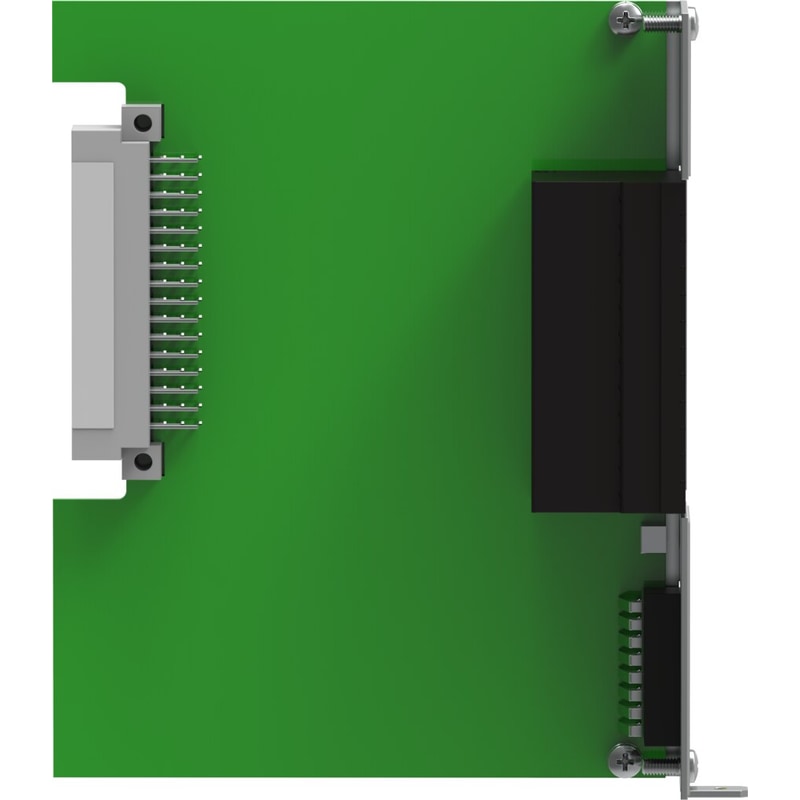

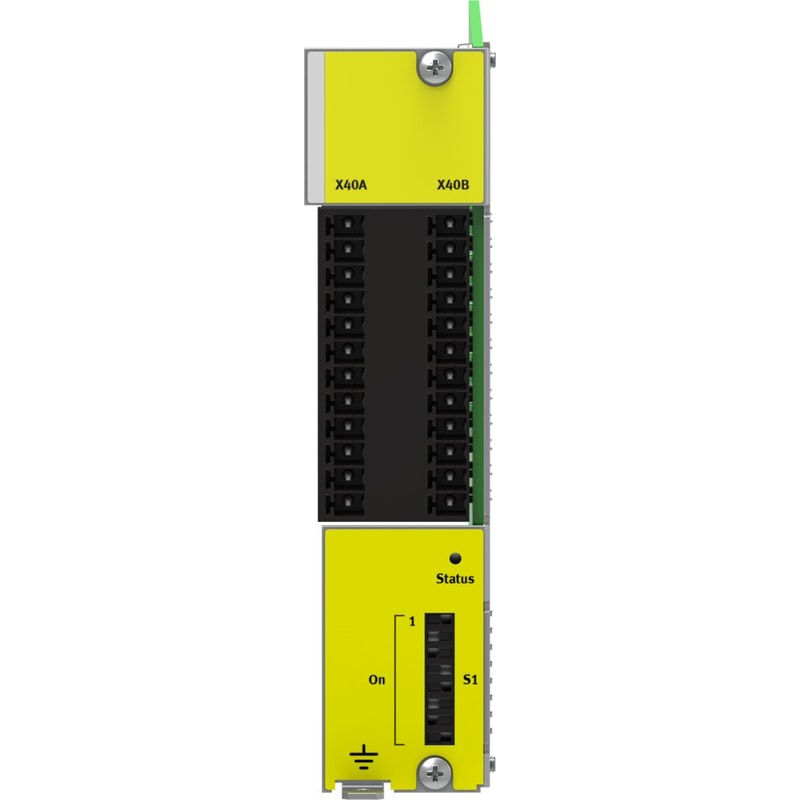

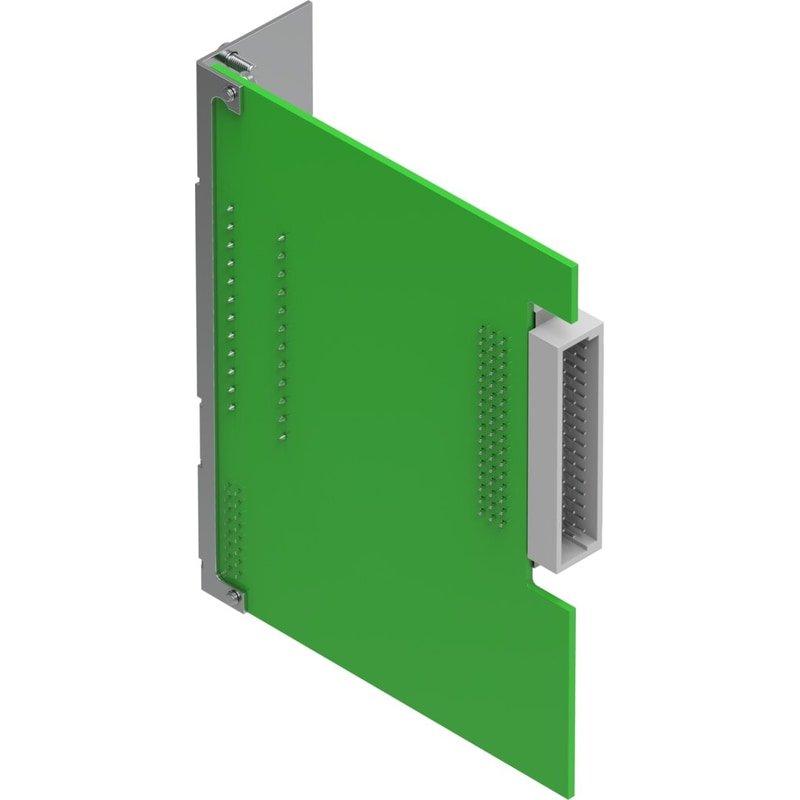

Safety module
CAMC-G-S3
1501331
GTIN 4052568237950
Vendor Festo
Regular price
$881.10
Unit price
CAMC-G-S3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CAMC-G-S3
Regular price
$881.10
Unit price
CAMC-G-S3 is backordered and will ship as soon as it is back in stock.
| Nominal voltage, logic supply DC | 24 V |
|---|---|
| Nominal operating voltage DC | 24 V |
| Nominal current, logic supply | 0.15 A |
| Permissible range of logic voltage | ± 20 % |
| Max. current consumption for logic supply without clamping brake | 0.2 A |
| Short-circuit protection | Yes, exception: C1/C2 contact |
| Current rating at 40°C | 0.2 A |
| Fuse protection (short circuit) | no |
| Digital output design | Floating signal contact3 safe, 2-channel semiconductor outputs |
| Number of digital logic inputs | 10 |
| Digital outputs, switching logic | Semiconductor outputs: parameterizable PNP (plus-switching), 2-channel, equivalent/antivalent |
| Dimensions W x L x H | 112.2 mm x 99.1 mm x 28.7 mm |
| LED display (product-specific) | Safe state (yellow)Fault (red)Normal operation (green) |
| Safety function | Safe torque off (STO)Safe speed range (SSR)Safely limited speed (SLS)Safe brake control (SBC)Safe speed monitor (SSM)Safe operating stop (SOS)Safe stop 1 (SS1)Safe stop 2 (SS2) |
| PFH | 0.0000000095 |
| Proof test interval | 20 y |
| Hardware fault tolerance | 1 |
| SFF safe failure fraction | 0.995 |
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in safety-related parts of control systems up to SIL 3, high demand |
| Safety integrity level (SIL) | Safe speed range (SSR)/SIL 3Safe brake control (SBC)/SIL 3Safe torque off (STO)/SIL 3Safely limited speed (SLS)/SIL 3Safe speed monitor (SSM)/SIL 3Safe stop 1 (SS1)/SIL 3Safe stop 2 (SS2)/SIL 3Safe operating stop (SOS)/SIL 3 |
| Performance Level (PL) | Safe brake control (SBC)/category 3, performance level eSafe operating stop (SOS)/category 4, performance level eSafely limited speed (SLS)/category 4, performance level eSafe stop 1 (SS1)/category 4, performance level eSafe torque off (STO)/category 4, performance level eSafe speed monitor (SSM)/category 4, performance level eSafe speed range (SSR)/category 4, performance level e |
| Diagnostic coverage | 0.975 |
| Certified for safety functions to ISO 13849 (PL) | Product can be used in safety-related parts of control systems up to category 4, PL e |
| Certification | German Technical Control Board (TÃœV) |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directive |
| Storage temperature | -25 °C ... 55 °C |
| Relative air humidity | 5 - 90 %Non-condensing |
| Degree of protection | In mounted stateIP20 |
| Ambient temperature | 0 °C ... 40 °C |
| Product weight | 220 g |
| Type of mounting | Plug-in module for CMMP-AS...-M3 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Mounting position | Any |
| Type code | CAMC |
| Wire ends | Cable end sleeve |
| Connection cross section | 0.25 mm² ... 0.5 mm² |
| Electrical connection | Plug, straightScrew terminal |
| Display | LED green/yellow/red |
| Control elements | DIL switch |
| Logic input specification | IEC 61131-2, type 3 |
| Characteristics of logic input | 4 safe 2-channel inputs, equivalent/antivalent switching, test pulses configurable, function configurable6 safe, 1-channel inputs, test pulses configurable |
| Work range of logic input | 13 V ... 28.8 V |
| Max. nominal input current | 0.015 A |
| Debounce time at inputs | 0.3 ms |
| Current rating per output | 50 mA |
| Max. current of digital logic outputs | 50 mA |
| Fuse protection for outputs | Short-circuit and cross-circuit monitoring |
| Minimum cycle time | 2 ms |
| Parameterization | Via SafetyTool |
