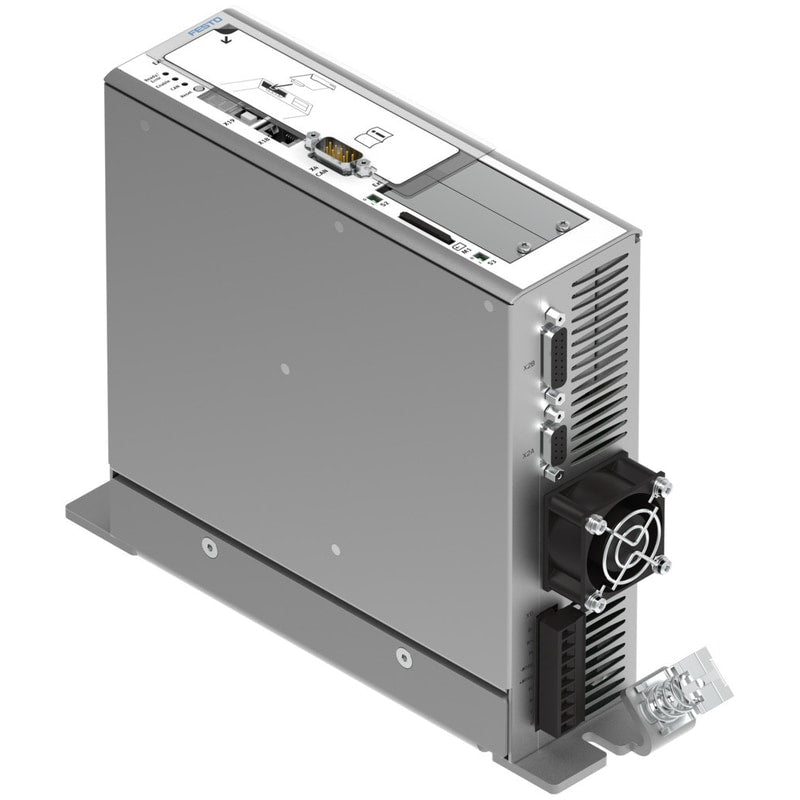

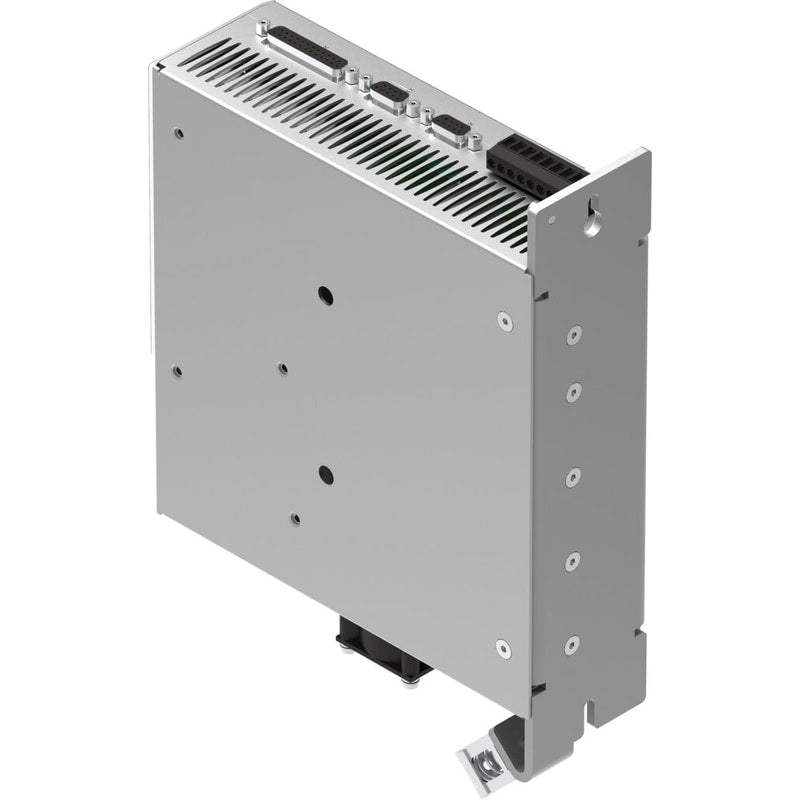

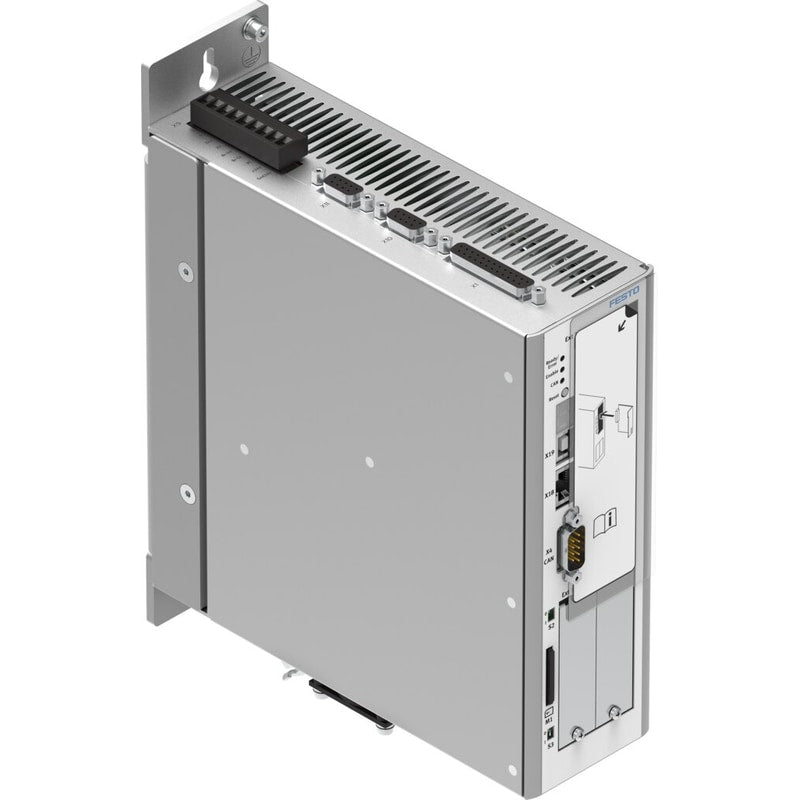

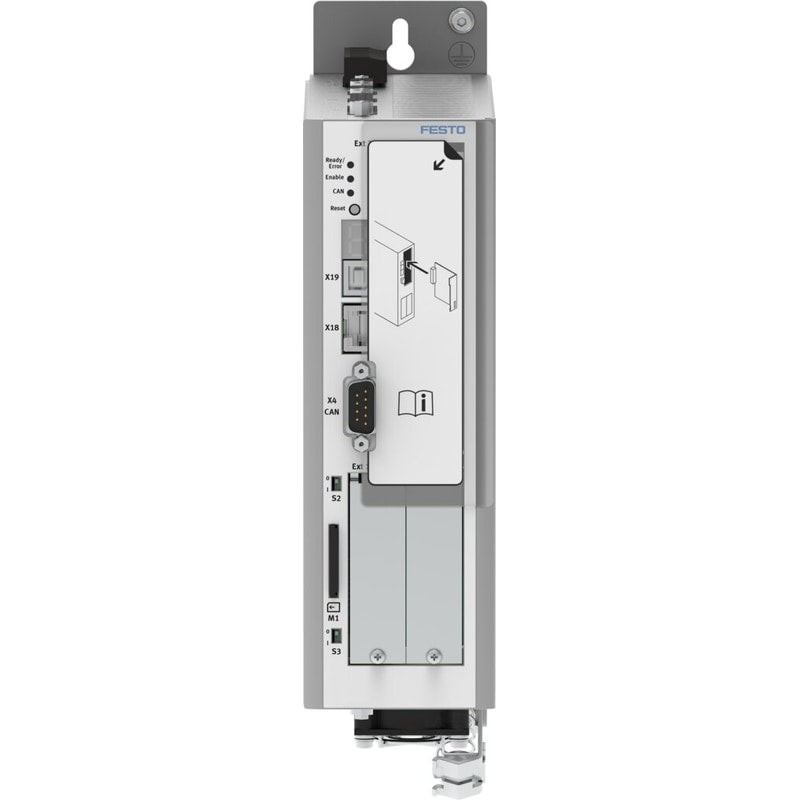

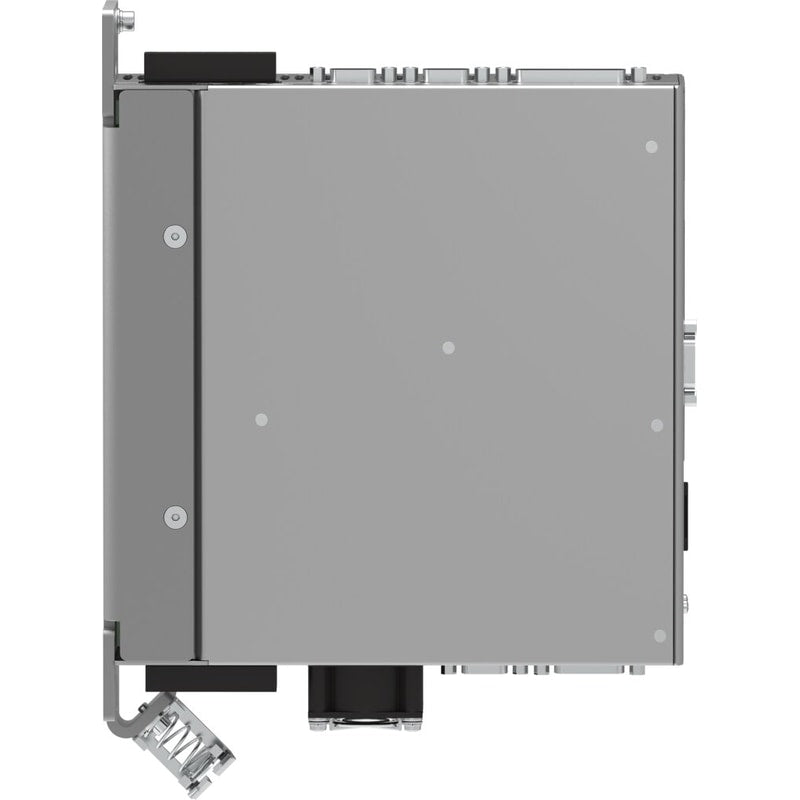

Motor controller
CMMP-AS-C5-3A-M3
1501326
GTIN 4052568237905
Vendor Festo
- Nominal current
- 4 A - 6 A
- Nominal operating voltage AC
- 230 V
- Nominal operating voltage phases
- 1-phase
- Controller nominal power
- 1000 VA
- Fieldbus coupling
- CANopen - DeviceNet - EtherCAT - EtherNet/IP - Modbus®/TCP - PROFINET - Profibus DP
Regular price
$2,169.92
Unit price
CMMP-AS-C5-3A-M3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMMP-AS-C5-3A-M3
Regular price
$2,169.92
Unit price
CMMP-AS-C5-3A-M3 is backordered and will ship as soon as it is back in stock.
| Type code | CMMP-AS |
|---|---|
| Line filter | Integrated |
| Display | Seven-segment display |
| Output frequency | 0 Hz ... 1000 Hz |
| Output voltage range AC | 3x 0 - 270 V |
| Braking resistor | 60 Ohm |
| Characteristics of digital logic outputs | Freely configurable in some casesGalvanically isolated |
| Impedance of setpoint input | 20 kOhm |
| Pulse power of braking resistor | 2.8 kVA |
| Max. current of digital logic outputs | 100 mA |
| Max. peak current duration | 5 s |
| Max. DC link voltage | 320 V |
| Nominal output current | 0.208333333333333 |
| Nominal operating voltage AC | 230 V |
| Controller nominal power | 1000 VA |
| Nominal voltage, logic supply DC | 24 V |
| Nominal current | 4 A ... 6 A |
| Nominal current per phase, effective | 0.208333333333333 |
| Mains frequency | 50 Hz ... 60 Hz |
| Parameterization interface | Parameterization and commissioningEthernetUSB |
| Nominal operating voltage phases | 1-phase |
| Peak power | 2000 VA |
| Peak current per phase, effective | 0.416666666666667 |
| Contamination level | 2 |
| Permissible range of logic voltage | ± 20 % |
| Permissible voltage fluctuations | +/- 10 % |
| CE marking (see declaration of conformity) | as per EU machinery directiveAs per EU EMC directiveAs per EU low voltage directive |
| Storage temperature | -25 °C ... 70 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP10IP20 |
| Ambient temperature | 0 °C ... 40 °C |
| Certification | RCM compliance markc UL us - Listed (OL) |
| Product weight | 2200 g |
| Number of analog monitor outputs | 2 |
| Number of analog setpoint inputs | 2 |
| Number of digital logic outputs 24Â VÂ DC | 5 |
| Number of digital logic inputs | 10 |
| Communication profile | FHPPDS301/DSP402 |
| Process interfacing | I/O couplingFor 256 positioning blocks |
| Work range of logic input | 8 V ... 30 V |
| Working range of monitor outputs | ± 10 V |
| Work range of setpoint input | ± 10 V |
| Resolution of monitor outputs | 9 bit |
| Encoder interface output, characteristics | Resolution 16384 ppr |
| Encoder interface input, characteristics | EnDat®HIPERFACERS422SINCOS3-phase encoder signals |
| Characteristics of monitor outputs | Short circuit-proof |
| Characteristics of setpoint inputs | Configurable for rotational speedConfigurable for currentDifferential inputs |
| Characteristics of logic input | Freely configurableGalvanically isolated |
| Output encoder interface, function | Actual value feedback via encoder signals in speed control mode.Setpoint specification for downstream slave actuator. |
| Input encoder interface, function | As speed setting of the slave actuator in synchronous mode.Encoder signal speed setpoint value. |
| Bus connection | 9-pinSub-DPlug |
| Fieldbus coupling | Modbus®/TCPCANopenEtherNet/IPProfibus DPDeviceNetPROFINETEtherCAT |
| Max. fieldbus transmission rate | 1 Mbit/s |
| Type of mounting | Screwed tightlyOn sub-base |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
