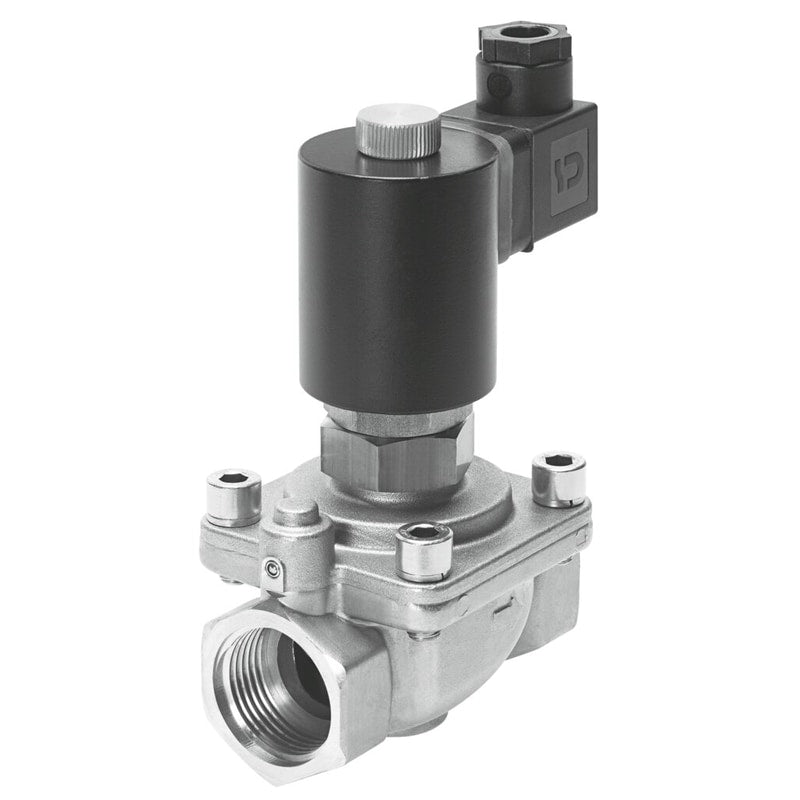

Air solenoid valve
VZWF-L-M22C-N2-500-3AP4-6
1492357
GTIN 4052568237486
Vendor Festo
- Structural design
- Force pilot operated
- Flow rate Kv
- 28 m³/h
- Fitting connection
- 2 NPT
- Actuation type
- Electrical
Regular price
$1,111.16
Unit price
VZWF-L-M22C-N2-500-3AP4-6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWF-L-M22C-N2-500-3AP4-6
Regular price
$1,111.16
Unit price
VZWF-L-M22C-N2-500-3AP4-6 is backordered and will ship as soon as it is back in stock.
| Type code | VZWF |
|---|---|
| Design | Diaphragm valveForce pilot operated |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Magnet, upright |
| Type of mounting | Line installation |
| Fitting connection | 2 NPT |
| Electrical connection | Form APlugRectangular designas per EN 175301-803 |
| Nominal width | 50 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air as per ISO 8573-1:2010 [7:-:-]WaterMineral oilInert gasOther flow media on requestNeutral liquids |
| Nominal pressure of fitting PN | 40 |
| Differential pressure | 0 bar |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA |
| Permissible voltage fluctuations | +/- 10 % |
| Symbol | 992976 |
| Medium pressure | 0 bar ... 6 bar |
| Max. viscosity | 22 mm²/s |
| Temperature of medium | -10 °C ... 80 °C |
| Ambient temperature | -10 °C ... 35 °C |
| Leak rate to EN 12266-1 | A |
| Standard nominal flow rate | 29900 l/min |
| On switching time | 1220 ms |
| Switching time off | 2140 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Cast brass |
| Material number of housing | CW617N |
| Seals material | NBR |
| Material of screws | High-alloy stainless steel |
| Material number of screw | 1.4301 |
| Product weight | 6500 g |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | As per EU low voltage directiveas per EU pressure equipment directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
