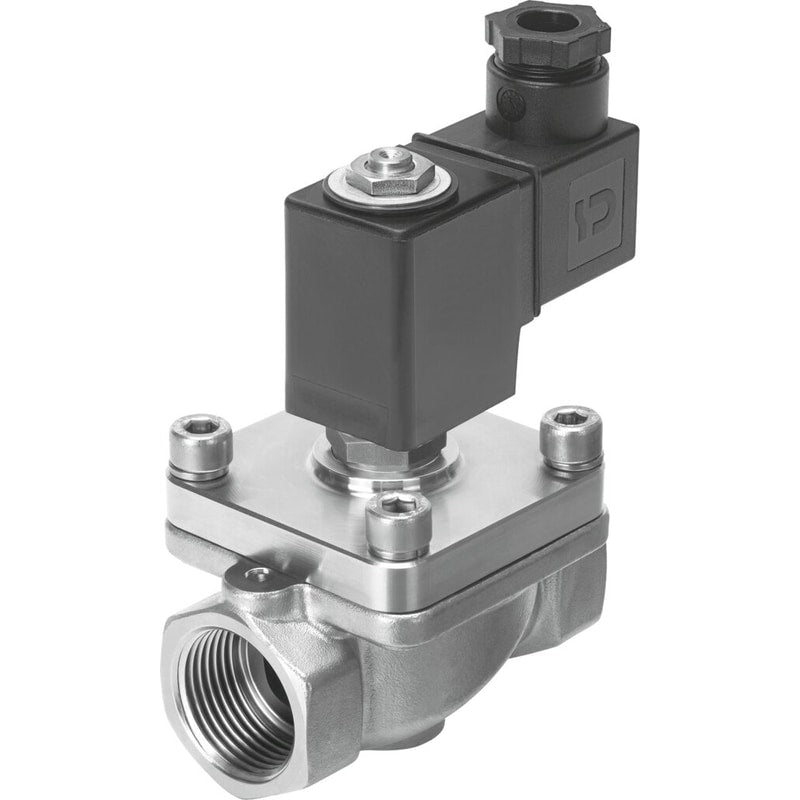

Air solenoid valve
VZWF-B-L-M22C-N1-275-2AP4-6-R1
1492266
GTIN 4052568236632
Vendor Festo
- Structural design
- Force pilot operated
- Flow rate Kv
- 11 m³/h
- Fitting connection
- 1 NPT
- Actuation type
- Electrical
Regular price
$423.77
Unit price
VZWF-B-L-M22C-N1-275-2AP4-6-R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWF-B-L-M22C-N1-275-2AP4-6-R1
Regular price
$423.77
Unit price
VZWF-B-L-M22C-N1-275-2AP4-6-R1 is backordered and will ship as soon as it is back in stock.
| Type code | VZWF |
|---|---|
| Design | Diaphragm valveForce pilot operated |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Magnet, upright |
| Type of mounting | Line installation |
| Fitting connection | 1 NPT |
| Electrical connection | as per EN 175301-803PlugRectangular designForm A |
| Nominal width | 27.5 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Inert gasMineral oilNeutral liquidsOther flow media on requestCompressed air as per ISO 8573-1:2010 [7:-:-]Water |
| Nominal pressure of fitting PN | 40 |
| Differential pressure | 0 bar |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 19.0 VA, holding power 16.0 VA |
| Permissible voltage fluctuations | +/- 10 % |
| Symbol | 992976 |
| Medium pressure | 0 bar ... 6 bar |
| Max. viscosity | 22 mm²/s |
| Temperature of medium | -10 °C ... 80 °C |
| Ambient temperature | -10 °C ... 35 °C |
| Leak rate to EN 12266-1 | A |
| Standard nominal flow rate | 11750 l/min |
| On switching time | 275 ms |
| Switching time off | 290 ms |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4581 |
| Seals material | NBR |
| Material of screws | High-alloy stainless steel |
| Material number of screw | 1.4301 |
| Product weight | 1500 g |
| Degree of protection | IP65 |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
