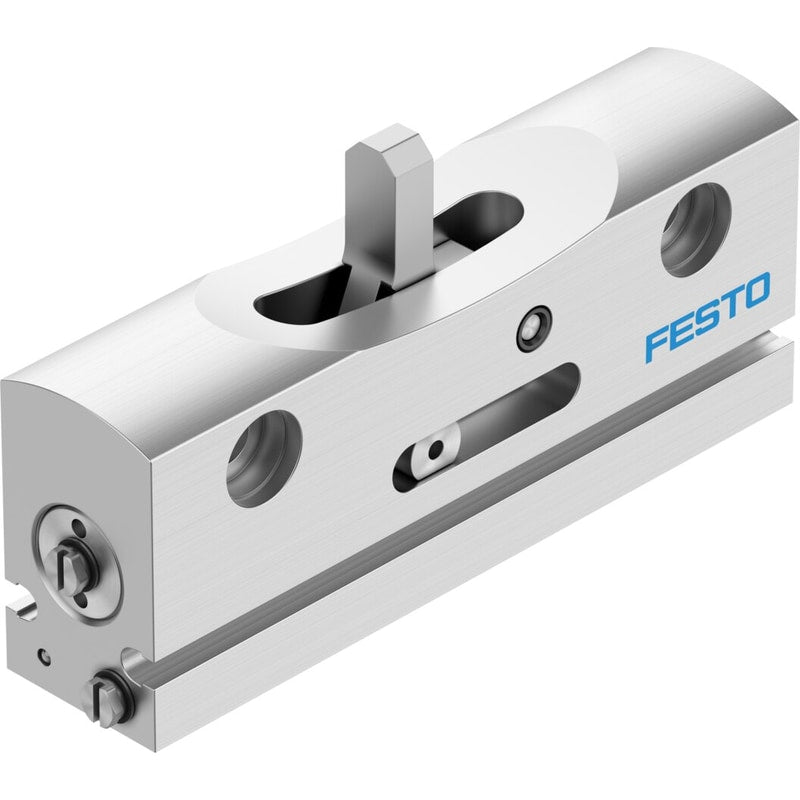

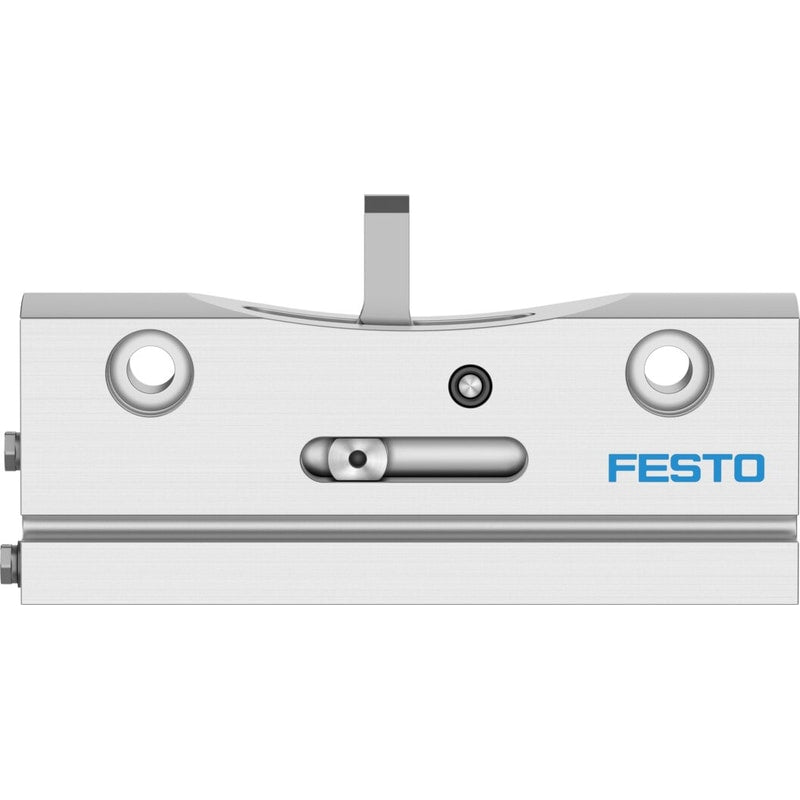

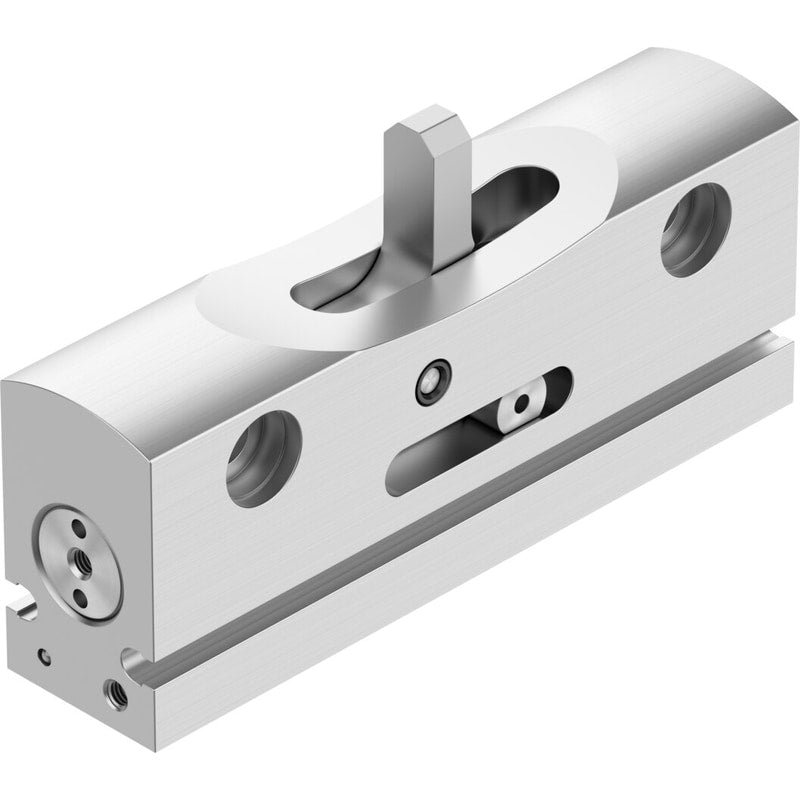

Intermediate position module
DADM-EP-G6-10
1492072
GTIN 4052568263539
Vendor Festo
Regular price
$609.47
Unit price
DADM-EP-G6-10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADM-EP-G6-10
Regular price
$609.47
Unit price
DADM-EP-G6-10 is backordered and will ship as soon as it is back in stock.
| Size | 10 |
|---|---|
| Type code | DADM |
| Mounting position | Any |
| Design | Positively driven motion sequence |
| Position sensing | For proximity sensor |
| Symbol | 991270 |
| Operating pressure | 3 bar ... 6 bar |
| Max. impact velocity | 0.8 m/s |
| Maximum pivot time | 150 ms |
| Repetition accuracy | ±0.02 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | 0 °C ... 60 °C |
| Max. stop force | 500 N |
| Product weight | 154 g |
| Type of mounting | Via through-hole and centering sleeve |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Seals material | PU |
| Housing material | Wrought aluminum alloy |
| Lever material | High-alloy stainless steel |
