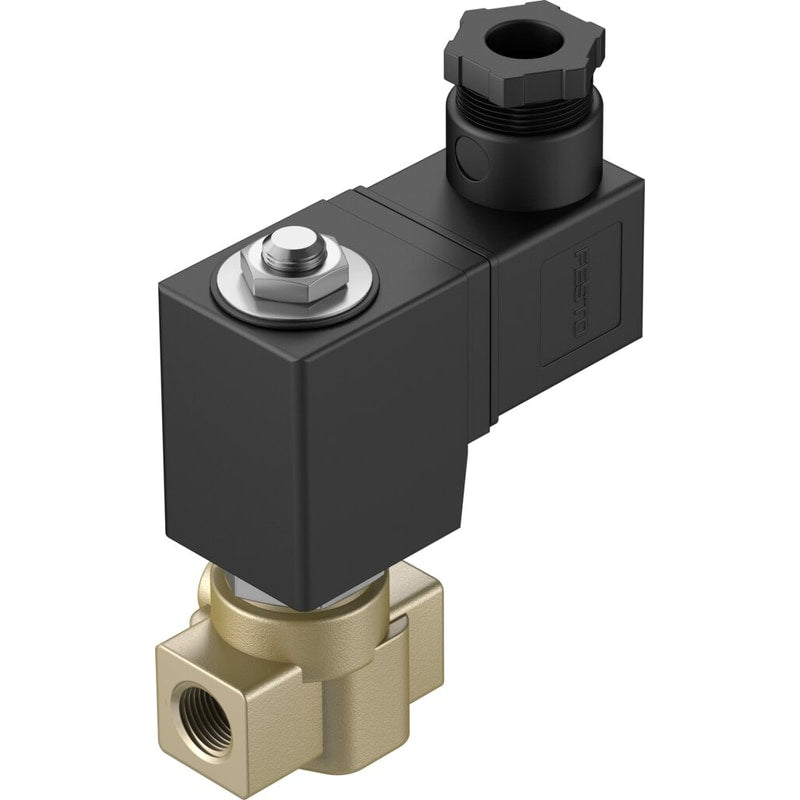

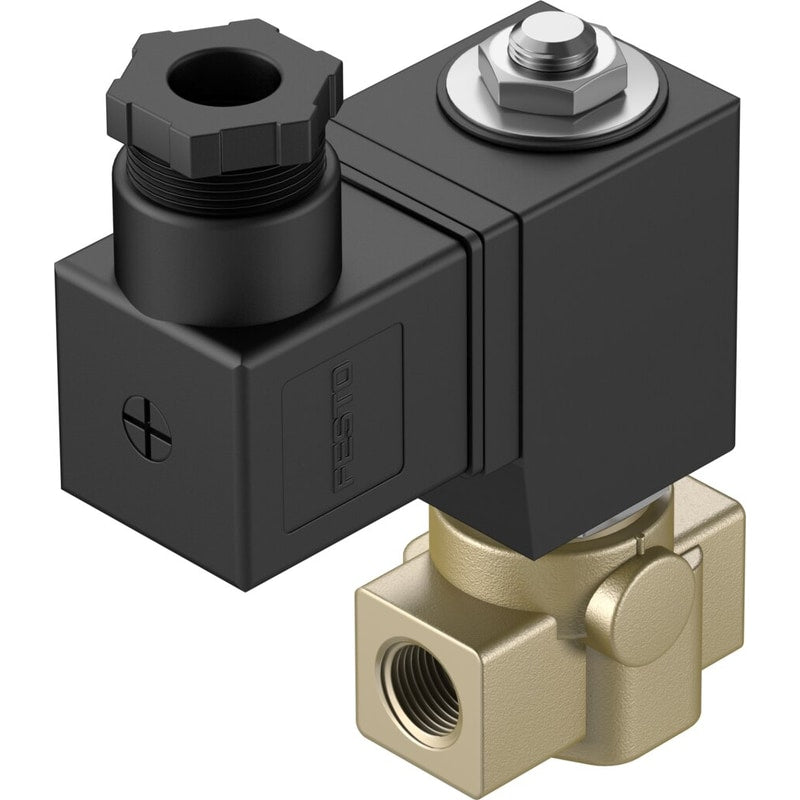

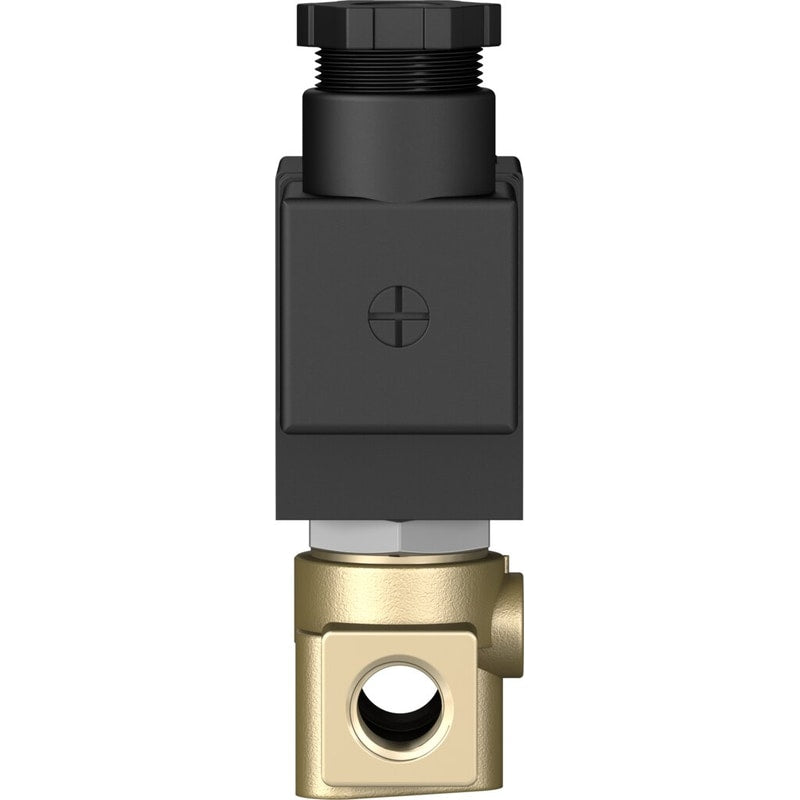

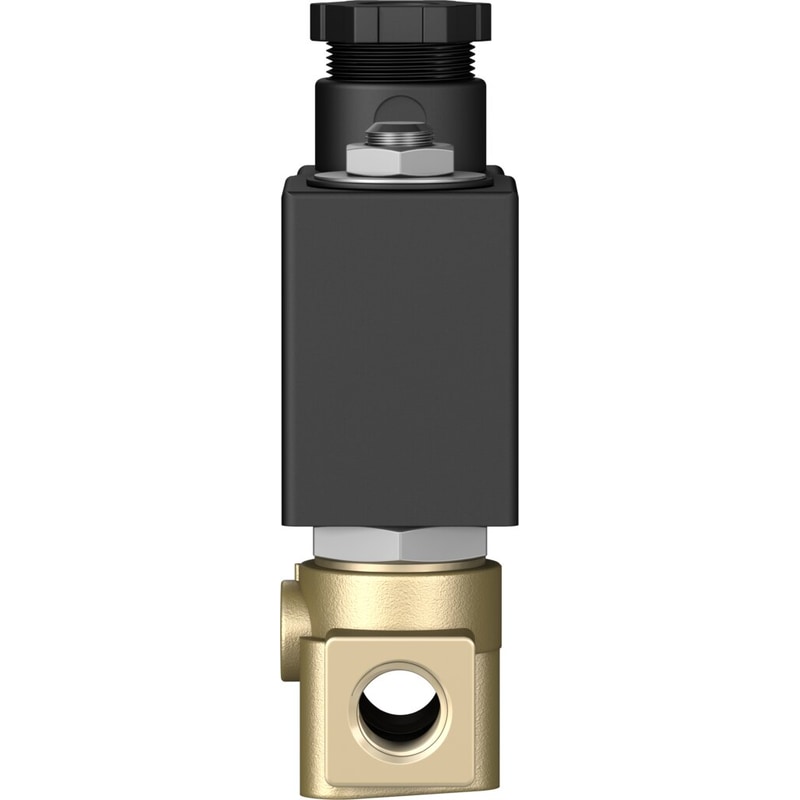

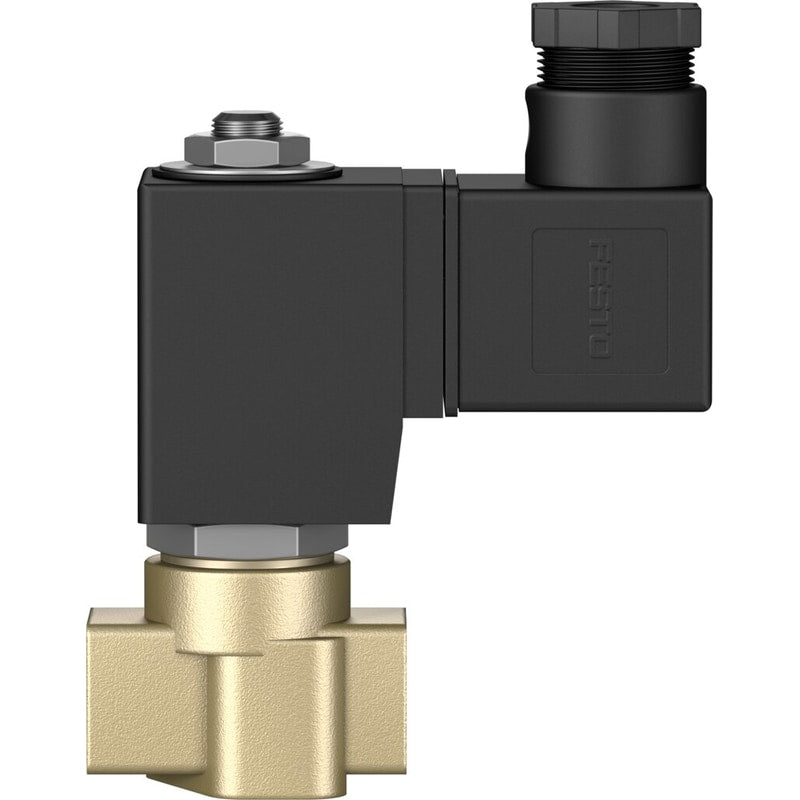

Air solenoid valve
VZWD-L-M22C-M-G18-30-V-1P4-15
1491836
GTIN 4052568106348
Vendor Festo
- Structural design
- Directly controlled poppet valve
- Flow rate Kv
- 0.2 m³/h
- Fitting connection
- G1/8
- Actuation type
- Electrical
Regular price
$113.17
Unit price
VZWD-L-M22C-M-G18-30-V-1P4-15 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWD-L-M22C-M-G18-30-V-1P4-15
Regular price
$113.17
Unit price
VZWD-L-M22C-M-G18-30-V-1P4-15 is backordered and will ship as soon as it is back in stock.
| Type code | VZWD |
|---|---|
| Design | Directly controlled poppet valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | G1/8 |
| Electrical connection | Plugas per EN 175301-803Form ARectangular design |
| Nominal width | 3 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Other flow media on requestNeutral liquidsInert gasCompressed air as per ISO 8573-1:2010 [7:4:4]Mineral oilWater |
| Nominal pressure of fitting PN | 100 |
| Differential pressure | 0 bar |
| Coil characteristics | 24 V DC: 11.0 W |
| Insulation class | H |
| Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 1 |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Symbol | 992979 |
| Medium pressure | 0 bar ... 15 bar |
| Temperature of medium | -10 °C ... 80 °C |
| Ambient temperature | -10 °C ... 35 °C |
| Leak rate to EN 12266-1 | A |
| Flow rate Kv | 0.2 m³/h |
| Standard nominal flow rate | 210 l/min |
| On switching time | 20 ms |
| Switching time off | 18 ms |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | Cast brass |
| Material number of housing | CW617N |
| Seals material | FPM |
| Product weight | 550 g |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
