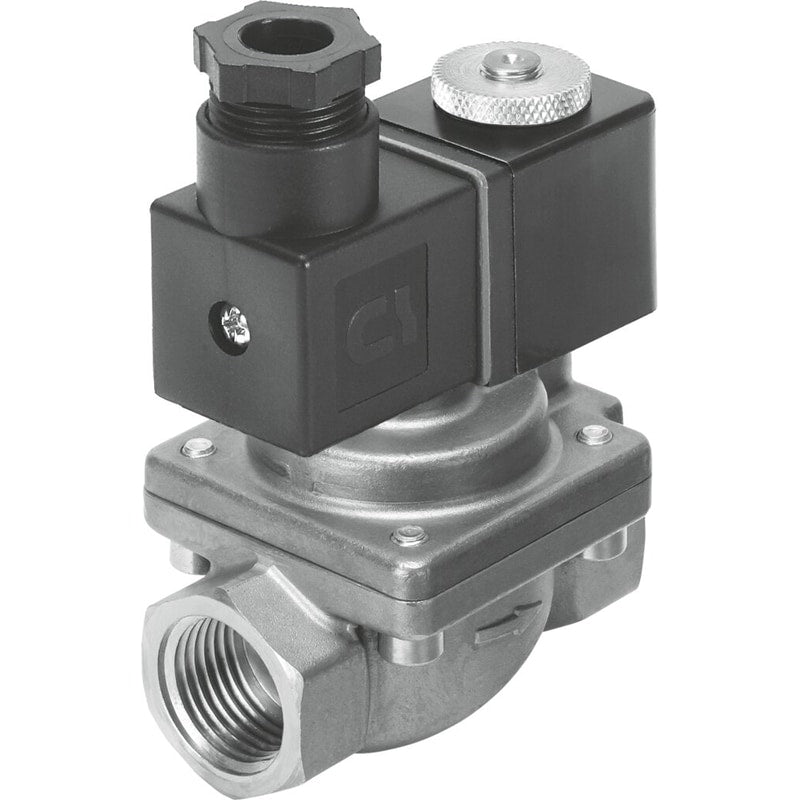

Air solenoid valve
VZWP-L-M22C-G38-130-V-1P4-40
1489946
GTIN 4052568233693
Vendor Festo
- Structural design
- Pilot-controlled piston poppet valve
- Flow rate Kv
- 2 m³/h
- Fitting connection
- G3/8
- Actuation type
- Electrical
Regular price
$341.05
Unit price
VZWP-L-M22C-G38-130-V-1P4-40 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZWP-L-M22C-G38-130-V-1P4-40
Regular price
$341.05
Unit price
VZWP-L-M22C-G38-130-V-1P4-40 is backordered and will ship as soon as it is back in stock.
| Type code | VZWP |
|---|---|
| Design | Pilot-controlled piston poppet valve |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Coil preferably on top |
| Type of mounting | Line installation |
| Fitting connection | G3/8 |
| Electrical connection | Form APlugRectangular designas per EN 175301-803 |
| Nominal width | 13 mm |
| Valve function | 2/2, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Neutral liquidsOther flow media on requestInert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal pressure of fitting PN | 40 |
| Differential pressure | 0.5 bar |
| Coil characteristics | 24 V DC: 6.8 W |
| Insulation class | H |
| Permissible voltage fluctuations | +/- 10 % |
| Duty cycle | 1 |
| Type of control | Pilot-controlled |
| Symbol | 992974 |
| Medium pressure | 0.5 bar ... 40 bar |
| Max. viscosity | 22 mm²/s |
| Ambient temperature | -10 °C ... 35 °C |
| Leak rate to EN 12266-1 | A |
| Flow rate Kv | 2 m³/h |
| Standard nominal flow rate | 2100 l/min |
| On switching time | 100 ms |
| Switching time off | 250 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Cast brass |
| Material number of housing | CW617N |
| Seals material | FPM |
| Material of screws | High-alloy stainless steel |
| Material number of screw | 1.4301 |
| Product weight | 575 g |
| Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
