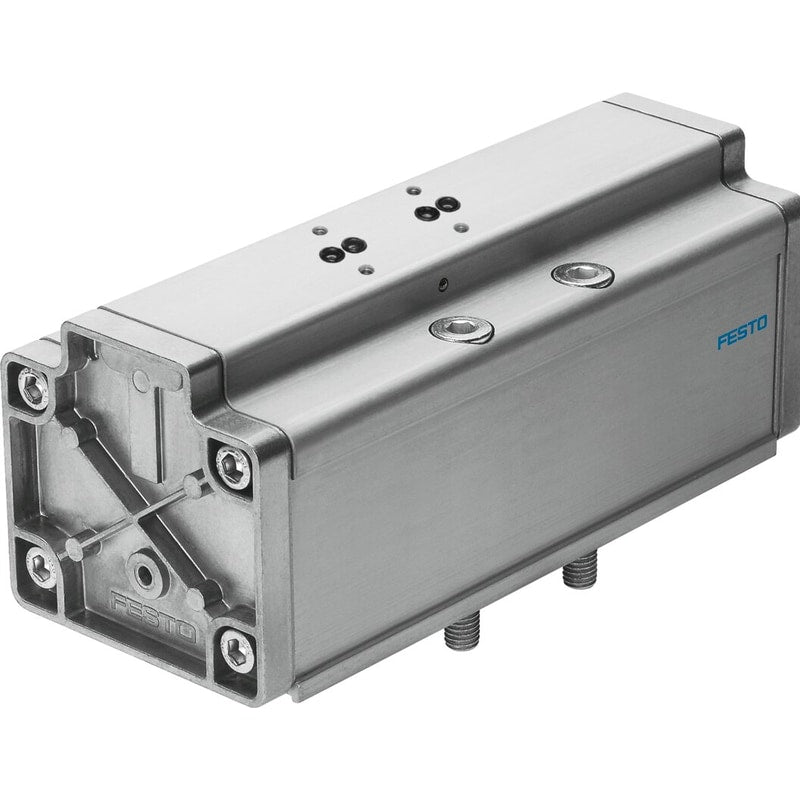

Air solenoid valve
JMDH-5/2-3/4-D-4
14545
GTIN 4052568112523
Vendor Festo

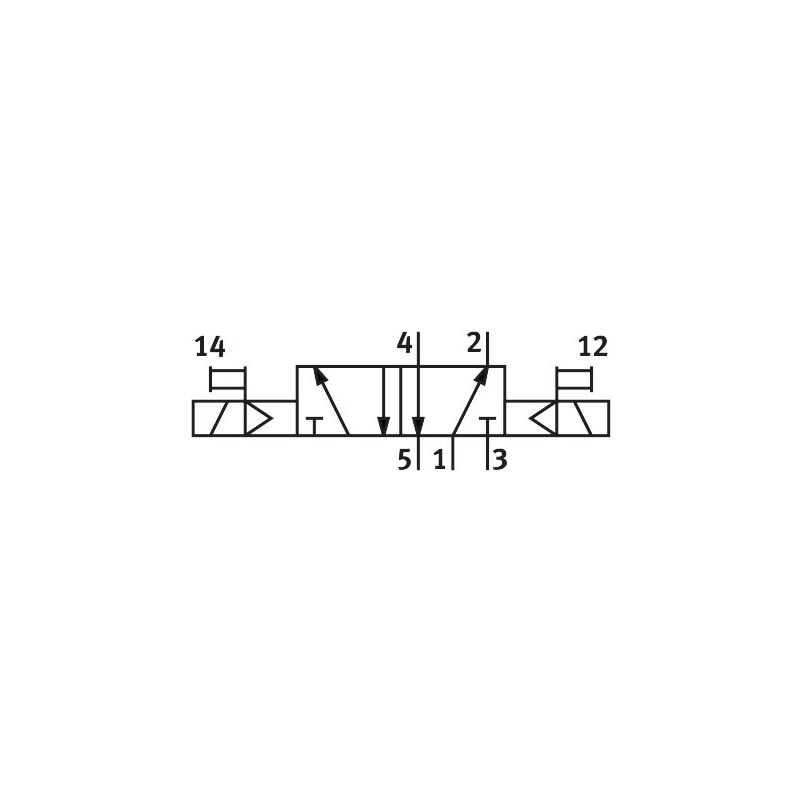

- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 6000 l/min
- Pneumatic connection 1
- Sub-base, size 4 as per ISO 5599-1
- Actuation type
- Electrical
Regular price
$949.29
Unit price
JMDH-5/2-3/4-D-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JMDH-5/2-3/4-D-4
Regular price
$949.29
Unit price
JMDH-5/2-3/4-D-4 is backordered and will ship as soon as it is back in stock.
solenoid valve JMDH-5/2-3/4-D-4 Without pilot valve or manual override, without plug socket Valve function=5/2 bistable, Type of actuation=electrical, Width=76 mm, Standard nominal flow rate=6000 l/min, Operating pressure=2 - 16 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 76 mm |
| Standard nominal flow rate | 6,000 l/min |
| Operating pressure | 2 ... 16 bar |
| Design structure | Piston slide |
| Protection class | IP65 |
| Nominal size | 18 mm |
| Grid dimension | 82 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | ISO 5599-1 |
