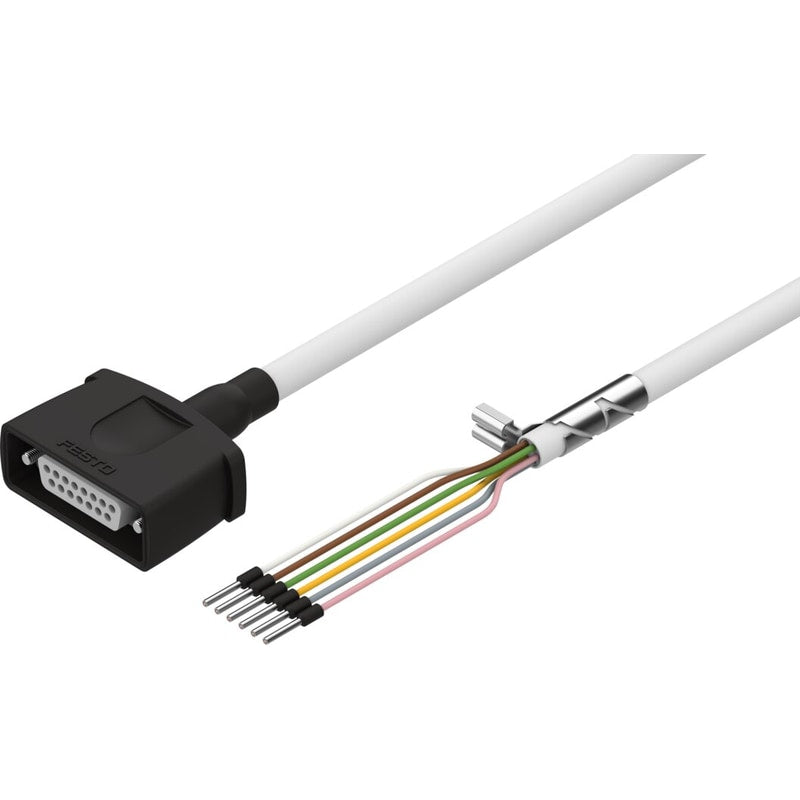

Motor cable
NEBM-S1G15-E-10-Q7-LE6
1450838
GTIN 4052568232894
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 10 m
Regular price
$260.54
Unit price
NEBM-S1G15-E-10-Q7-LE6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-S1G15-E-10-Q7-LE6
Regular price
$260.54
Unit price
NEBM-S1G15-E-10-Q7-LE6 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | Sub-D |
| Electrical connection 1, number of pins/wires | 15 |
| Electrical connection 1, occupied pins/wires | 10 |
| Electrical connection for input 1, connection pattern | 995640 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 6 |
| Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0 V ... 72 V |
| Nominal operating voltage DC | 24 V |
| Cable length | 10 m |
| Cable characteristic | Suitable for energy chains |
| Bending radius, flexible cable installation | ≥ 80 mm |
| Cable diameter | 8 mm |
| Cable design | 6 x 0.75 mm²Shielded |
| Nominal conductor cross section | 0.75 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Insulating sheath material | PP |
