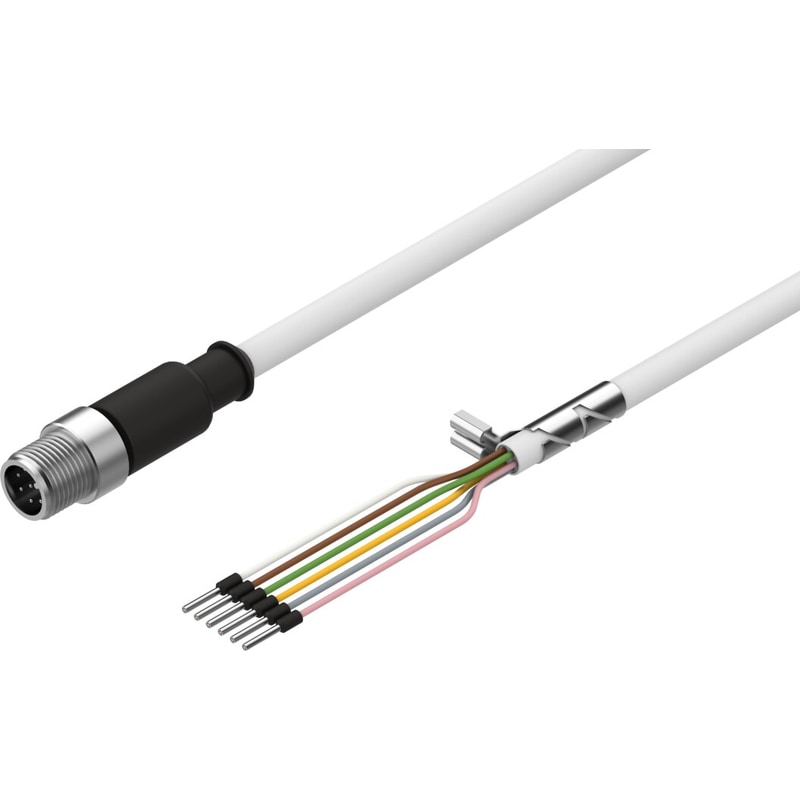

NEBM-SM12G8-E-2.5-Q5-LE6
1449601
Vendor Festo
Regular price
$100.54
Unit price
NEBM-SM12G8-E-2.5-Q5-LE6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-SM12G8-E-2.5-Q5-LE6
Regular price
$100.54
Unit price
NEBM-SM12G8-E-2.5-Q5-LE6 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Cable designation | Without label holder |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 6 |
| Electrical connection for input 1, connection pattern | 992264 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 6 |
| Electrical connection 2, occupied pins/wires | 6 |
| DC operating voltage range | 0 V ... 72 V |
| Nominal operating voltage DC | 24 V |
| Cable length | 2.5 m |
| Cable characteristic | Suitable for energy chains |
| Bending radius, flexible cable installation | ≥ 62 mm |
| Cable diameter | 6.2 mm |
| Cable design | 6 x 0.34 mm²Shielded |
| Nominal conductor cross section | 0.34 mm² |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -40 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Note on materials | RoHS-compliant |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
